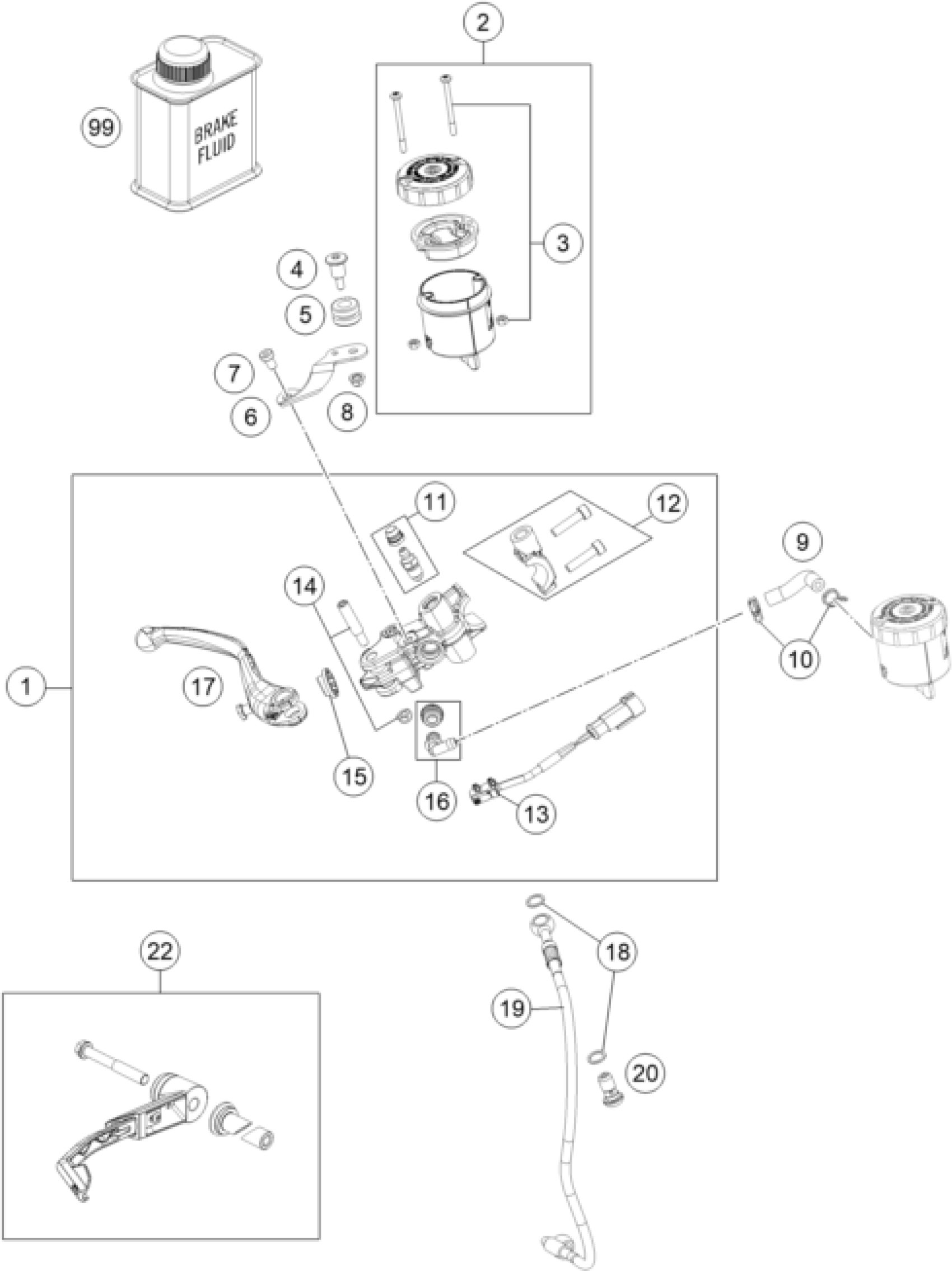

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYL. PR16/19

6131300100030

Unavailable

3

SCREW + NUT F. RESERVOIR

61013009203

Unavailable

4

SCREW RET.PANEL-RESERVOIR

61013013050

Unavailable

5

RUBBER BUSH 05

61013013000

Unavailable

6

SUPPORT BRAKE FLUID RES. FRONT

6101300900130

Unavailable

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

Unavailable

8

NUT FOR RESERVOIR

61013009004

Unavailable

9

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

11

BLEEDER SCREW WITH CAP

60013020000

Unavailable

12

CLAMP CPL.

76013005000

Unavailable

13

BRAKE LIGHT SWITCH FRONT

61311050000

Unavailable

14

LEVER SCREW CPL. 05

61013006000

Unavailable

15

RUBBER CUP 05

61013008000

Unavailable

16

ANGLE PIECE

54513155000

Unavailable

17

HAND BRAKE LEVER LOOSE BLACK

6101300200030

Unavailable

18

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

19

BRAKE HOSE HAND BRAKE CYLINDER

61342001000

Unavailable

20

banjo bolt M10x1x19.5

62113020100

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

22

BRAKE LEVER GUARD

61313932144

Unavailable

2

BRAKE FLUID RESERV. BLACK CPL.

61313029000

Unavailable
