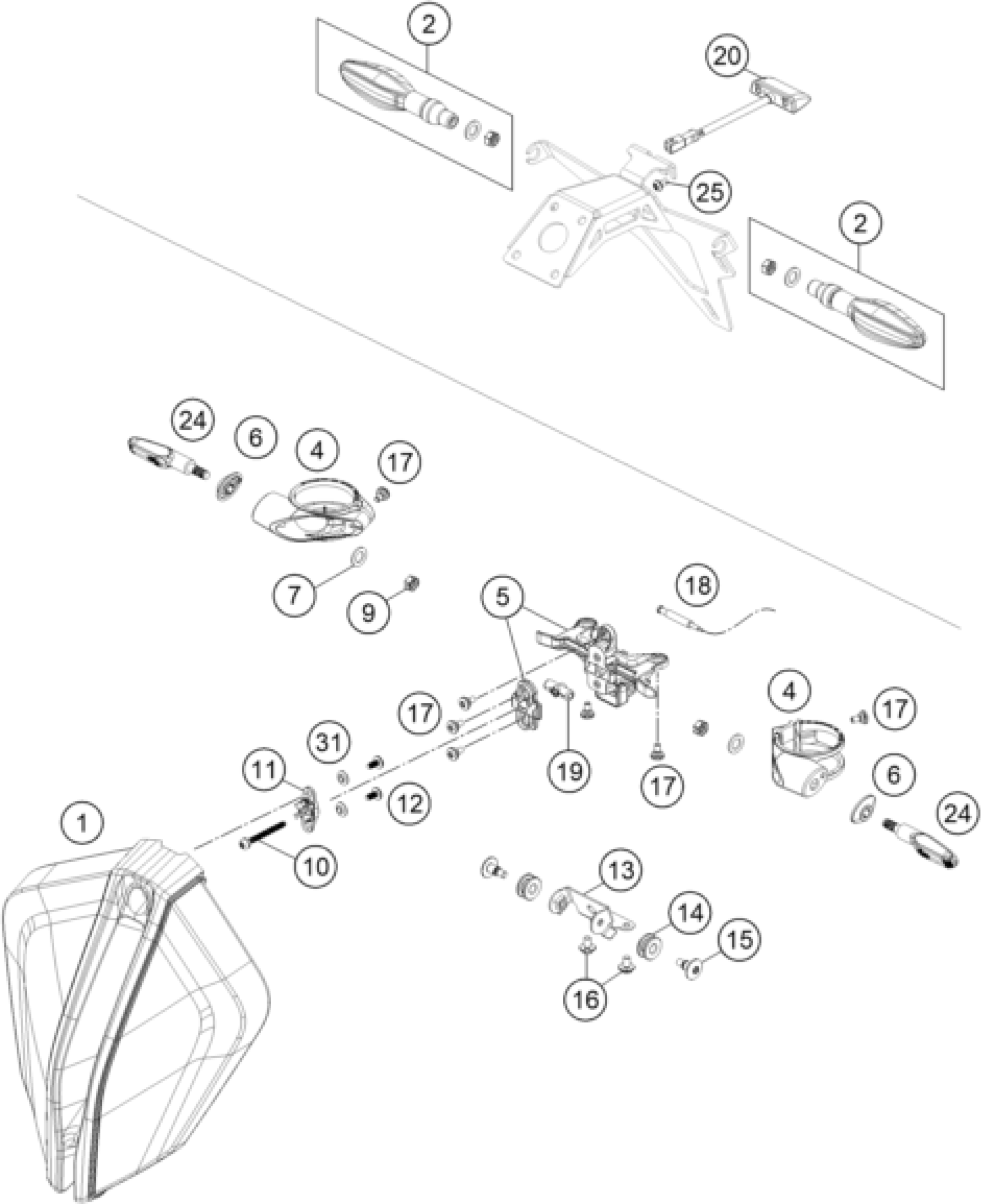

KTM 1290 SUPER DUKE RR 2021 LIGHTING SYSTEM Diagram

#

Description

Price

1

LED headlight ECE

61714001100

Unavailable

2

combined turn signal left/righ

61714125000

Unavailable

4

Turn signal bracket front

61714035000

Unavailable

5

Fixation-Set Headlight SD-R 2

61714001030

Unavailable

7

washer DIN 125 A -8.4

0125080003

Unavailable

9

Nut M8x6.4 A2 slotted

09100008006U0

Unavailable

10

EJOT PT SCHRAUBE 50X54

61614020010

Unavailable

11

Ballhead holder

61614020100

Unavailable

12

EJOT ALTRACS 50X12

61614018100

Unavailable

13

Fixing sheet headlight bottom

61714001041C1

Unavailable

14

Rubber grommet

61614013150

Unavailable

15

Special screw M6x19

0900000601900

Unavailable

16

HH collar screw M6x10 TX30

0025060106

Unavailable

17

special screw M5x12

69008021160

Unavailable

18

Temperatur sensor

61111018100

Unavailable

19

Screwshaft

61614019100

Unavailable

20

License plate lighting

61914047000

Unavailable

24

turn signal front left / rear

61714130000

Unavailable

31

Bush 13X7X3.3

61412032010

Unavailable

25

Oval-head screw ISR M4x8-A2-07

0738010400800

Unavailable

6

Turn signal adapter

61714025010

Unavailable
