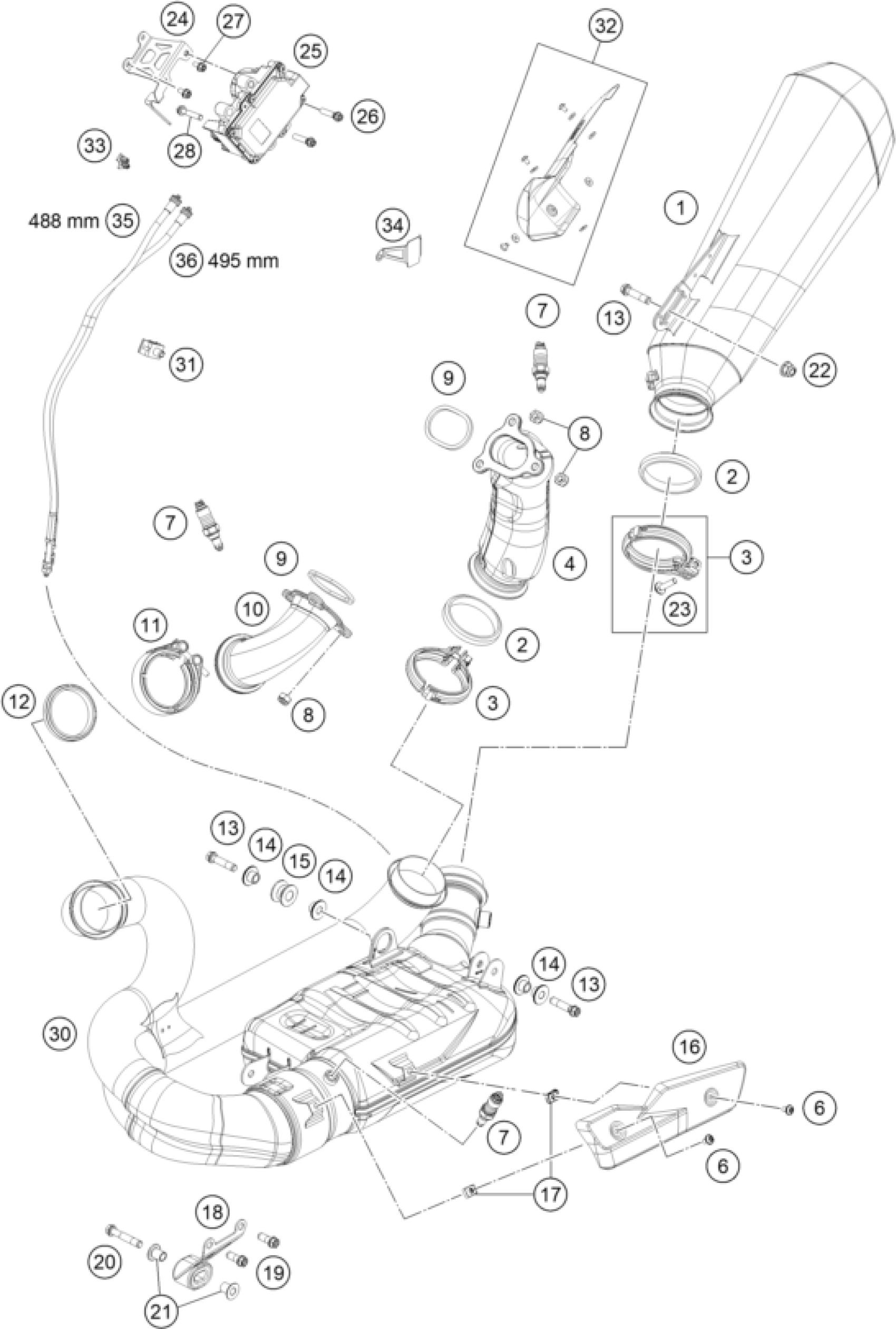

KTM 1290 SUPER DUKE RR 2021 EXHAUST SYSTEM Diagram

#

Description

Price

1

Akrapovic Slip-on Line silence

61705979100

Unavailable

2

Manifold gasket 60mm

61305105005

Unavailable

3

Clamp, tube, 60 mm

61305058100

Unavailable

4

Header with integrated insulat

61705008100

Unavailable

6

SCREW TORX M5X10

78105081010

Unavailable

7

LAMBDA SENSOR

75041090200

Unavailable

8

self-locking nut M8 Cu

51010086100

Unavailable

9

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

10

Header front

61705007100

Unavailable

11

V-clamp D=70,1

61705058100

Unavailable

12

Header gasket 54 mm

61705005105

Unavailable

13

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

14

Collar bushing 8.5x12.5x23.5x1

61705069000

Unavailable

15

damp. component silicone grey

54305068100

Unavailable

16

Heat shield front black

61705012010C1

Unavailable

17

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

18

Pre muffler mounting 2 complet

61705055000

Unavailable

19

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

20

HH COLLAR SCREW M8X45 ISA40

0025080456S

Unavailable

21

BUSHING

60305069000

Unavailable

22

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

23

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

24

Retaining bracket actuator

61741070011C1

Unavailable

25

Exhaust flap controll motor

61441070100

Unavailable

26

HH collar screw M6x30 TX30

0025060306

Unavailable

27

HH collar screw M5x10 TX30

0025050106

Unavailable

28

HH collar screw M6x35 TX30

0025060356

Unavailable

35

Throttle cables, exhaust flap

61741171000

Unavailable

30

pre-muffler VMT

61705050100

Unavailable

31

Hose bracket 7/7mm

60113026000

Unavailable

32

Akrapovic heat protection Slip

61705979070

Unavailable

33

Cable failure protection

61741070020

Unavailable

34

Akrapovic bracket heat protect

61705979040

Unavailable

36

Throttle cables, exhaust flap

61741271000

Unavailable
