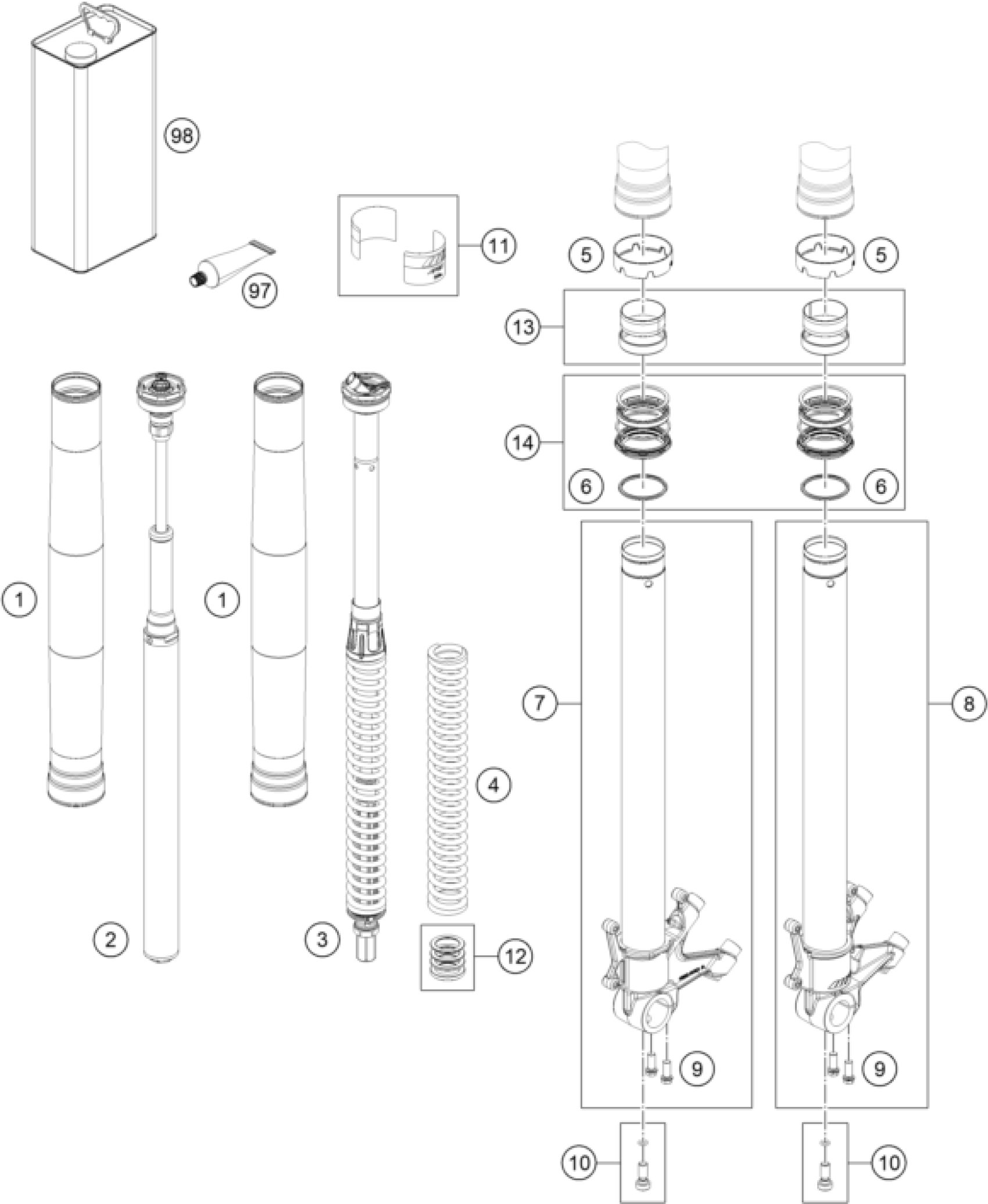

KTM 1290 SUPER DUKE R EVO, black 2022 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

Fork outer tube 19,13x515 dt54

48601931

Unavailable

2

cartridge cpl. valve right

0641R122V407030

Unavailable

3

cartridge cpl. sensor left

0641L122V407030

Unavailable

4

main spring (43.8) 18.0-325 fo

S80990000600000

Unavailable

5

Fork protection ring 62,1mm bl

S639200002000HG

Unavailable

6

Stroke indicator 48mm red

48602007

Unavailable

7

axle clamp right cpl. with inn

48601082S02

Unavailable

8

axle clamp left cpl. with inne

48601081S02

Unavailable

9

HH collar screw M8x20

0025080206

Unavailable

10

AH SCREW M10X20 SET

00501020S1

Unavailable

11

sticker set APEX SAT 90x40

52000212SET

Unavailable

12

REP. KIT SPACER

R14054

Unavailable

13

Guide bushing set fork 48mm

R14047T

Unavailable

14

"Seal kit 48mm SKF black"

RP10012T

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable
