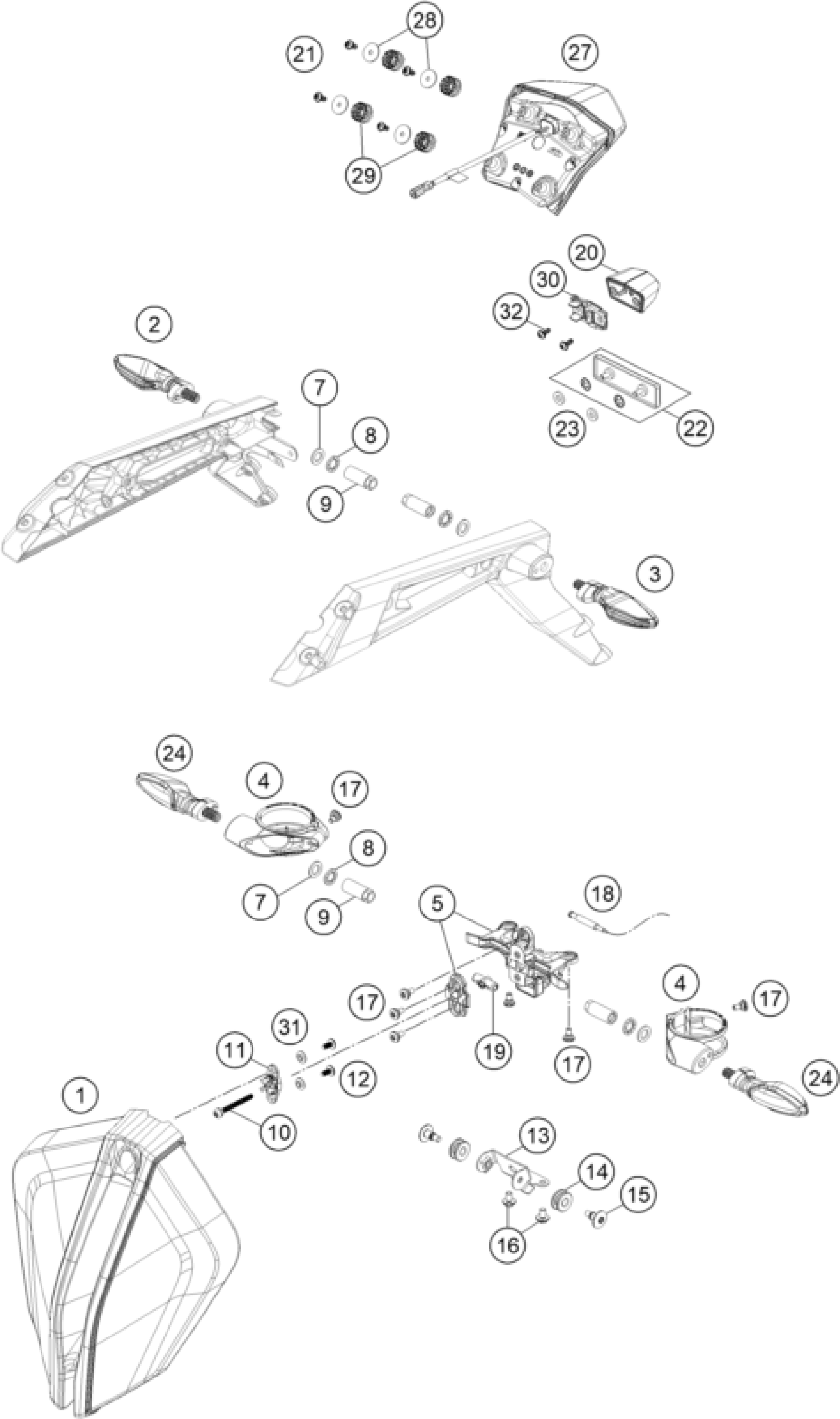

KTM 1290 SUPER DUKE R, black 2023 LIGHTING SYSTEM Diagram

#

Description

Price

1

LED headlight ECE

61714001100

Unavailable

2

turn signal front left/rear ri

60314025000

Unavailable

3

turn signal front right/rear l

60314026000

Unavailable

4

Turn signal bracket front

61714035100

Unavailable

5

Fixation-Set Headlight SD-R 2

61714001030

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

FLASHER NUT M10X1,25 WS=12

61014030000

Unavailable

10

EJOT PT SCHRAUBE 50X54

61614020010

Unavailable

11

Ballhead holder

61614020100

Unavailable

12

EJOT ALTRACS 50X12

61614018100

Unavailable

13

Fixing sheet headlight bottom

61714001041C1

Unavailable

14

Rubber grommet

61614013150

Unavailable

15

Special screw M6x19

0900000601900

Unavailable

16

HH collar screw M6x10 TX30

0025060106

Unavailable

17

special screw M5x12

69008021160

Unavailable

18

Temperatur sensor

61111018100

Unavailable

19

Screwshaft

61614019100

Unavailable

20

license plate lighting

60314047000

Unavailable

21

EJOT PT screw K50x12

0081050121

Unavailable

22

REFLECTOR RED

58412080000

Unavailable

23

RUBBER 14X6.5X2.3MM

60408061050

Unavailable

24

Turn signal left/right

61714030000

Unavailable

27

Tail light

61714040000

Unavailable

28

WASHER DIN522 A2K 4.3X20X1.25

0522040003

Unavailable

29

Absorbing element tail light

61714040050

Unavailable

30

Bracket, license plate lightin

61708015030

Unavailable

31

Bush 13X7X3.3

61412032010

Unavailable

6

Special screw, M5x14

69008021260

Unavailable
