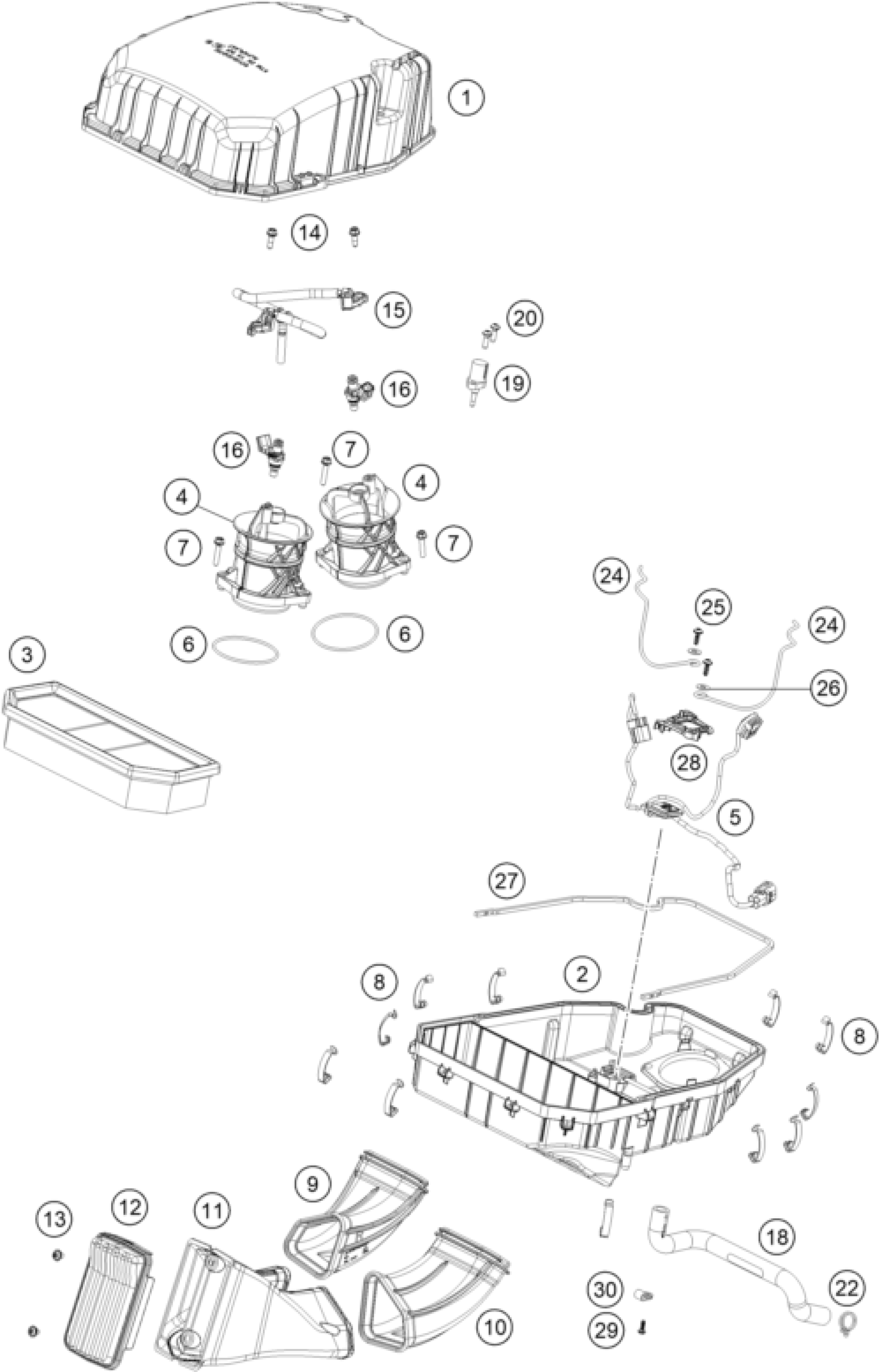

KTM 1290 SUPER DUKE R, black 2023 AIR FILTER Diagram

#

Description

Price

1

Air filter box top part cmpl.

61706002000

Unavailable

2

Air filter box bottom part

61706001010

Unavailable

3

Air filter

61706015000

Unavailable

4

Velocity stack L=80

61741040000

Unavailable

5

Wiring harness topfeeder

61711086000

Unavailable

6

O-RING 66X2,5 FKM

0770066025

Unavailable

7

HH collar screw M5x25 TX30

0025050256S

Unavailable

8

Air filter box clip

61706005075

Unavailable

9

Air intake right

61706041000

Unavailable

10

Air intake left

61706040000

Unavailable

11

Intake port cmpl.

61706040033

Unavailable

12

Intake duct frame cmpl.

61706040055

Unavailable

13

Oval head screw ISR M5x8-A2-07

073802050085

Unavailable

14

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

15

Fuel line topfeeder cpl.

61707057044

Unavailable

16

Injector cmpl.

61741023044

Unavailable

18

Oil separator hose

61730088230

Unavailable

19

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

20

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

22

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

24

Wire bracket

61706005095

Unavailable

25

EJOT PT screw K50x14

0081050141

Unavailable

26

shim

50337073000

Unavailable

27

Air filter box seal

61706003000

Unavailable

28

Clamp frame

61706005040

Unavailable

29

EJOT Delta PT K40x12

0081040121

Unavailable

30

CLAMP RSGU 6/12

58711070000

Unavailable
