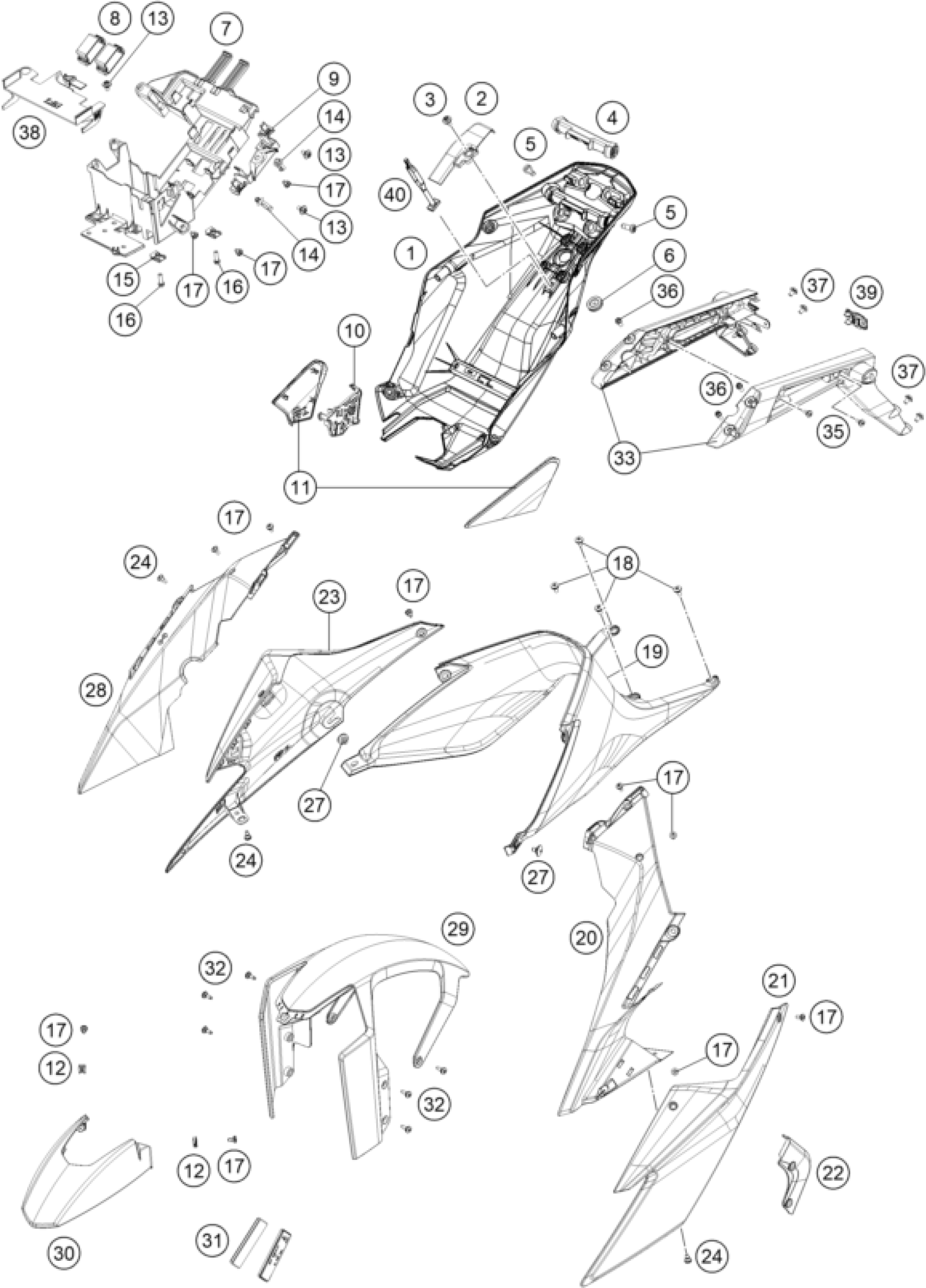

KTM 1290 SUPER DUKE R, black 2022 MASK, FENDERS Diagram

#

Description

Price

1

Tail end lower part

61708019200

Unavailable

2

Cable bracket tail end lower p

61708019060

Unavailable

3

Special screw M6x15x5.5

83008100015

Unavailable

4

Cross-connector

61708019050

Unavailable

5

SHCS M8x20 TX45

0035080206S

Unavailable

6

Rubber grommet, standby gas se

60006001023

Unavailable

7

Electrics carrier

61711054000

Unavailable

8

Rubber band TPMS

61711032050

Unavailable

9

Bracket, fuse box

61711056000

Unavailable

10

Connector support frame

A64111083050

Unavailable

11

Side Cover Set SD-R 20

61708044000

Unavailable

13

special screw M6x12x3

83008000012

Unavailable

14

Cable tie w. socket D=6.5

69011092000

Unavailable

15

clip nut M6

54603048100

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

17

special screw M5x12

69008021160

Unavailable

18

special screw M6x14

69008021040

Unavailable

19

Rear fuel tank fairing

61708049000CB

Unavailable

20

Front fairing left

61708026000

Unavailable

21

Radiator shroud left

61708050000CBA

Unavailable

22

Plug cover

61411095000

Unavailable

23

Radiator shroud right

61708051000CBA

Unavailable

24

Special screw, M5x14

69008021260

Unavailable

27

Seat screw M6x11.5 ISA30

0900000601200

Unavailable

28

Inner cover right cpl

61708027033

Unavailable

29

Fender rear part

61708011000

Unavailable

30

Fender, front part

61708010000HC

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

32

special screw M5x17

69008021060

Unavailable

33

License plate holder support

61708015000

Unavailable

35

special screw M5x12

69008021160

Unavailable

36

HH collar screw M6x12 TX30

0025060126

Unavailable

37

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

38

ECU bracket

61711055000

Unavailable

39

Bracket, license plate lightin

61708015030

Unavailable

40

RUBBER SIDE STAND

76503025000

Unavailable

12

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable
