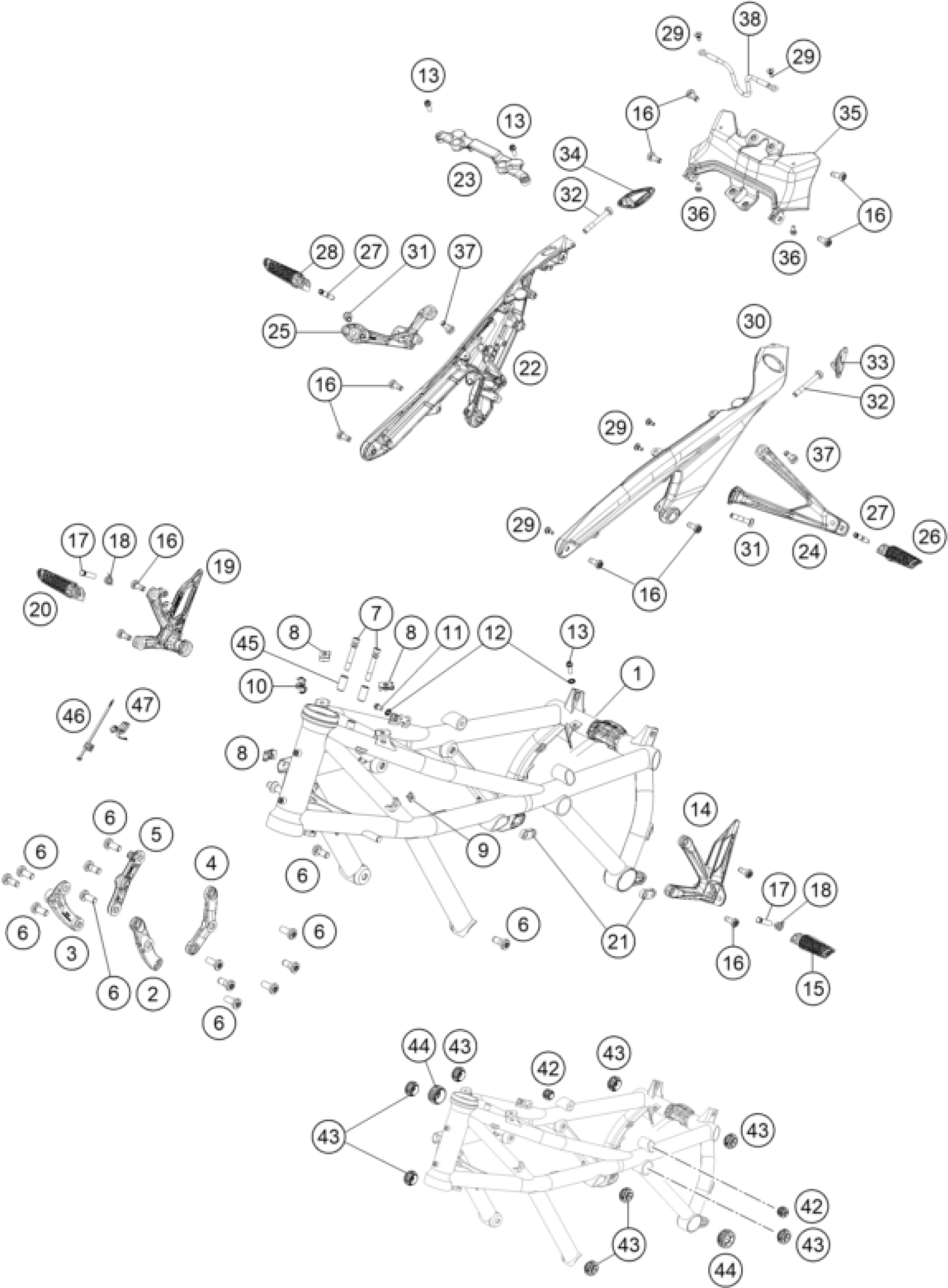

KTM 1290 SUPER DUKE R, black 2022 FRAME Diagram

#

Description

Price

1

Frame 617VA

61703001200EB

Unavailable

2

Engine hanger front left

61703005000C1

Unavailable

3

Engine hanger front right

61703006000C1

Unavailable

4

Engine hanger rear left

61703007000C1

Unavailable

5

Engine hanger rear right

61703008000C1

Unavailable

6

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

7

One-way screw 617

61711064000

Unavailable

8

clip nut M6

54603048100

Unavailable

9

clip nut M5

69008021080

Unavailable

10

Support ABS-pipe d7.5

61342046000

Unavailable

11

HH collar screw M6x10 TX30

0025060106

Unavailable

12

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

13

HH collar screw M6x16 TX30

0025060166

Unavailable

14

Front footpeg bracket left

61703038000C1

Unavailable

15

Front footpeg left

61703040000C1

Unavailable

16

SHCS M8x20 TX45

0035080206S

Unavailable

17

Footpeg bolt

61703043000

Unavailable

18

Spring footrest front

61703042000

Unavailable

19

Front footpeg bracket right

61703039000C1

Unavailable

20

Front footpeg right

61703041000C1

Unavailable

21

Footrest bottom fixing nut

61703045010

Unavailable

22

Subframe right black

61703002020C1

Unavailable

23

Fuel tank bridge

61703002030C1

Unavailable

24

Rear footpeg bracket left

61703048000C1

Unavailable

25

Rear footpeg bracket right

61703049000C1

Unavailable

26

Rear footpeg left cmpl.

61703050033C1

Unavailable

27

Rear foot peg bolt

61703053000

Unavailable

28

Rear footpeg right cmpl.

61703051033C1

Unavailable

29

Screw, reservoir

69013099150

Unavailable

30

Subframe left black

61703002010C1

Unavailable

31

ISA collar screw, M8x35, MK-IS

0000350803500S

Unavailable

32

Hex screw w.intern.Torx w.coll

0035080606S

Unavailable

33

Mounting flange top left black

61703002054C1

Unavailable

34

Mounting flange top right blac

61703002055C1

Unavailable

35

Cross rib, black

61703002040C1

Unavailable

36

HH collar screw M5x10 TX30

0025050106

Unavailable

37

ISA collar screw M8x25 ISA45

0035080256S

Unavailable

38

Tether, passenger

61707048170

Unavailable

42

Plug small

61703288000

Unavailable

43

Plug, small

61703188000

Unavailable

44

Plug, large

61703088000

Unavailable

45

Spacing tube ignition lock

61711065000

Unavailable

46

Cable tie with foot section

0330000520000

Unavailable

47

Frame cover

61703083000

Unavailable
