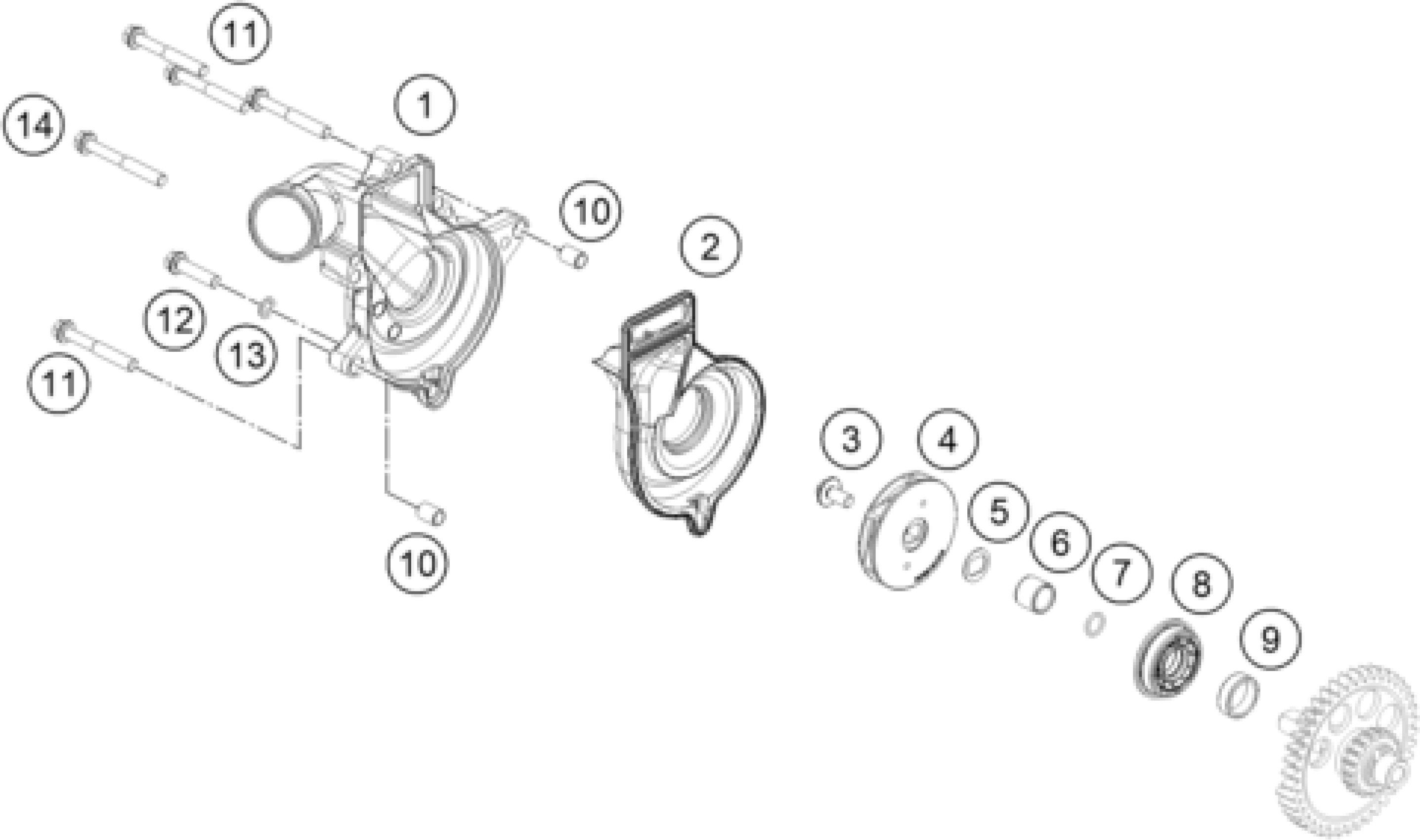

KTM 1290 Super Duke R, black 2020 WATER PUMP Diagram

#

Description

Price

1

Water pump cover

6173505201041

Unavailable

2

Water pump cover, insert, cmpl

61735052030

Unavailable

3

HH Collar screw M6x13 TX30 SL

0024060136S

Unavailable

4

WATER PUMP WHEEL CPL.

60335055100

Unavailable

5

double-d washer 16x1 SST

60035055150

Unavailable

6

Wear bushing 12/15/12,5

77236072120

Unavailable

7

O-RING 9X1,5 NBR

0770090015

Unavailable

8

radial shaft seal 34.5x15x9 Du

0760153459

Unavailable

9

SLIDE BEARING

61330157050

Unavailable

10

Dowel, 6x8x11.5

59030023100

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

14

HH collar screw M6x50 TX30

0025060506

Unavailable

13

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable
