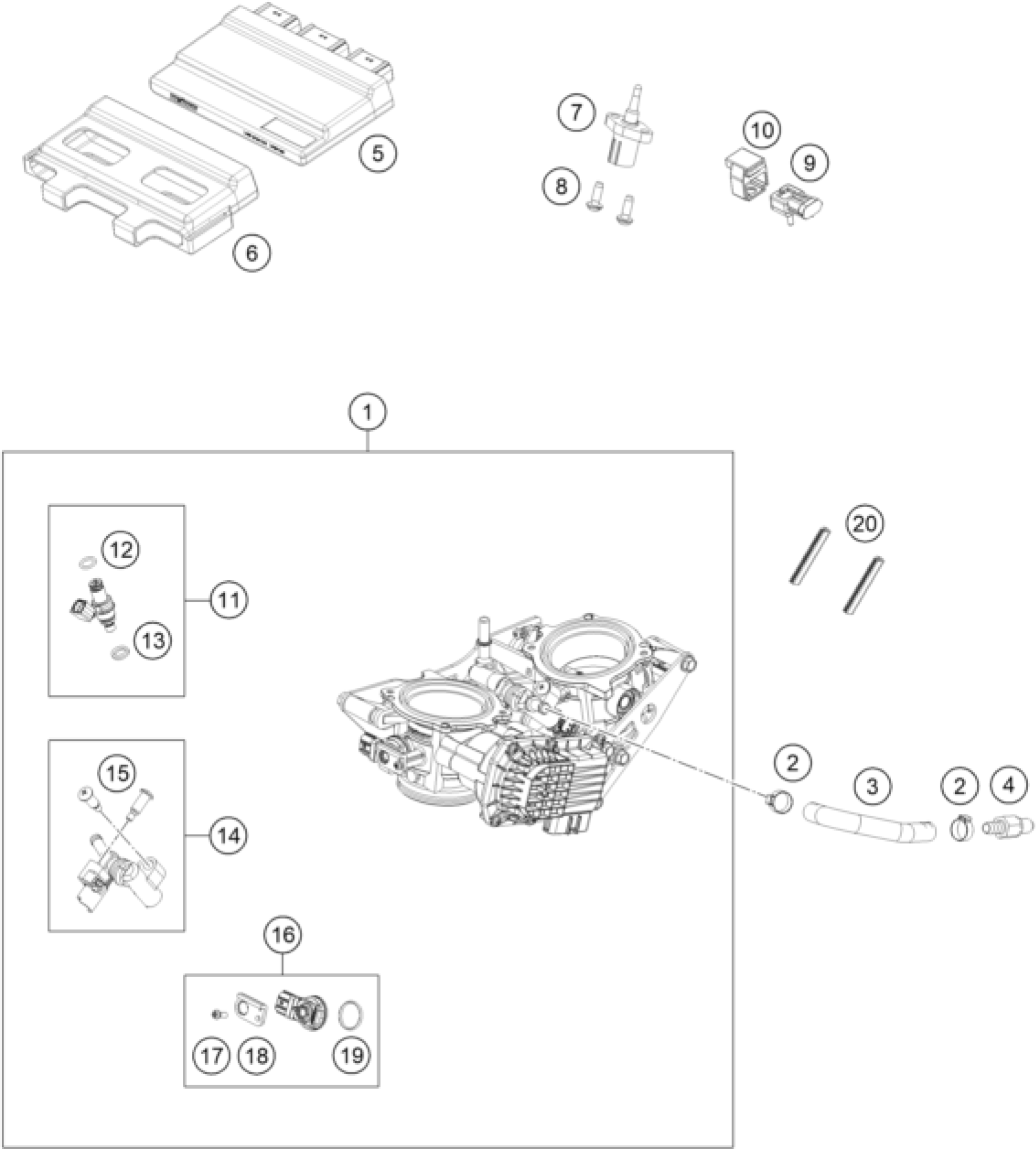

KTM 1290 Super Duke R, black 2020 THROTTLE BODY Diagram

#

Description

Price

1

throttle body

61341101000

Unavailable

2

Variable one-ear clamp 15.7mm

00050157706

Unavailable

3

Fuel hose throttle valve body

61707016050

Unavailable

4

Plug CPC black 05

5850701030030

Unavailable

5

Control unit EFI

61741031000

Unavailable

6

Rubber mount ECU

61741031050

Unavailable

7

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

8

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

9

Ambient air pressure sensor

A61241085000

Unavailable

10

Ambient air pressure sensor ru

A61241085050

Unavailable

11

Injector cmpl.

60341023144

Unavailable

12

O-RING

60341023020

Unavailable

13

SEAL RING

75041023010

Unavailable

14

Fuel Pipe Assy Set

61741013044

Unavailable

15

SCREW SHOULDER

75041013060

Unavailable

16

MAP SENSOR CPL. 07

75041085044

Unavailable

17

SCREW WASHER

75041085030

Unavailable

18

PLATE, STAY

75041085020

Unavailable

19

O-RING

75041085010

Unavailable

20

EDGE PROTECTOR L=45MM 05

61011055045

Unavailable
