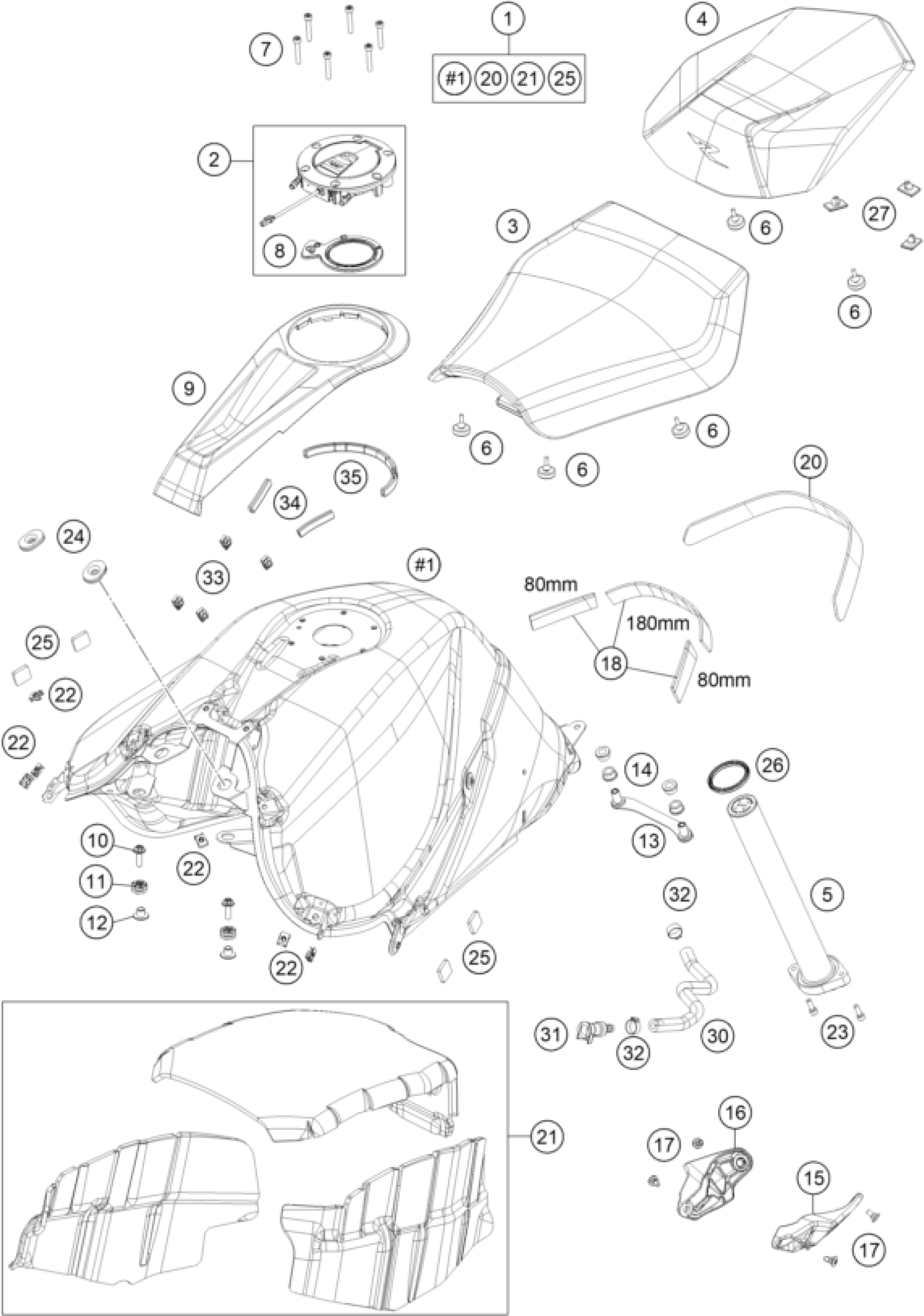

KTM 1290 Super Duke R, black 2020 TANK, SEAT Diagram

#

Description

Price

3

Rider seat

61707040000

$166.80

4

Passenger seat

61707047000

$160.72

6

Distance rupper airbox 03

60006001021

$2.54

1

Fuel tank black SD-R 20

61707013044CBA

Unavailable

2

Fuel tank cap, RaceOn, black

61507008000C1

$341.36

8

GASKET TANK CAP

60307008190

$7.85

5

Fuel lever sensor

61407080200

$142.11

26

Gasket fuel lever sensor

60307080090

$50.67

23

AH collar screw DIN 912 M5x16

0912050163

$1.69

7

Screw ISO 14579-M5x30-8.8-P3R

014579050301

$1.69

9

Fuel tank fairing, top

61707058000

$21.31

25

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.69

22

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.54

10

HH collar screw M6x20 TX30

0024060206

$3.39

11

DAMP. COMPONENT ABS MODUL

62142041000

$4.24

12

Collar bushing 6.5X9X18X8.5

61342041000

Unavailable

13

Rear fuel tank mounting

61707013010C1

$36.27

14

Rubber bushing 9X17X8.5

75608006000

$4.24

15

Slide pad, left

61707011010

$11.55

16

Slide pad, right

61707011020

$11.55

17

Special screw M5x12

69008021170

$1.69

18

dual lock 25,4mm

61707015001

$24.47

20

Spacer tank bottom

61707013015

$8.87

21

Silencer packing kit tank SD-R

61706095000

$43.94

30

Fuel hose pump

61707017050

$27.57

31

Clutch CPC PLCD17005, black

5850701050030

$55.90

32

Variable one-ear clamp 15.7mm

00050157706

$5.23

27

Isolation pad

77307040041

$2.54

24

GROMMET

90108060003

$1.69

33

Bracket for side fairing

61908040030

$1.69

34

Edge protection 9.5x6.5x48

76003095048

$2.54

35

Edge protection 9.5x6.5x184

76003095184

$4.24
