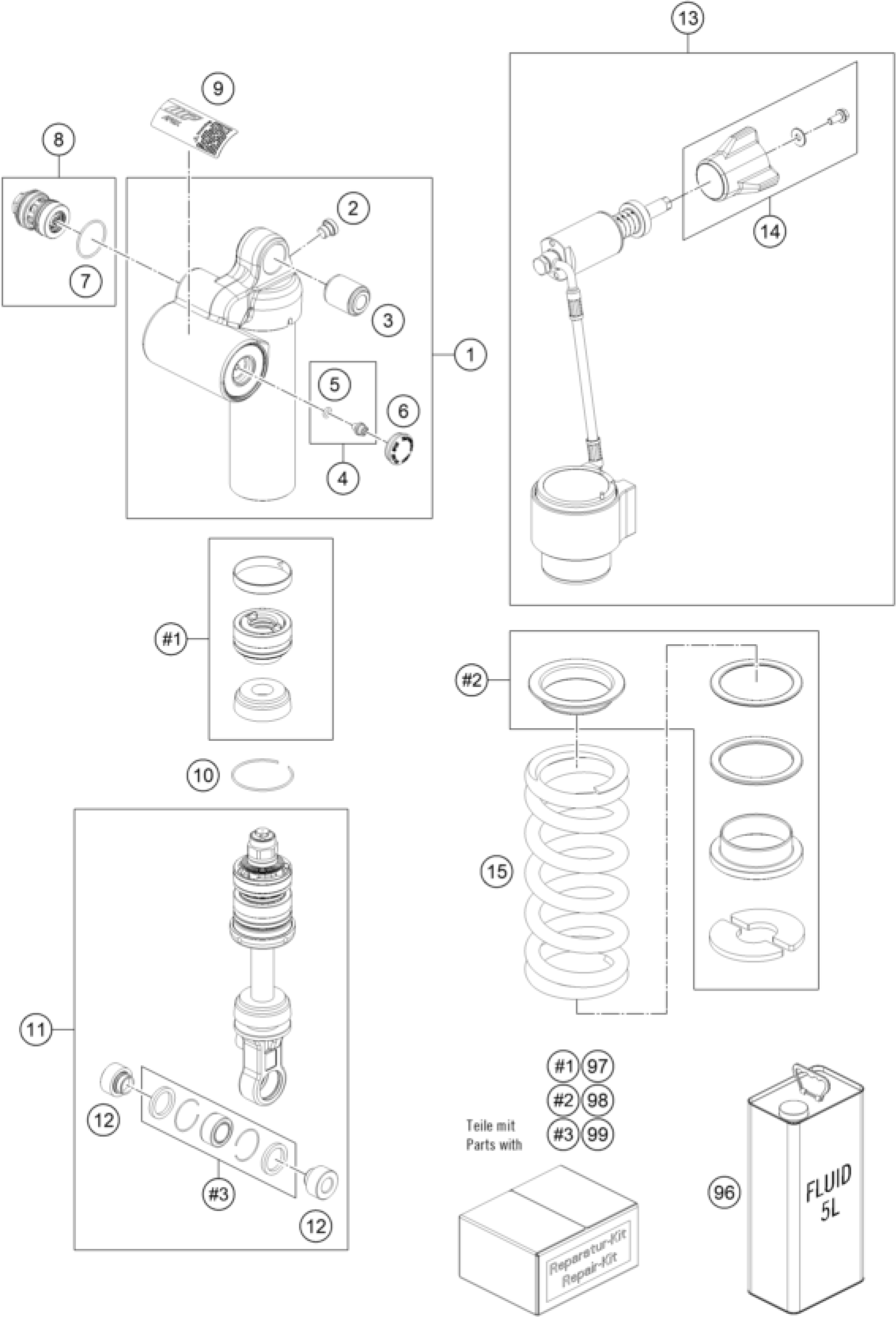

KTM 1290 Super Duke R, black 2020 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

2

HS cylinder-head screw R1/8 l8

50180095

Unavailable

3

Silentblock 12x25x32

46181449

Unavailable

6

Rubber cap do not open 22x5,5

46811208

Unavailable

4

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

5

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

7

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

8

compression cpl.

50180213S30

Unavailable

9

Sticker APEX 75x30

52000276

Unavailable

10

Round-wire snap ring 49x1,5

46810010

Unavailable

12

Bearing bush 12x15/19/23,5x18,

46181342

Unavailable

13

PA Super Duke R 20 with hand k

11001T01

Unavailable

15

Mainspring (59) 85-195 silence

91010381

Unavailable

96

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Ball joint bearing kit top 12m

R12012

Unavailable

15

mainspring (59) 95-195 shock w

91010432

Unavailable

15

Mainspring (59) 75-195 damper

91010431

Unavailable

97

shock absorber repair kit Supe

RP10030T

Unavailable

1

shock housing cpl. KTM 1290 Su

46181338S2

Unavailable

14

adjuster wheel PA cpl.

60000323S

Unavailable

98

Repair kit spring retainer sho

RP10031T

Unavailable

11

Shock abs.bott.part cmpl.KTM 1

46181349S03

Unavailable
