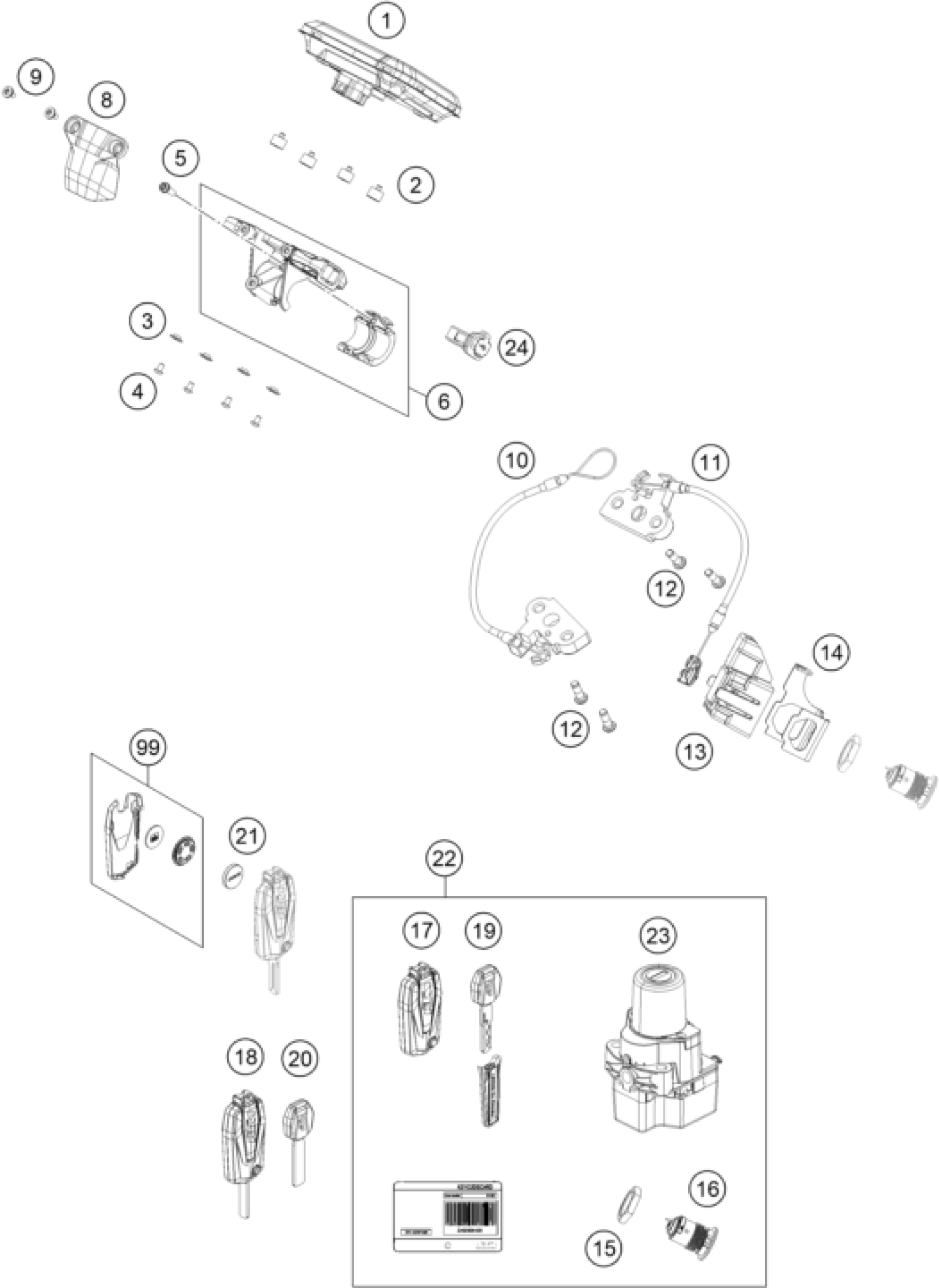

KTM 1290 Super Duke R, black 2020 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

15

NUT SEAT LOCK M22X1,5

69007050050

Unavailable

16

LOCK CYLINDER SEAT LOCK

61307050020

Unavailable

22

Lock kit, KTM RACE ON 433 MHz

61711266044

Unavailable

17

Race-on key 433 MHz

60711267000

Unavailable

19

KTM ignition key

60411067100

Unavailable

18

Race on blank key 433MHz

60711267010

Unavailable

20

Blank KTM ignition key

60411067010

Unavailable

21

BATTERY FOR ICO TRIPMASTER 04

58512085160

Unavailable

99

Cover-Kit for Race-on-Key

60711067050

Unavailable

23

Ignition lock Race-on 433MHz

61611266000

Unavailable

1

Combination instrument

61714069000

Unavailable

2

Damper, speedometer

61514069110

Unavailable

3

Tachometer support bush

61614069020

Unavailable

4

Flat Head Screw ISO7380 M5x8 A

0738050082

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

6

Instrument support cpl.

61701044044

Unavailable

8

Connector cover, instrument su

61701046000

Unavailable

9

special screw M5x12

69008021160

Unavailable

24

USB Power Supply 12V

61711043000

Unavailable

10

Rider seat lock cpl.

61707052000

Unavailable

11

SEAT LOCK MECHANISM CPL.

61307050000

Unavailable

12

oval head screw M6x18 A2-70 S

0738060185S

Unavailable

13

Anti-rotation lock, seat lock

61707050020

Unavailable

14

Anti-rotation lock, seat lock

61707050010

Unavailable
