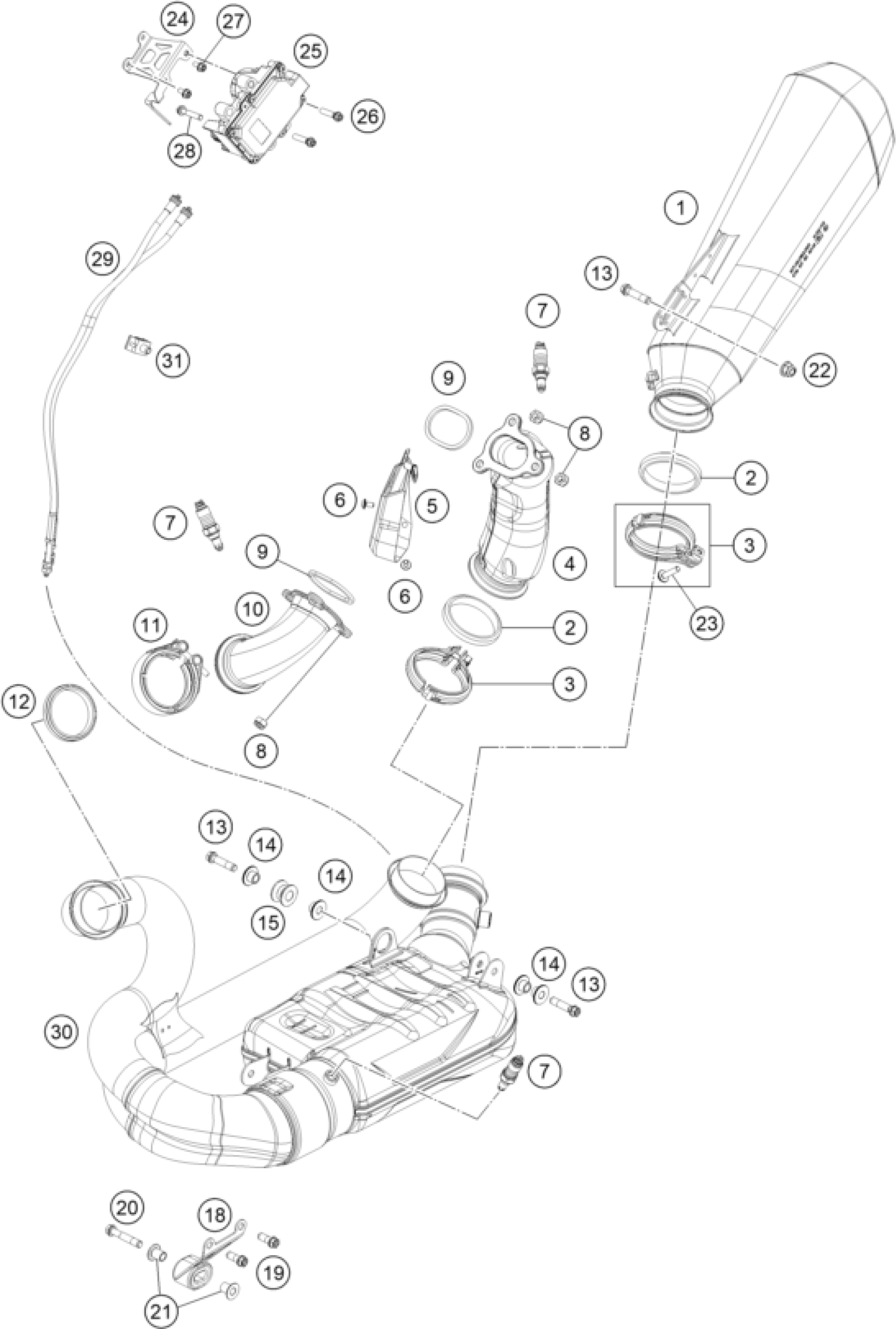

KTM 1290 Super Duke R, black 2020 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

61705083000

Unavailable

2

Manifold gasket 60mm

61305105005

$11.02

3

Clamp, tube, 60 mm

61305058100

Unavailable

4

Header with integrated insulat

61705008000

Unavailable

5

Heat protection cmpl. black

61705011000C1

Unavailable

6

Torx screw M5x10 black

78105181010

$1.69

7

LAMBDA SENSOR

75041090200

$327.34

8

self-locking nut M8 Cu

51010086100

$3.39

9

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

10

Mainfold front pre assembly

61705007000

Unavailable

11

V-clamp D=70,1

61705058100

Unavailable

12

Header seal

61705005005

$11.02

13

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.39

14

Collar bushing 8.5x12.5x23.5x1

61705069000

$4.24

15

damp. component silicone grey

54305068100

$8.31

18

Pre muffler mounting 2 complet

61705055000

$66.75

19

HH collar screw M6x16 TX30 SL

0025060166S

$2.54

20

HH COLLAR SCREW M8X45 ISA40

0025080456S

$3.39

21

BUSHING

60305069000

Unavailable

22

STOP NUT DIN6926 M8 SS

0926080003

$1.69

23

HH COLLAR SCREW M6X25 TX30

0024060256

$3.39

24

Retaining bracket actuator

61741070011C1

$48.61

25

Exhaust flap controll motor

61441070100

$295.36

26

HH collar screw M6x30 TX30

0025060306

$3.39

27

HH collar screw M5x10 TX30

0025050106

$1.69

28

HH collar screw M6x35 TX30

0025060356

$3.39

29

Throttle cables, exhaust flap

61741071000

Unavailable

30

Presilencer

61705050000

Unavailable

31

Hose bracket 7/7mm

60113026000

$3.39
