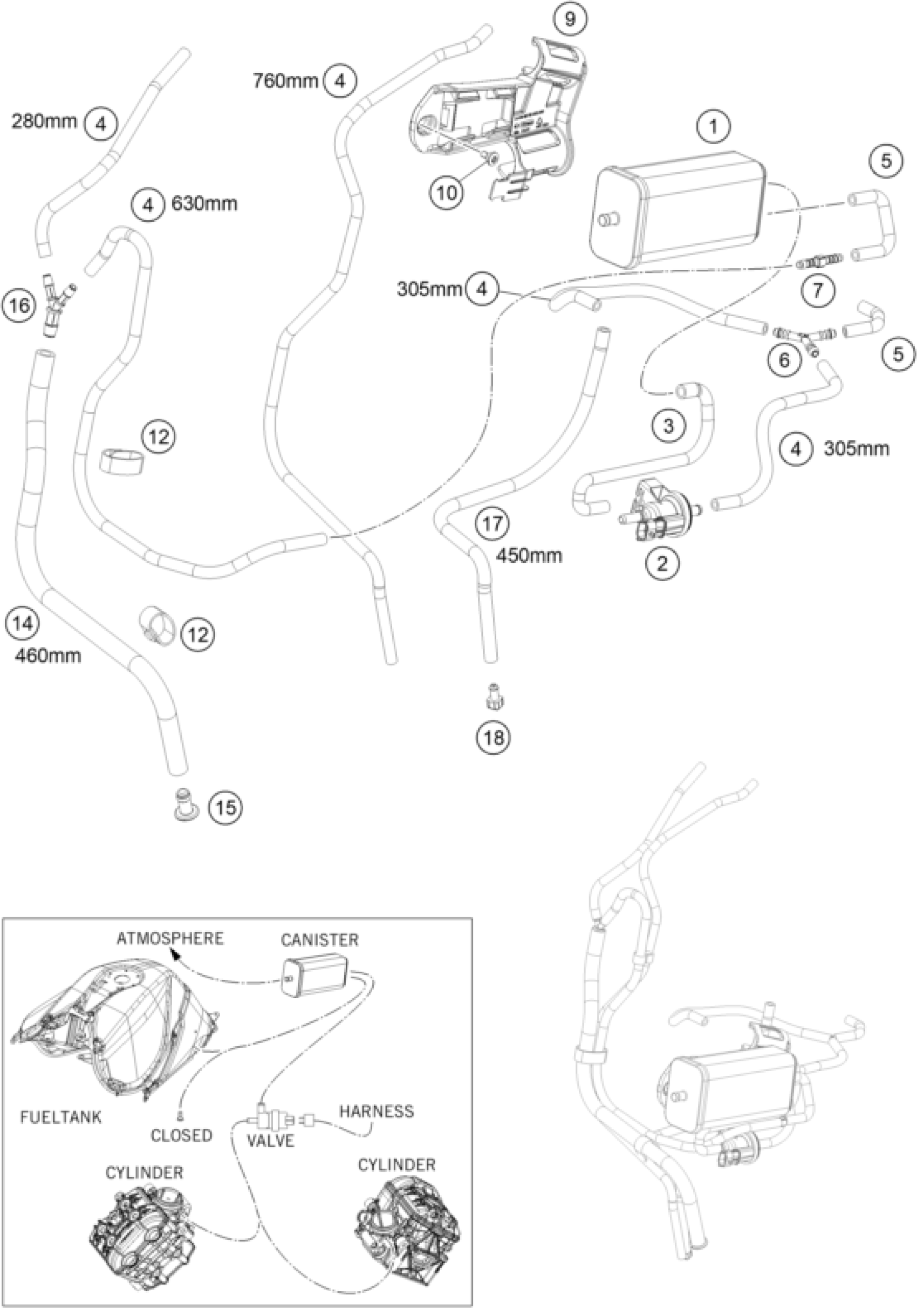

KTM 1290 Super Duke R, black 2020 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

CARBON CANISTER

75015001200

Unavailable

2

EVAP valve

76015015000

Unavailable

9

ACF bracket

61715003000

Unavailable

10

Special screw M5x12

69008021170

Unavailable

3

Pre-formed hose, ACF valve # A

61715021000

Unavailable

4

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

5

HOSE PURGE VALVE

61415021000

Unavailable

6

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

7

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

17

HOSE NBR 7X11 PER METER

60015019001

Unavailable

12

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

16

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

15

Screw plug ACF

61315026100

Unavailable

18

PLUG FUEL DRAIN

90515011000

Unavailable
