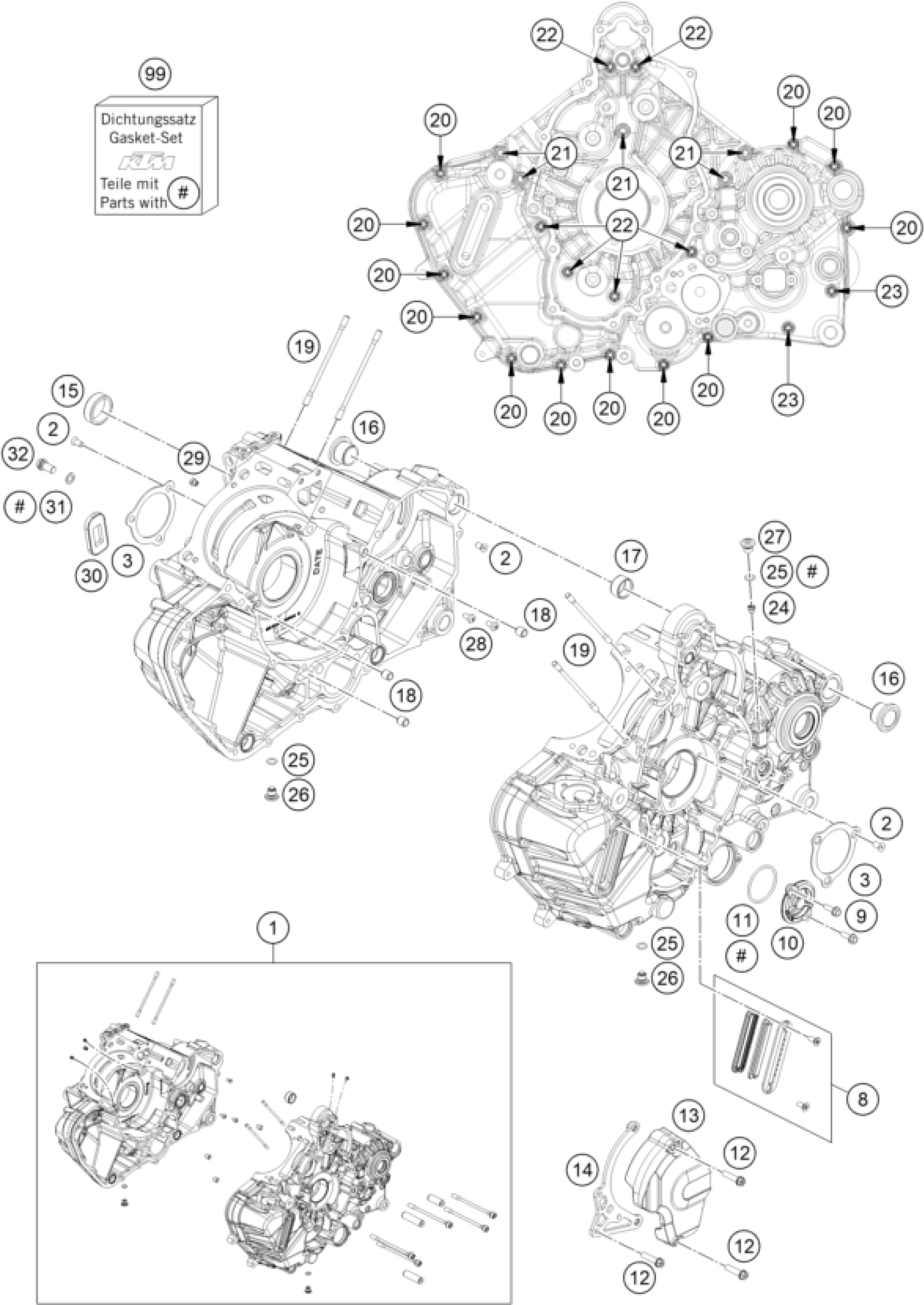

KTM 1290 Super Duke R, black 2020 ENGINE CASE Diagram

#

Description

Price

1

Crankcase cmpl.

6173000004424

Unavailable

2

hex lobe countersunc screw M5x

0019050106S

$2.54

3

BRACKET FOR BEARING INSERT 08

61230084000

$7.56

8

OIL SIGHT GLASS CPL.

62638084044

$62.08

9

HH collar screw M5x16 TX30

0025050166

$2.54

10

oil filter cover

75038041200

$8.13

11

O-RING 39,34X2,62

07700390261

$2.54

12

HH collar screw M6x25 TX30

0025060256

$3.39

13

Front sprocket cover

61703096033

$12.74

14

Chain guard cmpl.

61730047033

$27.57

15

SLIDE BEARING

61330157050

$21.31

16

SWING BEARING OUTSIDE LC8 03

60030010000

$13.64

17

DOWEL 20,1X24X12 03

60030023000

$4.24

18

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

19

STUD M6X110 08

61230044000

$4.24

20

HH collar screw M6x55 TX30

0025060556

$3.39

21

Case screw M8x125

61230043100

$4.24

22

HH COLLAR SCREW M6X90 TX30

0025060906

$3.39

23

HH COLLAR SCREW M6X70 TX30

0025060706

$3.39

24

REDUCING JET ''30'' M6X0,75

60038029200

$17.85

25

O-RING 9x1,5 V80 SH

07700900151

$2.54

26

SCREW PLUG

77336056095

$7.00

27

threaded plug

77236080100

Unavailable

28

Oval head screw DIN 7985-M5x10

0018050103S

$1.69

29

MAIN JET 100 DELLORTO

57031523100

$8.59

30

SAS Reed Valve

60005026000

$21.50

31

SEAL RING 8X14X1 AI

45038017000

$5.23

32

HH COLLAR SCREW M8X16 TX40

0025080166

$4.24

99

Engine gasket kit 1290 SD

61730099000

$542.85
