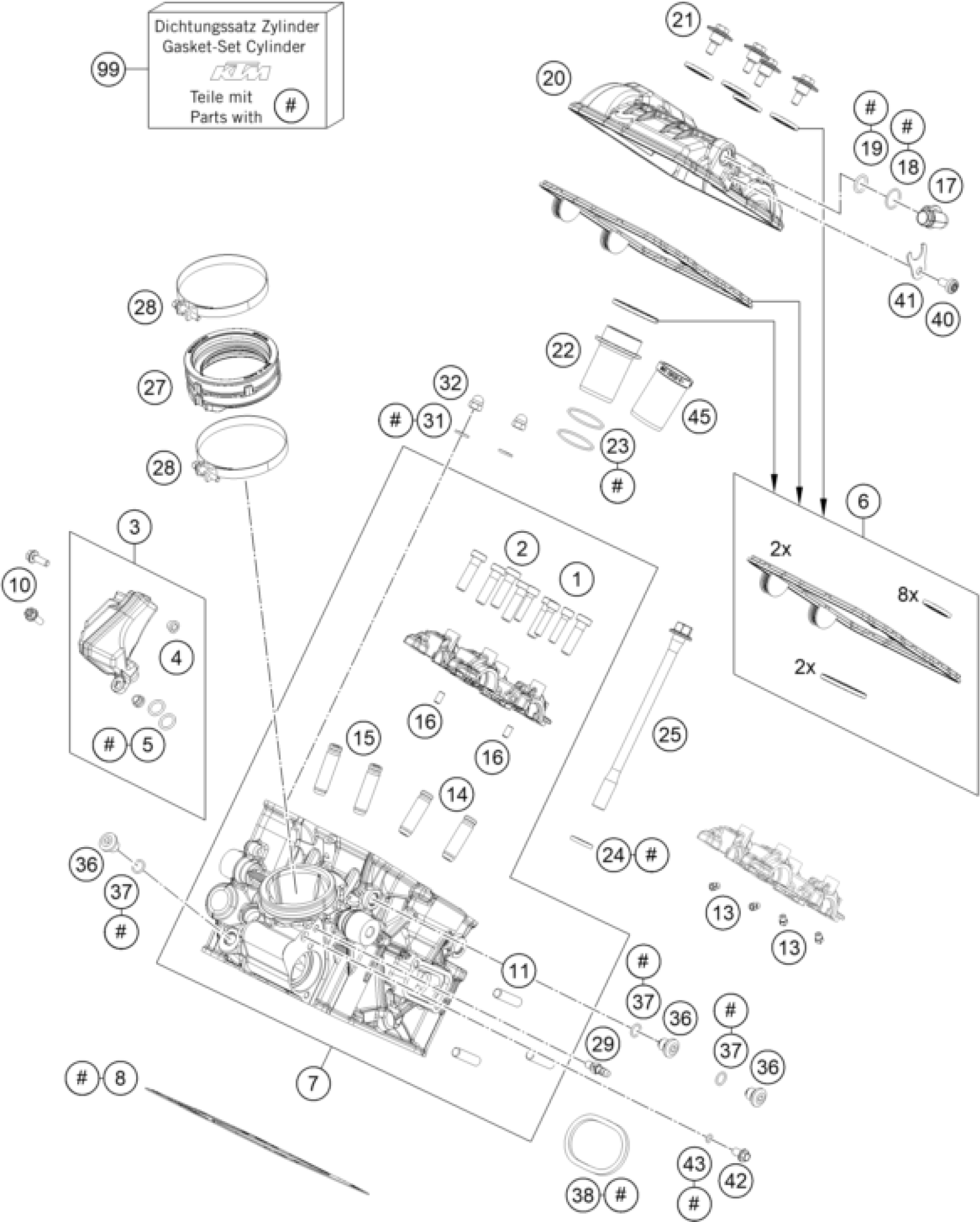

KTM 1290 Super Duke R, black 2020 CYLINDER HEAD REAR Diagram

#

Description

Price

1

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.69

2

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.69

3

Resonator chamber cmpl.

61736065000

$36.27

4

SPACER BUSH. SPRING BRACKET

78003023070

Unavailable

5

O-RING 11X2 VITON

0770110021

$2.54

6

Valve cover seal kit

61736099000

$74.98

7

Cylinder head rear

6173632000024

Unavailable

8

CYLINDER HEAD GASKET 0,85

61330036085

$66.47

10

HH collar screw M5x16 TX30

0025050166

$2.54

11

STUD M 8X16 10.9

0835080165

$3.39

13

oil jet 50 M5

60030063050

$9.44

14

VALVE GUIDE EXHAUST 08

61236026001

$25.70

15

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

16

needle roller DIN 5402 5x9.8

0402050980

$1.69

17

Elbow fitting

61236082200

$5.23

18

O-RING 15,00X1,50 VITON

0770150151

$3.39

19

O-RING 12,00X2,00 NBR 70

0770120020

$2.54

20

Rear valve mechanism cover

6173615200033

$48.80

21

collar screw M 6 WS=10 03

60036052020

$3.39

22

Spark plug shaft insert

61736075000

$22.06

23

O-RING 29,87X1,78 VITON

0770298178

$2.54

24

WASHER 11,1X20X3 08

61236079050

$5.51

25

CYLINDER HEAD SCREW 08

61236079000

$15.79

27

INTAKE BOOT

61336044000

$39.64

28

HOSE CLAMP GEMI 75

61336048000

$14.30

29

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46

31

WASHER DIN0125-A 6,4

0125060003

$1.69

32

CAP NUT M6 STAINLESS STEEL

61230045000

$2.54

36

SCREW PLUG

77336056095

$7.00

37

O-RING 9x1,5 V80 SH

07700900151

$2.54

38

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

40

EJOT ALtracs 60x12 TX30

0080060123

$1.69

41

connecting angle retaining pla

61236082150

$5.23

42

VENT SCREW M6X10 CPL.

59036006090

$4.24

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.69

45

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

99

Gasket kit cylinder+head f+r

61730097000

$329.86
