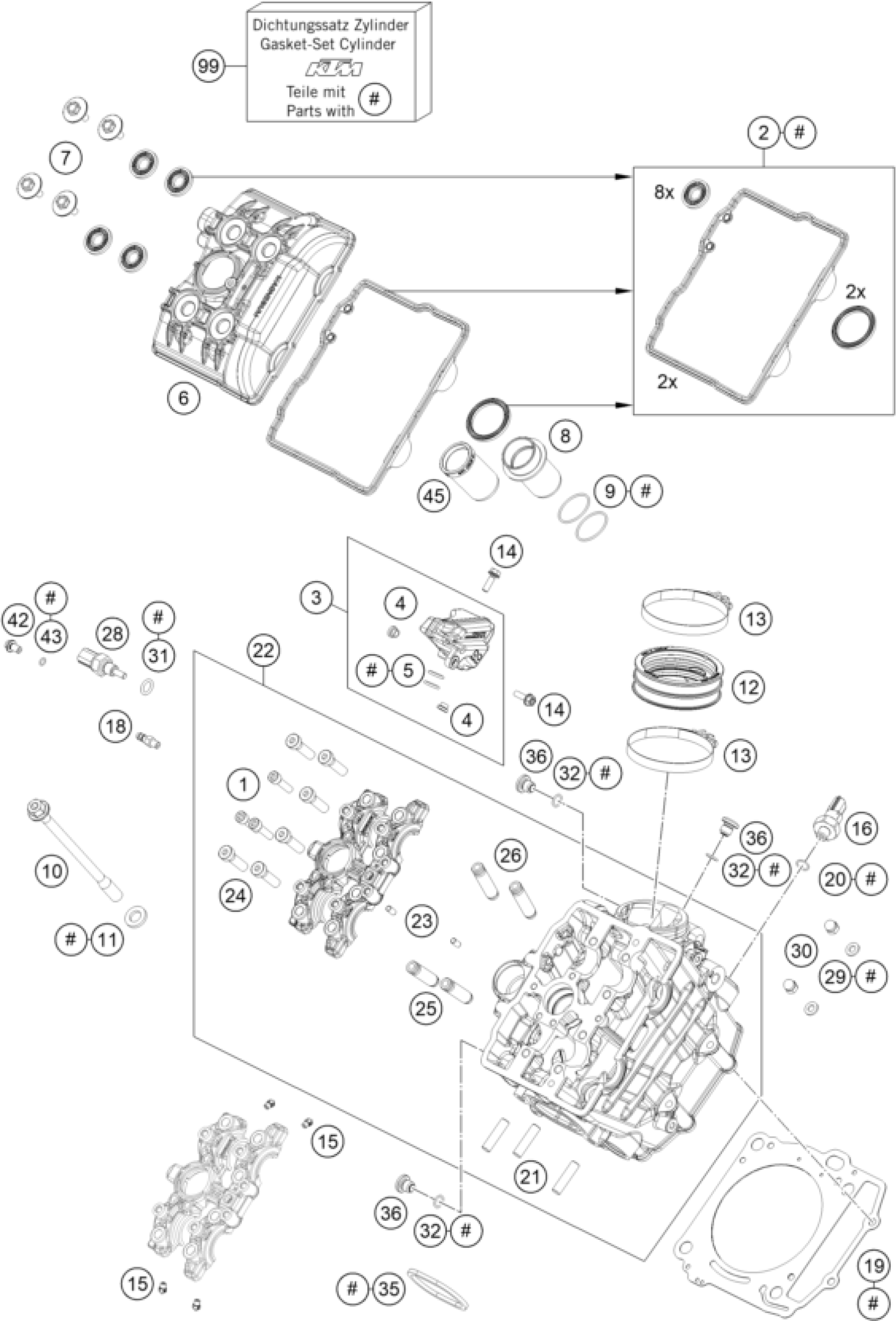

KTM 1290 Super Duke R, black 2020 CYLINDER HEAD FRONT Diagram

#

Description

Price

1

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.69

2

Valve cover seal kit

61736099000

$74.98

3

Resonator chamber cmpl.

61736065000

$36.27

4

SPACER BUSH. SPRING BRACKET

78003023070

Unavailable

5

O-RING 11X2 VITON

0770110021

$2.54

6

Front valve mechanism cover

6173605200033

$45.06

7

collar screw M 6 WS=10 03

60036052020

$3.39

8

Spark plug shaft insert

61736075000

$22.06

9

O-RING 29,87X1,78 VITON

0770298178

$2.54

10

CYLINDER HEAD SCREW 08

61236079000

$15.79

11

WASHER 11,1X20X3 08

61236079050

$5.51

12

INTAKE BOOT

61336044000

$39.64

13

HOSE CLAMP GEMI 75

61336048000

$14.30

14

HH collar screw M5x16 TX30

0025050166

$2.54

15

oil jet 50 M5

60030063050

$9.44

16

oil pressure switch ''BITRON''

61238091000

Unavailable

18

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46

19

CYLINDER HEAD GASKET 0,85

61330036085

$66.47

20

O-RING 8,00X1,5 NBR 70

0770080015

$1.69

21

STUD M 8X16 10.9

0835080165

$3.39

22

Cylinder head front

6173622000024

Unavailable

23

needle roller DIN 5402 5x9.8

0402050980

$1.69

24

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.69

25

VALVE GUIDE EXHAUST 08

61236026001

$25.70

26

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

28

water temperature sensor

79435047000

$23.74

29

WASHER DIN0125-A 6,4

0125060003

$1.69

30

CAP NUT M6 STAINLESS STEEL

61230045000

$2.54

31

o-ring 10.00x2.00 silicone

0770100020

$2.54

32

O-RING 9x1,5 V80 SH

07700900151

$2.54

35

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

36

SCREW PLUG

77336056095

$7.00

42

VENT SCREW M6X10 CPL.

59036006090

$4.24

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.69

45

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

99

Gasket kit cylinder+head f+r

61730097000

$329.86
