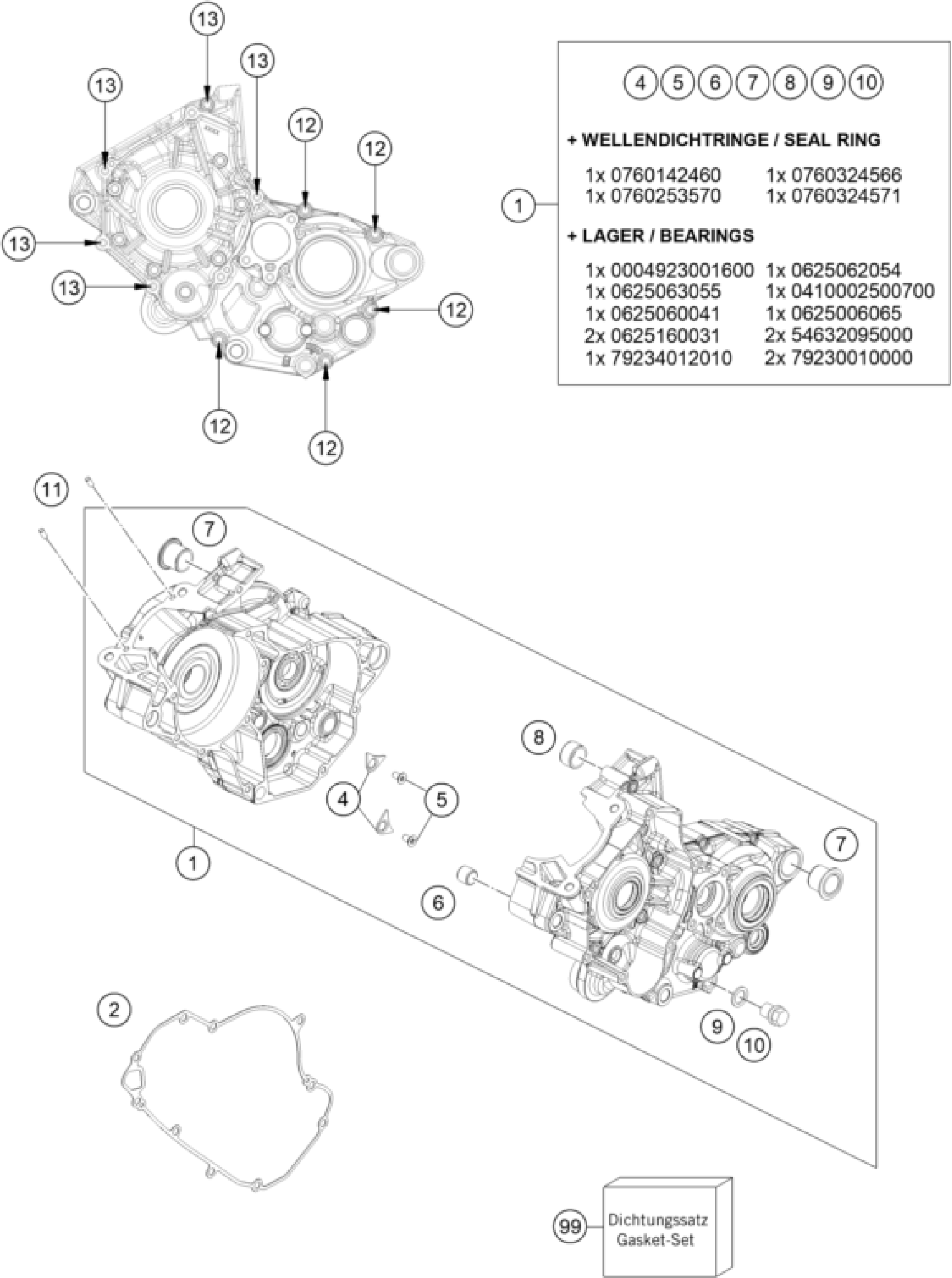

KTM 125 XC-W 2026 ENGINE CASE Diagram

#

Description
Price

1

Engine case cpl.

A42030000244

Unavailable

2

Clutch cover gasket, inner

A42030025000

Unavailable

4

Retaining bracket crankshaft b

75030085100

Unavailable

5

hex lobe countersunc screw M5x

0019050106S

Unavailable

6

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

7

Housing bush

79230010000

Unavailable

8

Dowel, 21x12

54830027100

Unavailable

9

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

10

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

11

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

12

HH collar screw M6x50 TX30

0025060506

Unavailable

13

HH collar screw M6x25 TX30

0025060256

Unavailable

99

Gsket kit Engine MX 125

A42030099000

Unavailable
