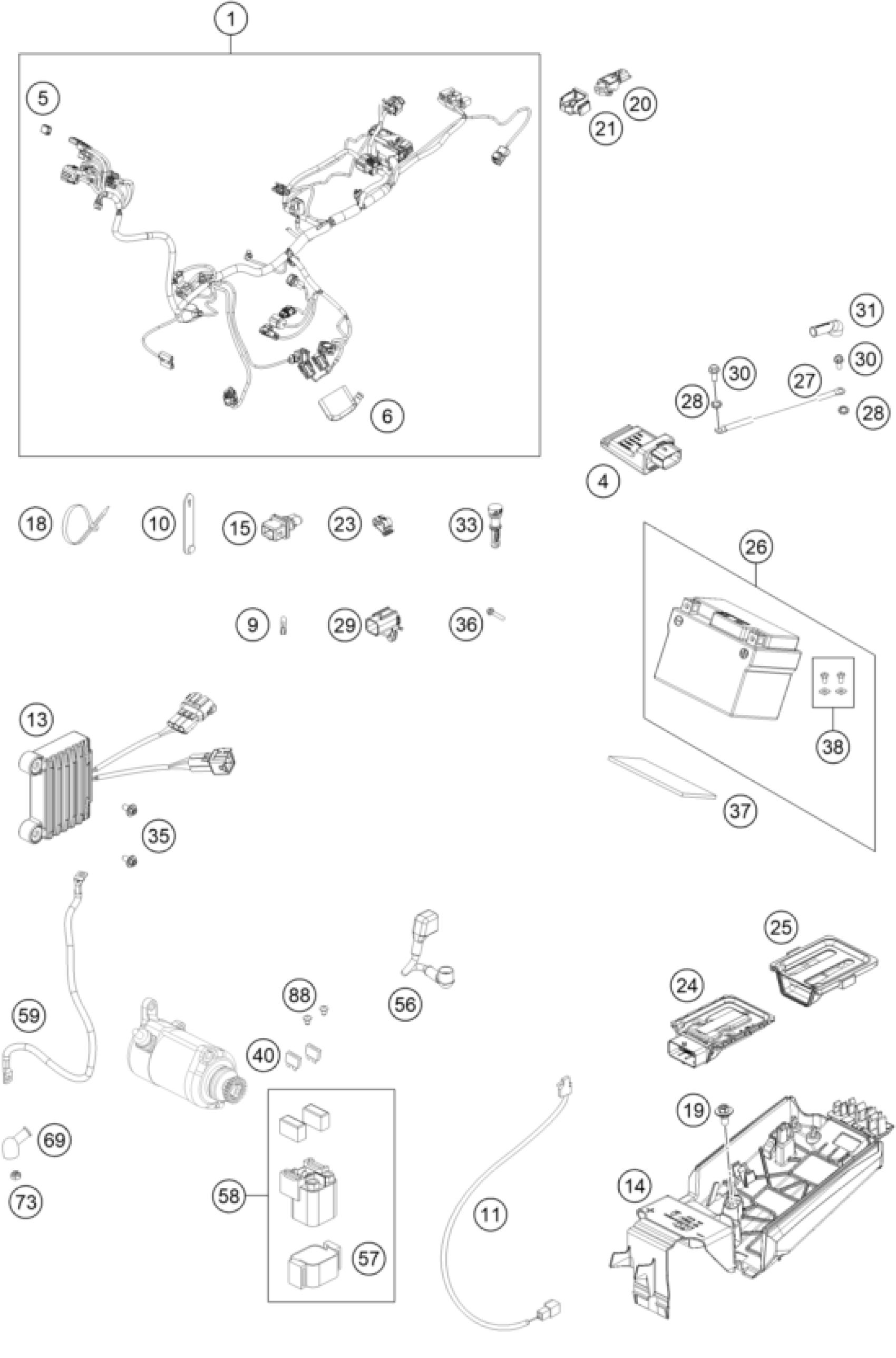

KTM 125 XC-W 2025 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

A45011075000

Unavailable

4

Offroad-control-unit 1.0

A49011033033

Unavailable

5

dummy plug

000700000LP001

Unavailable

6

Injection valve protection

A42041025000

Unavailable

9

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

10

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

11

BRAKE LIGHT SWITCH FRONT 2014

77711050000

Unavailable

13

Voltage regulator

A49011034000

Unavailable

14

Battery holding bracket

A46011055100

Unavailable

15

Dummy plug LV 2p/sealed

000700000LV001

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

19

special screw M6x12x3

83008000012

Unavailable

20

crank case pressure sensor

A45041075000

Unavailable

21

Rubber band, crankcase pressur

A45041075010

Unavailable

23

Line guide

83013026000

Unavailable

24

Engine control unit

A45041031000

Unavailable

25

Engine control unit rubber

A45041031050

Unavailable

26

battery 12V/24Wh

79111053000

Unavailable

27

Ground wire

75011097100

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

29

Plug cap

000700000OU002

Unavailable

30

HH collar screw M5x12 TX30

0025050126

Unavailable

33

Holder control unit

55641030000

Unavailable

35

COLLAR SCREW M6X12 TX

0023060123

Unavailable

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

38

screw kit

79111053010

Unavailable

40

Plug-in fuse, big 20A

58011109120

Unavailable

56

Battery cable cmpl.

A46011059050

Unavailable

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

Starter cable

A44011059000

Unavailable

69

Protection cap for starter eng

77240099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

Starter relay cap short

25140097000

Unavailable
