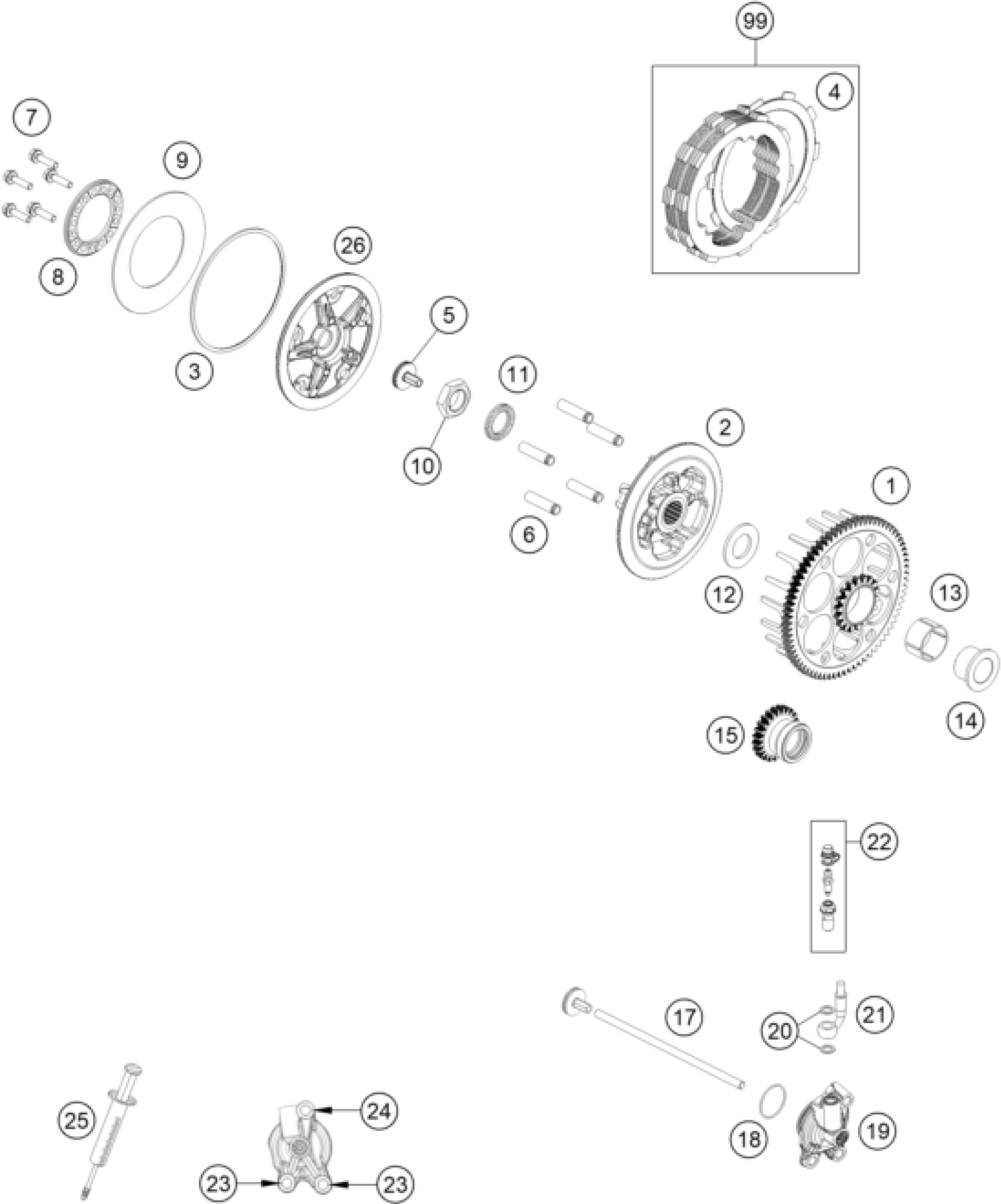

KTM 125 XC-W 2025 CLUTCH Diagram

#

Description
Price

1

clutch basket SX

50532001073

Unavailable

2

Inner clutch hub

50532002000

Unavailable

3

Inner ring

50532013000

Unavailable

4

Friction plate 1.95 mm

50532011000

Unavailable

5

PRESSURE PIECE CPL.

78132057144

Unavailable

6

Sleeve 7.95x31.65

50532004000

Unavailable

7

HH collar screw M5x20 TX30

0025050206

Unavailable

8

Spring plate

50532006000

Unavailable

9

Clutch spring

50532005000

Unavailable

10

Hex nut DIN0936-M18x1.5 right

0936181506

Unavailable

11

Wedge lock washer 19.5x29x3.4

0252012002900

Unavailable

12

Supporting plate 20x36x2.5

50532017000

Unavailable

13

Needle cage K263017

0405263017

Unavailable

14

Collar 20x26x19,5

50532015000

Unavailable

15

gear primary drive

50532023023

Unavailable

17

Push rod

A42032054000

Unavailable

18

O-ring 30x1.5 NBR 70

0770300015

Unavailable

19

OUTPUT CYLINDER CPL.

79232061044

Unavailable

20

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

21

CLUTCH PIPE

79232063000

Unavailable

22

BLEEDER SCREW CPL.

79032064000

Unavailable

23

HH collar screw M6x16 TX30

0025060166

Unavailable

24

HH collar screw M6x25 TX30

0025060256

Unavailable

25

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

26

Preasure plate

50532003000

Unavailable

99

Clutch disc pack

50532110033

Unavailable
