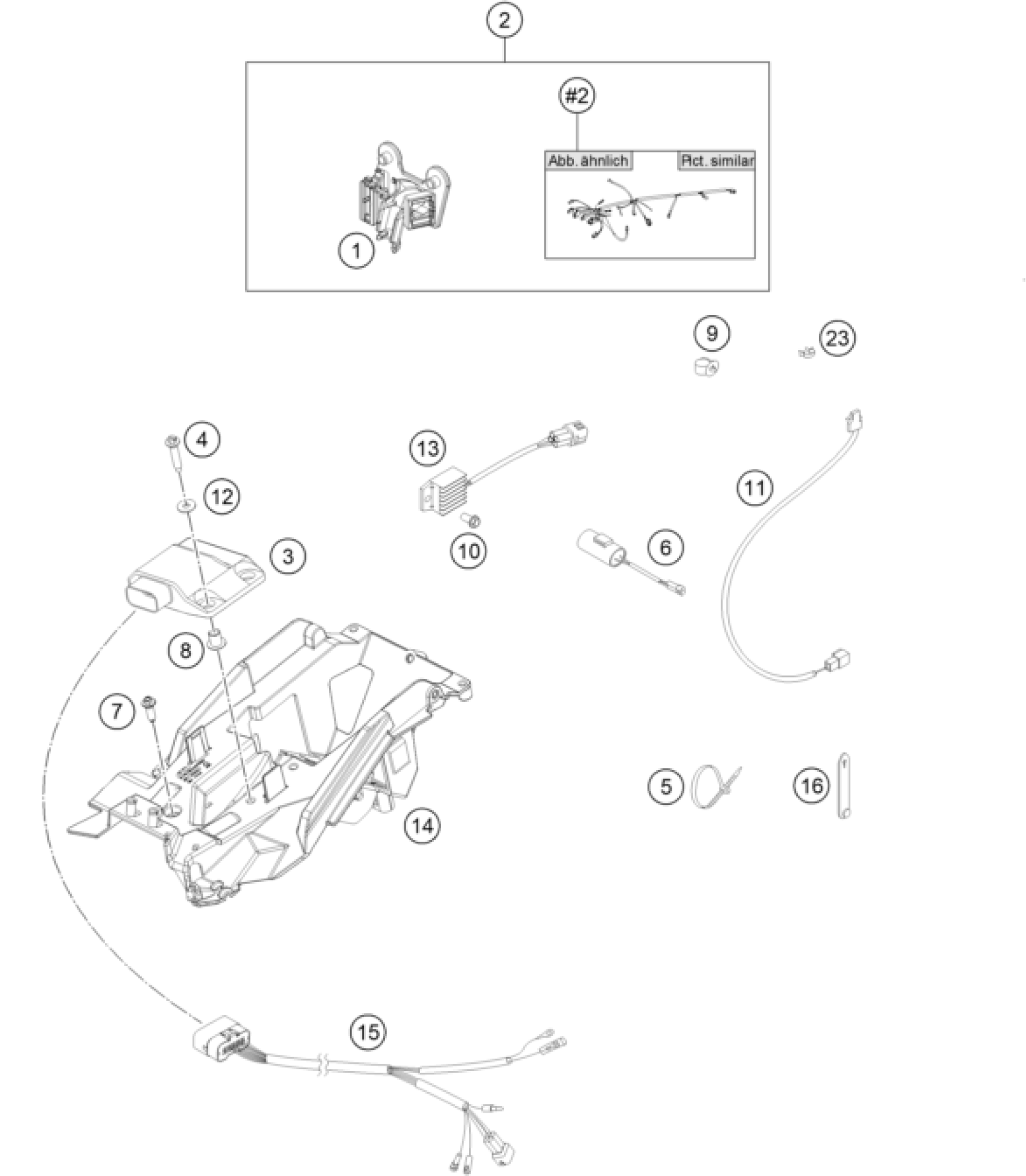

KTM 125 XC-W 2019 WIRING HARNESS Diagram

#

Description
Price

1

SUPPORT BRACKET

77711083000

Unavailable

2

WIRING HARNESS 125 EXC CPL. 14

50311175000

Unavailable

3

Electronic box 125 18

50439231000

Unavailable

4

Special screw K60X30 WS=6

0017060305

Unavailable

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

CONDENSATOR 2200MF ADP-48 2000

50311035000

Unavailable

7

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

8

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

Unavailable

9

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

10

COLLAR SCREW M6X12 TX

0023060123

Unavailable

11

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

12

washer DIN 9021 A - 5.3

0021050003

Unavailable

13

VOLTAGE REGULATOR 04

80011034000

Unavailable

14

BATTERY BOX

79011055100

Unavailable

15

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable

16

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable
