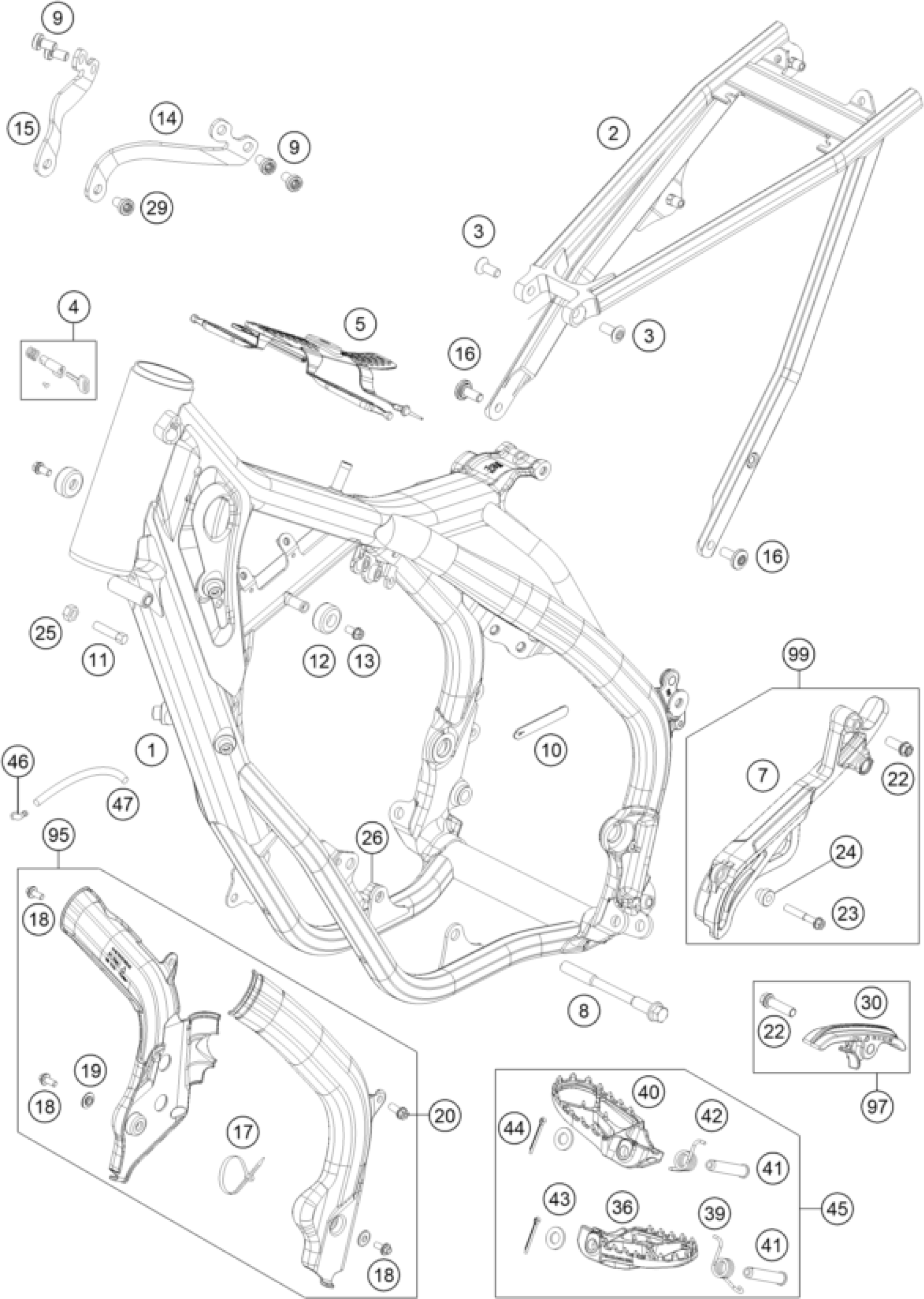

KTM 125 XC-W 2019 FRAME Diagram
#
1
FRAME ''504Q1'' ELEC.ORANGE
50403101100EB
Unavailable
2
SUBFRAME 2016
79003002000
Unavailable
3
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
4
STEERING HEAD LOCK 08
78003035000
Unavailable
5
TANK REST RUBBER
79607012000
Unavailable
7
FRONT CHAIN GUARD 125
50403096000
Unavailable
8
engine brac.scr. M10x115
77203014000
Unavailable
9
AH-COLLAR SCREW M8X15 TORX45
0035080156S
Unavailable
10
RUBBER CABLE TIE 75MM 03
60011093075
Unavailable
11
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
12
TANK ROLLER 12X26X12 '98
50307014000
Unavailable
13
COLLAR SCREW M6X13 ISA30
0026060136
Unavailable
14
MOTOR BRACKET LEFT
50403113000
Unavailable
15
MOTOR BRACKET RIGHT
50403114000
Unavailable
16
Special screw M8X18 TORX45 SL
79003003000
Unavailable
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
17
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
18
HH COLLAR SCREW M 5X12 WS=6
0014050123
Unavailable
19
Bush f. frame protection 03
54803092060
Unavailable
20
HH collar screw M6x12 TX30
0025060126
Unavailable
22
HH collar screw M8x30
0025080306
Unavailable
23
HH collar screw M6x40 TX30
0025060406
Unavailable
24
WASHER DIN0125-A 6,4
0125060003
Unavailable
25
Hexagon nut DIN934 M8
0934080003
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
29
SHCS M8x20 TX45
0035080206S
Unavailable
30
Chain slider, lower part, cmpl
79003053000
Unavailable
36
FOOTREST L/S EXC 2017
79603040000
Unavailable
39
FOOTREST SPRING L/S 2016
79003045000
Unavailable
40
FOOTREST R/S EXC 2017
79603041000
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING R/S 2016
79003044000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTREST-SET
79603040033
Unavailable
46
ANGLE PIECE 90 DEGREE M10X1
51030022000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
95
FRAME PROTECTION SET ORANGE
79003094000EB
Unavailable
97
CHAIN SLIDING KIT BELOW CPL.16
79003053010
Unavailable
99
SPROCKET COVER KIT
50403096010
Unavailable
