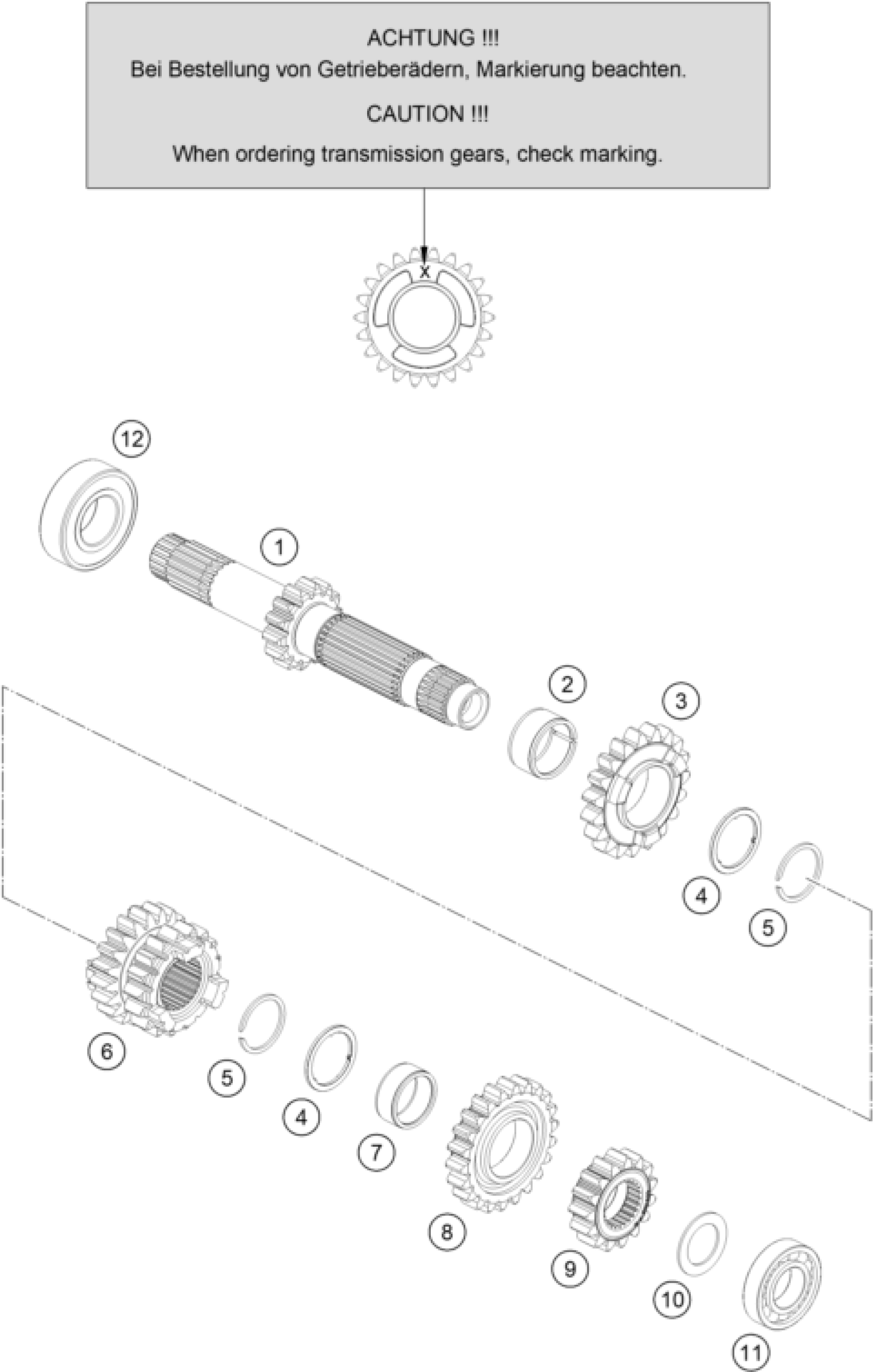

KTM 125 XC-W 2018 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

Drive shaft assy. not=12

50433101100

Unavailable

2

NEEDLE BEARING K21X25X13 SPLIT

0405212513

Unavailable

3

Idler 5th gear, Z=21

50433105200

Unavailable

4

STOP DISK

50433043000

Unavailable

5

LOCK RING 22X1,2

50133090000

Unavailable

6

Sliding gear 3.G/4.G, Z=17/19

50433103100

Unavailable

7

NEEDLE BEARING K20X24X10

0405202410

Unavailable

8

Idler 6th gear, not=20

50433106100

Unavailable

9

Idler 2nd gear not=31

50433102100

Unavailable

10

STOP DISC 17,2X26X1 B

50333041000

Unavailable

11

GROOVED BALL B. 16003 C4 J1

0625160031

Unavailable

12

BALL BEARING 6004 TNH C3

0625060041

Unavailable
