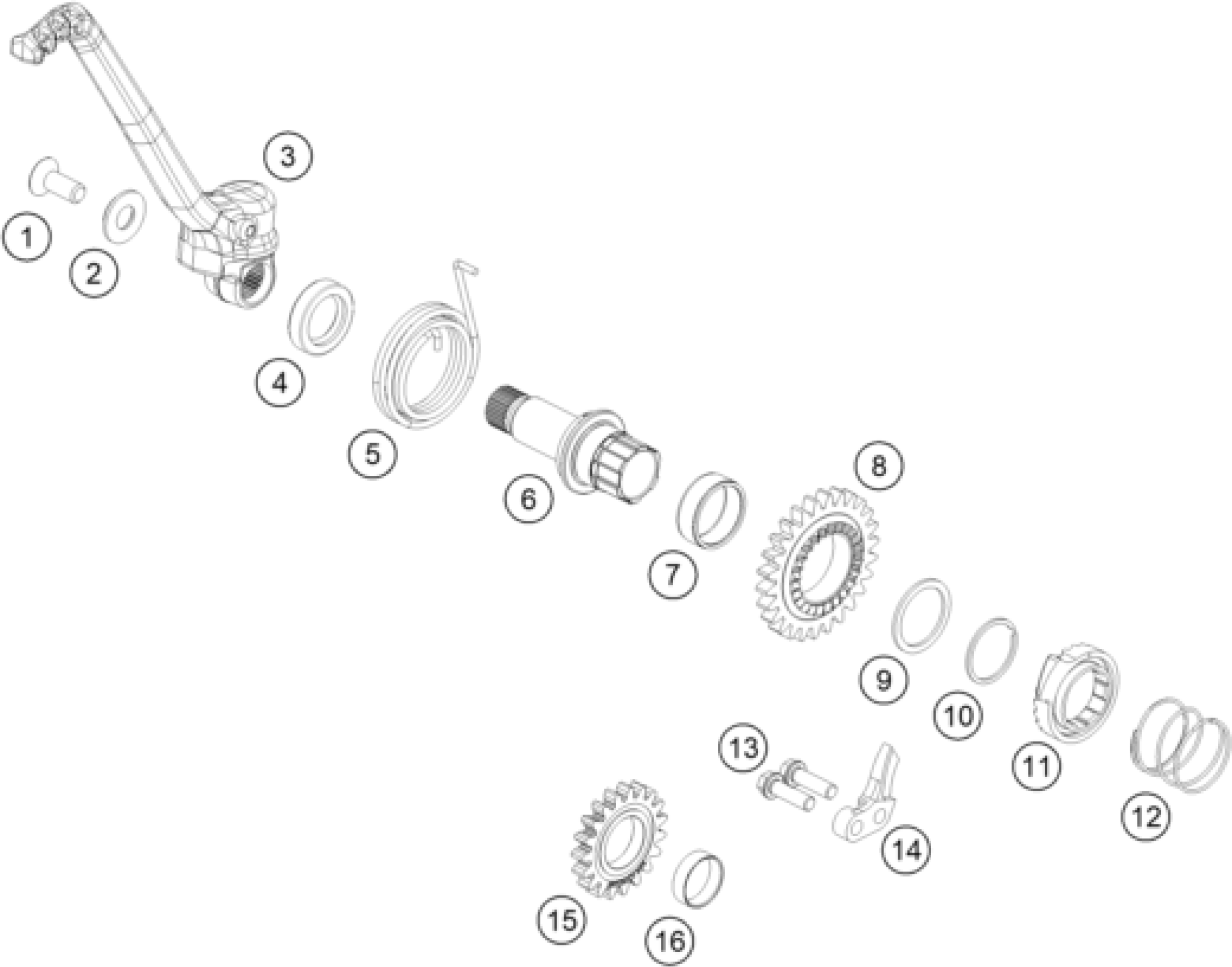

KTM 125 XC-W 2017 KICK STARTER Diagram

#

Description
Price

1

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

2

WASHER 8MM GALVANIZED

54633037000

Unavailable

3

KICKSTARTER CPL.

50433070044

Unavailable

4

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

5

KICK STARTER SPRING

50433054100

Unavailable

6

KICK STARTER SHAFT

79233050000

Unavailable

7

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

8

KICK STARTER WHEEL 26T

50433051026

Unavailable

9

STOP DISC 25X31X1,5

54833044000

Unavailable

10

CIRCLIP SW25

0417025000

Unavailable

11

KICK STARTER RATCHET

50433052000

Unavailable

12

RATCHET GEAR SPRING 1,2 MM

58033028000

Unavailable

13

HH collar screw M6x20 TX30

0025060206

Unavailable

14

BUMP PART

59033069000

Unavailable

15

STARTER INTERMEDIATE GEAR 19T

50433053019

Unavailable

16

BUSHING IDLER GEAR

50433024050

Unavailable
