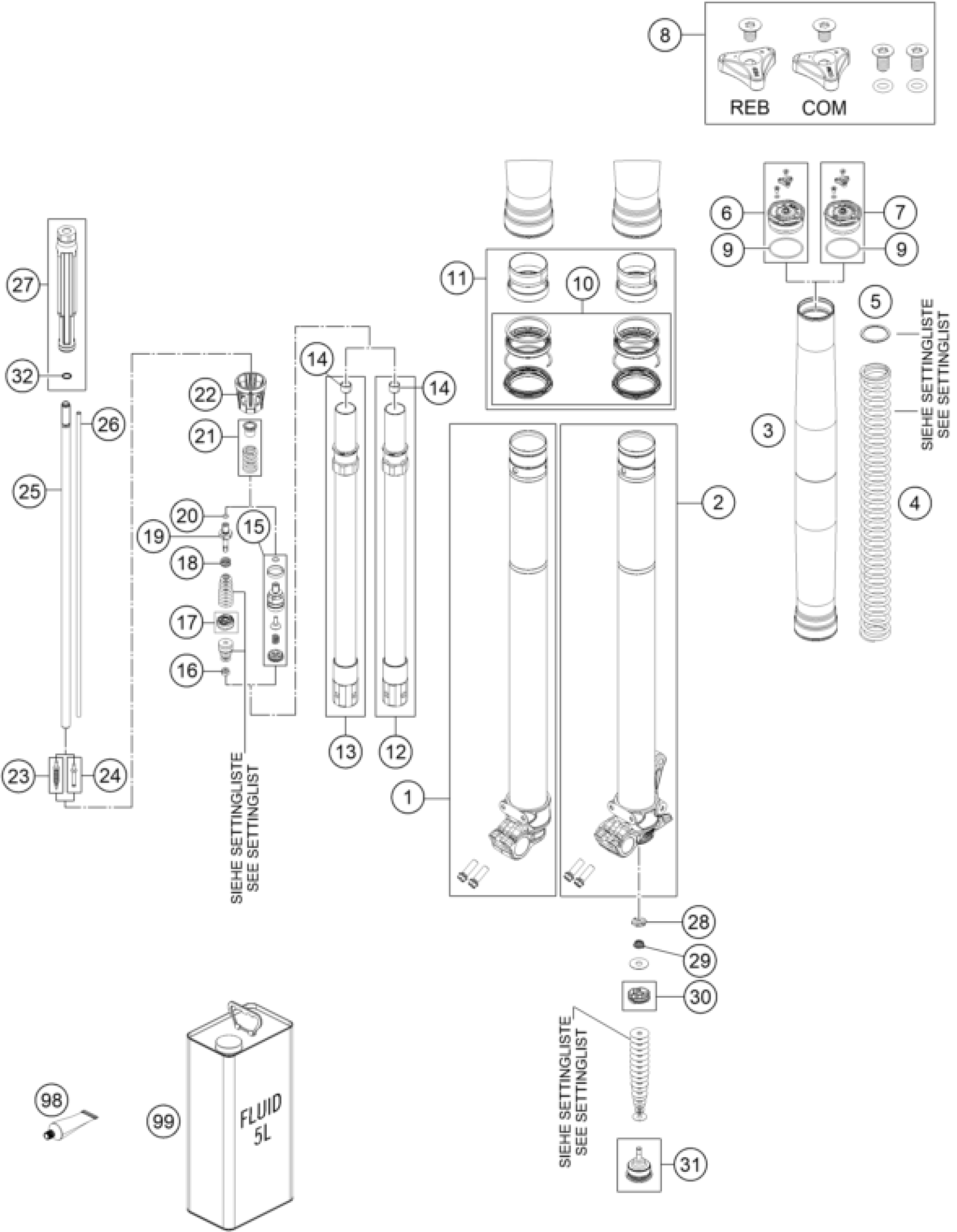

KTM 125 XC-W 2017 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

4

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

4

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

4

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

4

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

4

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

1

AXLE CLAMP OC R/S CPL. & TUBE

48601633S1

Unavailable

2

AXLE CLAMP OC L/S CPL. & TUBE

48601632S1

Unavailable

3

Fork outer tube 49,13x577 dt54

48600736

Unavailable

4

SPRING 3,8N/MM SET D=4,9MM

91410099S

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Screw cap M51x1,5 rebound cpl.

48601631S

Unavailable

7

Screw cap M51x1,5 compression

48601630S

Unavailable

8

SCREW CAP SMALL PART KIT

R14033

Unavailable

9

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

10

Repair kit fork 48mm

R14046

Unavailable

11

Fork repair kit 48mm offroad

R14063

Unavailable

12

PIPE&THREADED SLEEVE WITH HOLE

48600763S1

Unavailable

13

PIPE & THREADED SLEEVE

48600763S2

Unavailable

14

Guide bushing 12x14x10

48600430

Unavailable

15

Assembly compression tap cpl.

48601554S1

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

17

PISTON REBOUND + PISTON RING

48600575S

Unavailable

18

Spring (11,4) 0,4-8 valve

48600382

Unavailable

19

Tap 6x46 rebound

48600576

Unavailable

20

O-ring 6x1,2 NBR70

48600299

Unavailable

21

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

22

Spring retainer 27,08x43x45

48601298

Unavailable

23

Needle 4,5x43,6 cpl.

48600277S

Unavailable

24

Needle 4,5x38,2 cpl.

48601558S

Unavailable

25

Piston rod 12x554

48600568

Unavailable

26

Adjustment tube 6x521,7

48601786

Unavailable

27

Stop 12,4x31,9x200,3 cpl.

48601556S

Unavailable

28

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

29

Spring (8,5) l6,5 valve

48600202

Unavailable

30

Piston 6x27,8x9 compression cp

48600047S

Unavailable

31

Screw cap M29,3x1 OC split cpl

48601553S

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable
