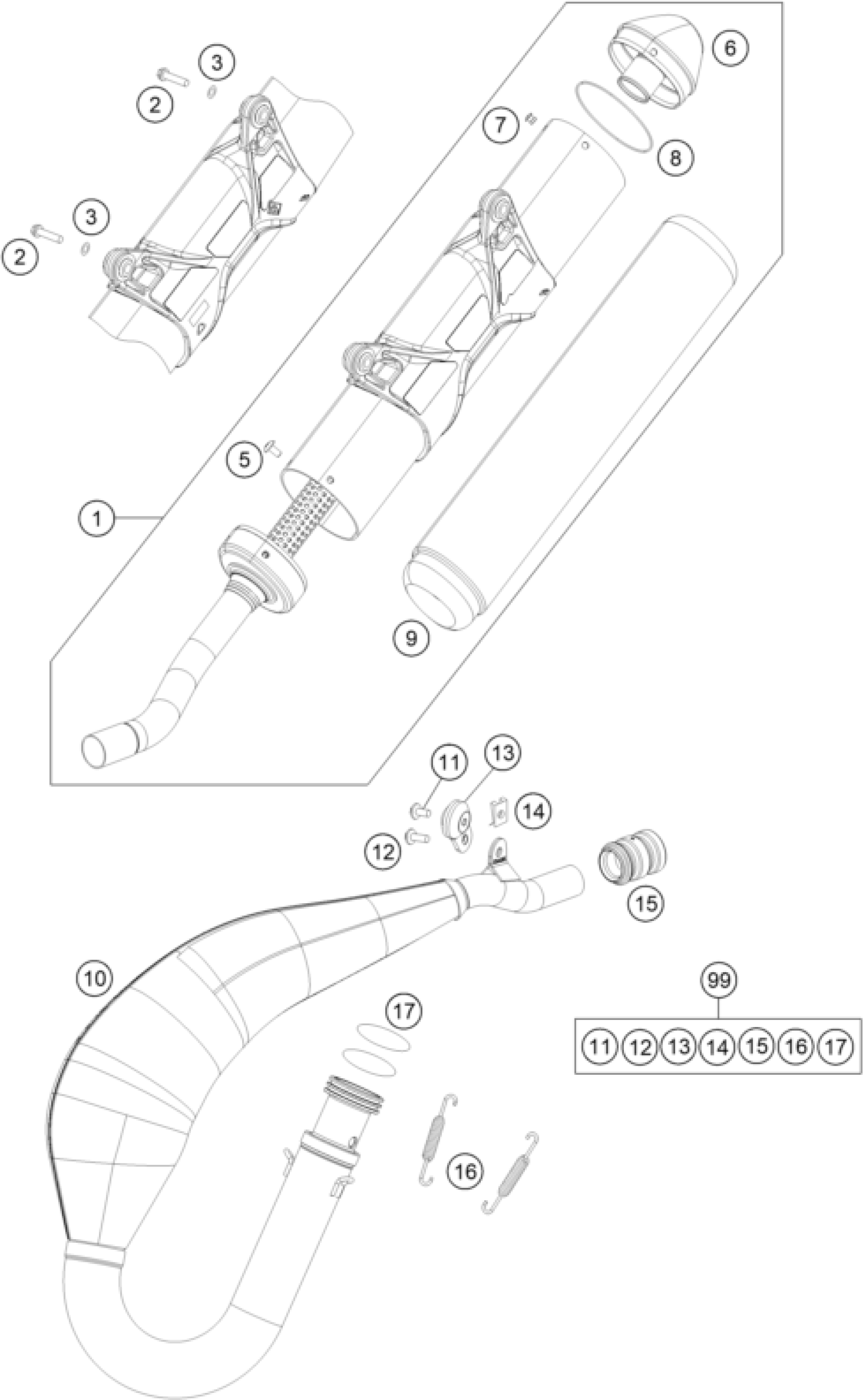

KTM 125 XC-W 2017 EXHAUST SYSTEM Diagram

#

Description
Price

10

EXHAUST PIPE

50405007100

Unavailable

14

clip nut M6

54603048100

Unavailable

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

12

HH collar screw M6x15 TX30

0024060156

Unavailable

7

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

8

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

1

SILENCER 125 EXC

50405083000

Unavailable

2

HH collar screw M6x35 TX30

0025060356

Unavailable

3

Pair of washers M6 NORDLOCK

50233041000

Unavailable

5

SCREW TORX M5X10

78105081010

Unavailable

6

END CAP CPL.

50305083260

Unavailable

9

ROCK WOOL 265G

54805078265

Unavailable

11

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

13

Silent block for exhaust pipe

50305012000

Unavailable

15

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

17

O-ring 38x3 VITON

0770380030

Unavailable

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable
