WIRING HARNESS

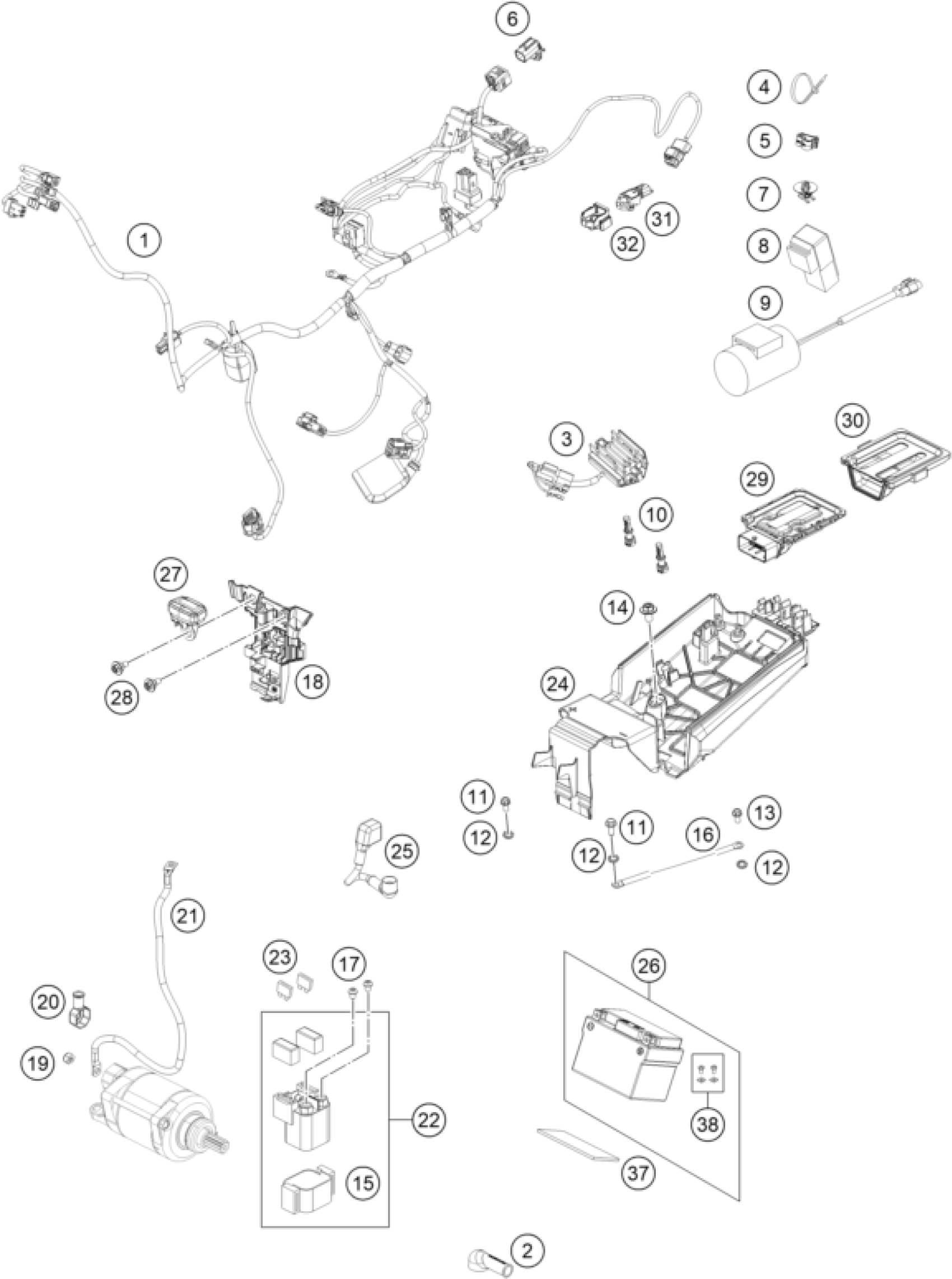

KTM 125 XC 2025 WIRING HARNESS Diagram
#
1
Main wiring harness
A44011075200
Unavailable
3
Voltage regulator
77211034000
Unavailable
4
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
4
Cable tie 200/4.6mm black
44011076200
Unavailable
4
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
5
Line guide
83013026000
Unavailable
6
Plug cap
000700000OU002
Unavailable
7
Cable bracket d8
79711013010
Unavailable
8
RELAY CM1A-R-12V-H80 07
61111057000
Unavailable
9
Capacitor
77711035000
Unavailable
10
Holder control unit
55641030000
Unavailable
11
HH collar screw M5x12 TX30
0025050126
Unavailable
12
CONTACT WASHER M6 VSV-K6
58411098100
Unavailable
13
Roundhead screw w/ Tx M6x12 mm
0900000601202
Unavailable
14
HH COLLAR SCREW M6X10 TX30
0024060106
Unavailable
15
BRACKET RUBBER F.STARTRELAY 07
58211058050
Unavailable
16
Ground wire
75011097100
Unavailable
17
Oval head screw ISO 7380 M 6X8
0902060083
Unavailable
18
Connector support
A46011083000
Unavailable
19
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
20
Protection cap for starter eng
77240099000
Unavailable
21
Starter cable
A44011059000
Unavailable
22
Starter reley 12V 99
58211058000
Unavailable
23
Plug-in fuse, big 10A
58011109110
Unavailable
24
Battery holding bracket
A46011055000
Unavailable
25
Battery cable cmpl.
A46011059050
Unavailable
26
battery 12V/24Wh
79111053000
Unavailable
27
Dashboard
A46014069000
Unavailable
28
Special screw M6x15x5.5
83008100015
Unavailable
29
Engine control unit
A45041031000
Unavailable
30
Engine control unit rubber
A45041031050
Unavailable
31
crank case pressure sensor
A45041075000
Unavailable
32
Rubber band, crankcase pressur
A45041075010
Unavailable
37
METAMOLL 90X45X3MM 03
59003001099
Unavailable
38
screw kit
79111053010
Unavailable
2
Starter relay cap short
25140097000
Unavailable
