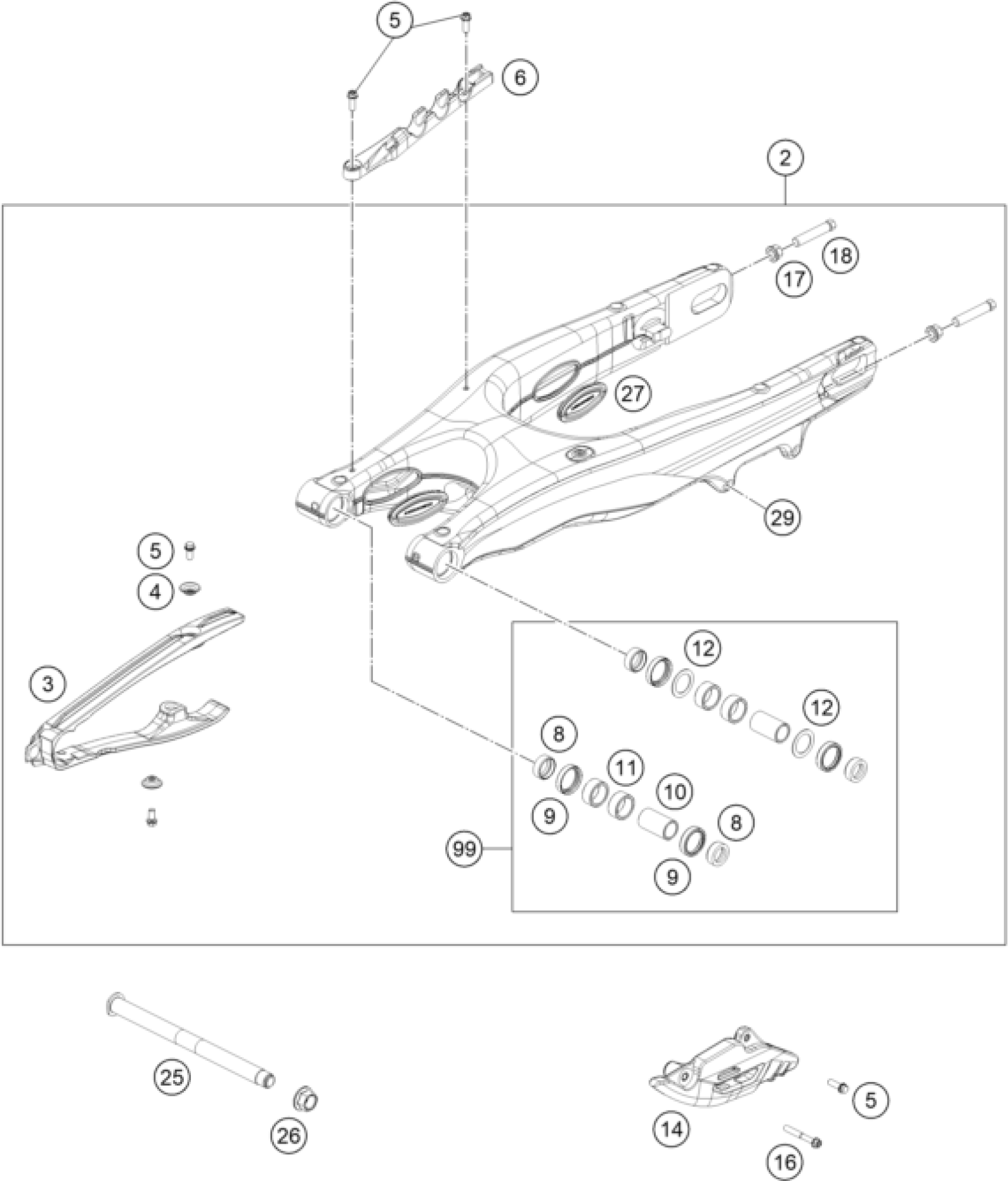

KTM 125 XC 2025 SWING ARM Diagram
#
Description
Price
2
Swingarm cpl
A46004230144
Unavailable
3
Chain slider
A46004066100
Unavailable
4
Chain slider bushing
77304066150
Unavailable
5
HH collar screw M6x16 TX30 SL
0025060166S
Unavailable
6
Brake line guide
A46004042000
Unavailable
8
Support f. shaft seal ring 16
77704034000
Unavailable
9
radial shaft seal 25x32x7
0760253270
Unavailable
10
Bearing sleeve 17x22x38.7 03
59404032000
Unavailable
11
Needle bushing HK2212V 22/28/1
0618222812
Unavailable
12
STOP DISK 22,2X31,7X1
54603036000
Unavailable
14
Chainguide SX
A46004070000
Unavailable
16
HH COLLAR SCREW M6X45 TX30
0025060456
Unavailable
17
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
18
screw M10x1.25x50 WS10
50304040100
Unavailable
25
Swingarm pivot
A46004037000
Unavailable
26
Nut with flange M16X1,5 WS=19
54804038000
Unavailable
27
Locking cap swingarm
A46004041000
Unavailable
29
PRESS IN NUT M6 STEEL ZINC
54603055051
Unavailable
99
Repair kit swingarm bearing
79004030110
Unavailable
