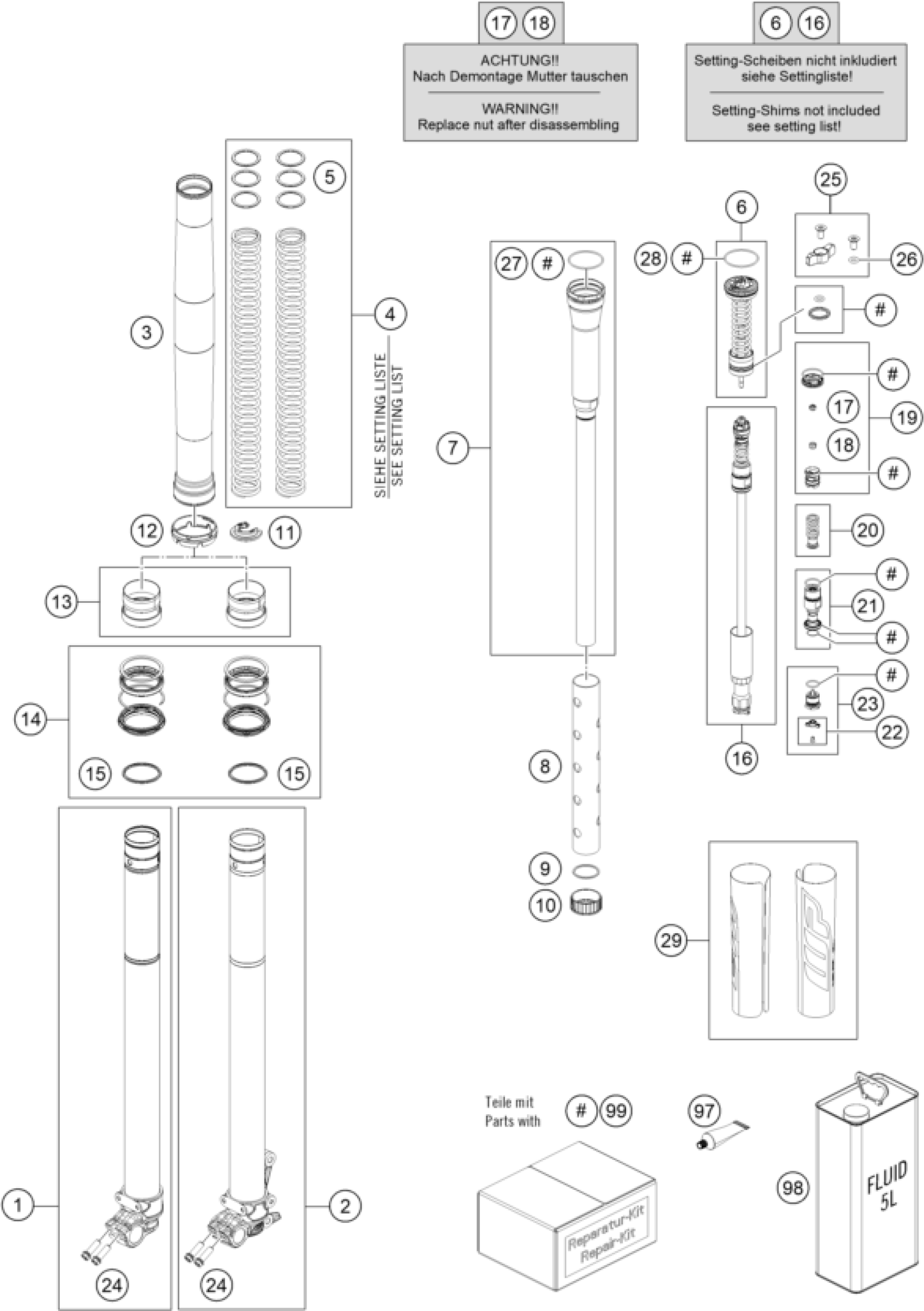

KTM 125 XC 2024 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. with inner tube

48602046S2

Unavailable

2

Axle clamp le. with inner tube

48602045S2

Unavailable

3

fork outer tube 49.13x577 dt54

48602096

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Compression cmpl.

S043400000S0200

Unavailable

8

Tube 35x38x277

S53360000000000

Unavailable

9

Washer 33,5x38x1,5

48600752

Unavailable

10

Spring seat 33.5x44.5x18.5

S82890000200000

Unavailable

11

Spring seat D44 clip

S82890000100000

Unavailable

12

Fork protection ring 59,8mm

S639200001000FA

Unavailable

13

Guide bushing set fork 48mm

R14047T

Unavailable

14

"Seal kit 48mm SKF black"

RP10012T

Unavailable

15

Stroke indicator 48mm red

48602007

Unavailable

17

Nut M6 h5,4 SW10

48602128

Unavailable

18

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

20

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

21

Screw cap M24.5x1 cmpl.

S408800002S0000

Unavailable

22

Repair kit adjuster rebound re

RP10033T

Unavailable

23

adjuster housing M20x1 cpl.

48602052S

Unavailable

24

HH collar screw M8x25

0025080256

Unavailable

25

adjuster kit screw cap compres

RP10029T

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

29

Sticker set, XACT CC 238x182.5

52000318SET

Unavailable

4

main spring (43.8) 3.6-470 for

S809900029S0000

Unavailable

4

main spring (43.8) 3.8-470 for

S809900030S0000

Unavailable

4

main spring (43.8) 4.0-470 for

S809900031S0000

Unavailable

4

main spring (43.8) 4.2-470 for

S809900032S0000

Unavailable

4

main spring (43.8) 4.4-470 for

S809900033S0000

Unavailable

4

main spring (43.8) 4.6-470 for

S809900034S0000

Unavailable

4

main spring (43.8) 4.8-470 for

S809900035S0000

Unavailable

4

main spring (43.8) 5.0-470 for

S809900036S0000

Unavailable

4

main spring (43.8) 5.2-470 for

S809900037S0000

Unavailable

7

Pressure tank M38x0.5 cmpl.

S418900003S0100

Unavailable

16

Piston rod 12.0x397.5 cmpl.

S501200022S0000

Unavailable

19

Repair kit piston CC spring fo

RP10054T

Unavailable

99

Seal kit CC spring fork

RP10055T

Unavailable

27

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

28

O-ring 43x2 NBR70 siliconized

40140024

Unavailable

26

O-ring 4x1,5 NBR70

50180222

Unavailable
