Partiron

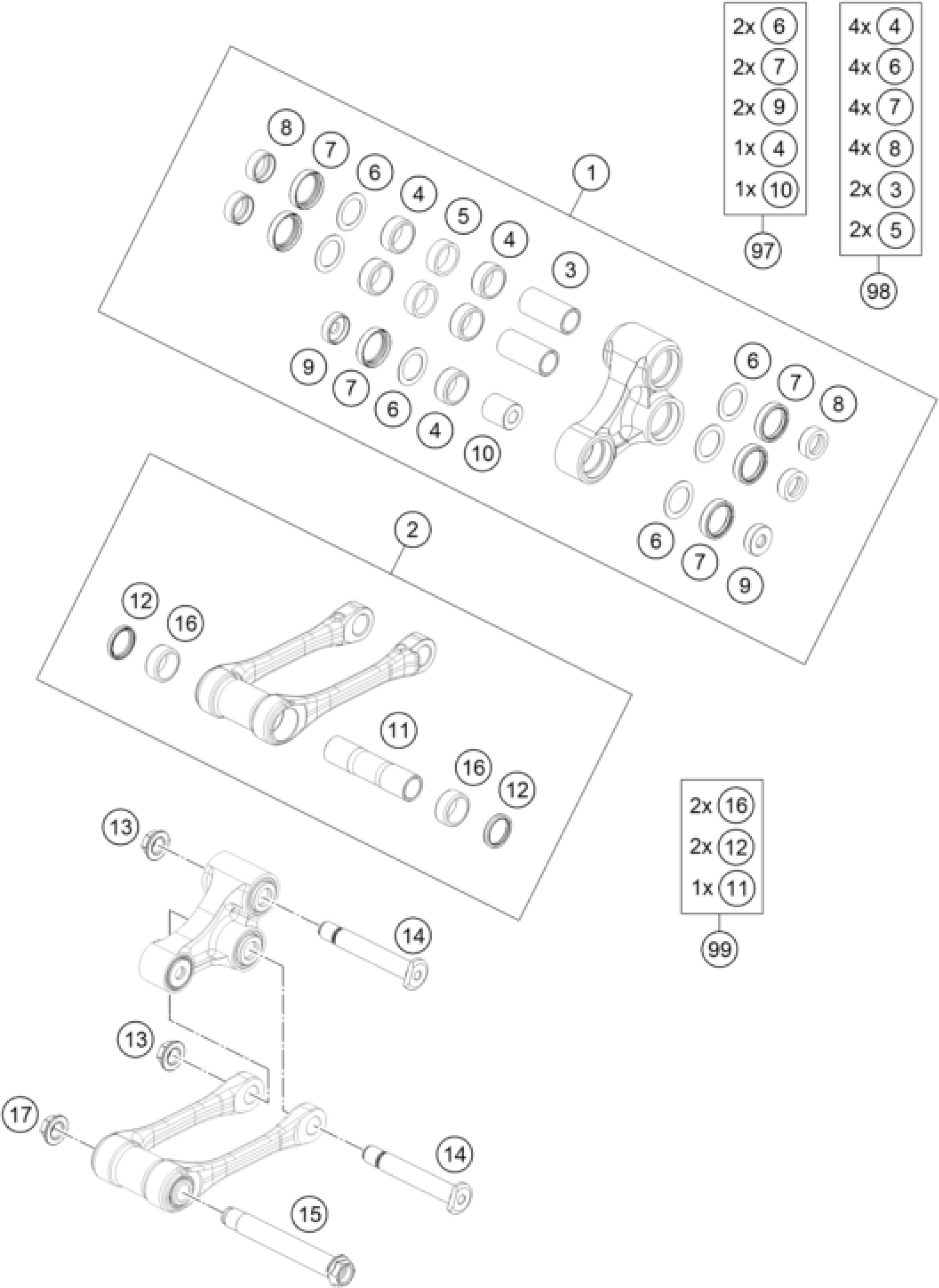

KTM 125 XC 2023 PRO LEVER LINKING Diagram

#

Description
Price

1

triangular lever SX

A46004080044

Unavailable

2

pullrod cpl.

A46004083044

Unavailable

3

Bearing sleeve 17x22x48

0800001704800

Unavailable

4

Needle bushing HK2212V 22/28/1

0618222812

Unavailable

5

Spacer

0800000902900

Unavailable

6

STOP DISK 22,2X31,7X1

54603036000

Unavailable

7

radial shaft seal 25x32x7

0760253270

Unavailable

8

Support f. shaft seal ring 16

77704034000

Unavailable

9

Bucket for shaft seal ring

A46004134000

Unavailable

10

Bearing sleeve 10x22x24.5

0800001002501

Unavailable

11

Bearing sleeve for pull rod

0800001708900

Unavailable

12

Radial shaft seal G22x28x4

0760222841

Unavailable

13

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

14

Pin, triangle lever M16x1,5

A46004085000

Unavailable

15

pin pull rod M16x1,5

A46004084000

Unavailable

99

repair kit pull rod

A46004083010

Unavailable

97

repair kit triangular cenitlev

A46004080010

Unavailable

98

repair kit triangular cenitlev

A46004080020

Unavailable

16

NEEDLE BEARING HK 2216

58033097000

Unavailable

17

Hex nut flange M16x1.5 SW19

0910001601300

Unavailable
