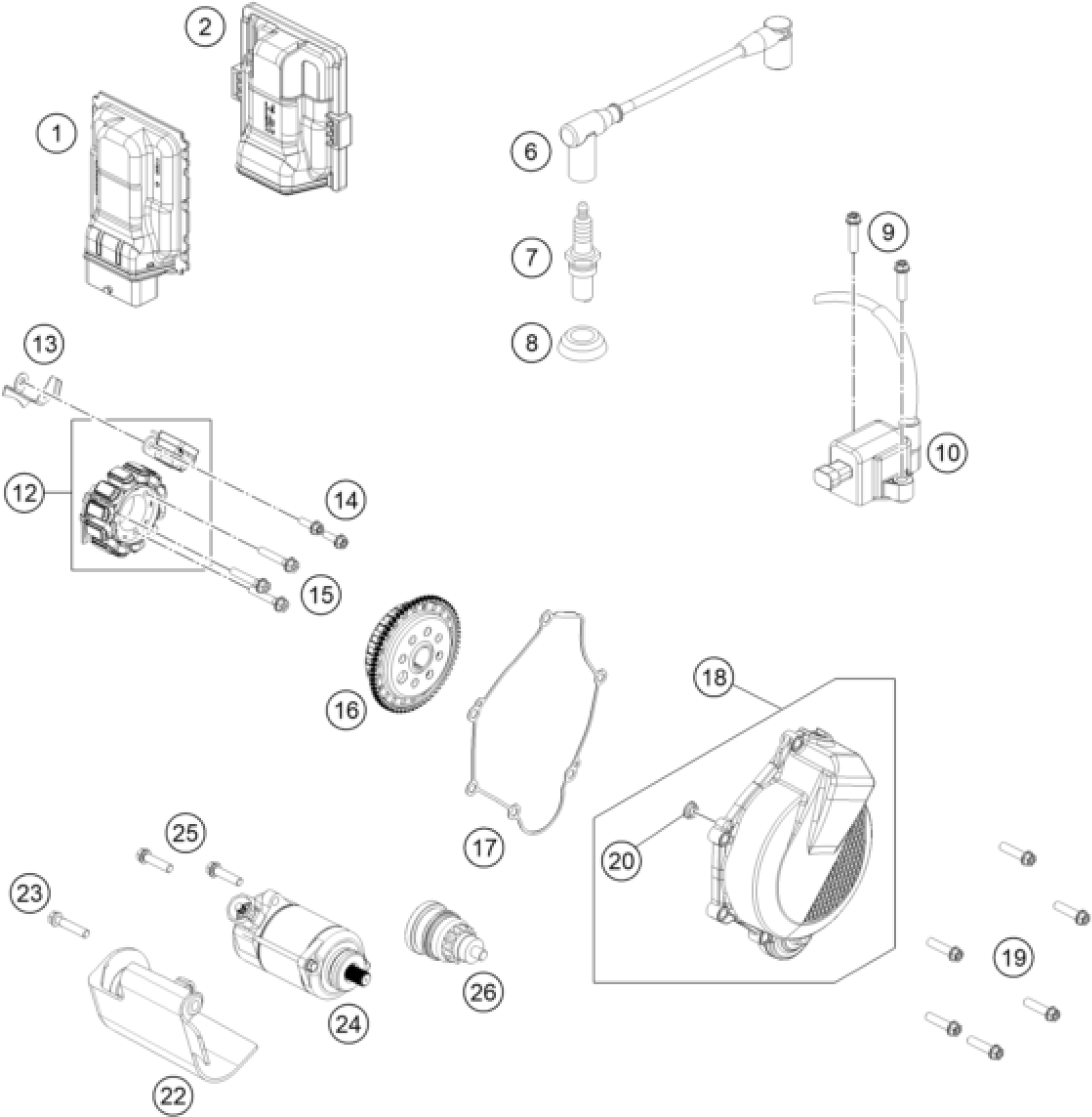

KTM 125 XC 2023 IGNITION SYSTEM Diagram

#

Description

Price

1

Engine control unit

A45041031000

Unavailable

2

Engine control unit rubber

A45041031050

Unavailable

6

Ignition wire

A44039007000

Unavailable

7

SPARK PLUG

47039093000

Unavailable

8

Sealing boot

51739091000

Unavailable

9

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

10

Iginition coil

55639006000

Unavailable

12

Stator

79239404000

Unavailable

13

Cable retainer

A46030002050

Unavailable

14

HH collar screw M5x16 TX30

0025050166

Unavailable

15

Bolt DIN 6912 - M5x25 SS

0012050253S

Unavailable

16

Rotor

A42039405000

Unavailable

18

Ignition cover cmpl.

A42030002044C1

Unavailable

19

HH collar screw M6x20 TX30

0025060206

Unavailable

17

Ignition cover gasket

A42030040000

Unavailable

22

Starter motor cover

A42040040000

Unavailable

23

HH collar screw M6x30 TX30

0025060306

Unavailable

24

Starter motor

A42040001000

Unavailable

26

BENDIX

50440026000

Unavailable

25

HH collar screw M6x25 TX30

0025060256

Unavailable

20

Collar bushing

55540031000

Unavailable
