CYLINDER, CYLINDER HEAD

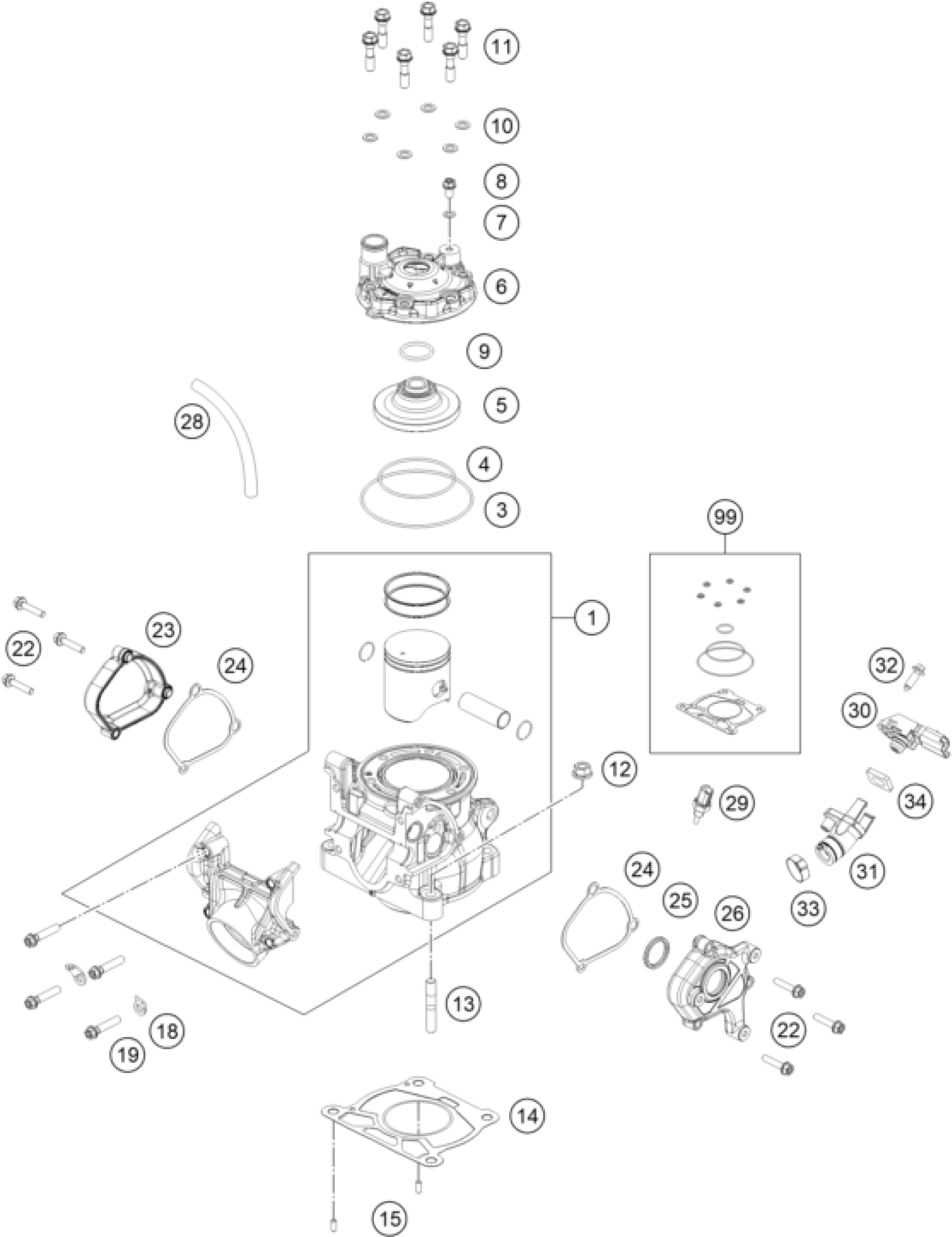

KTM 125 XC 2023 CYLINDER, CYLINDER HEAD Diagram
#
1
cylinder + piston kpl. 125 MX
A42030038000
Unavailable
3
O-RING 89X2 NBR 70 SH
0770890200
Unavailable
4
O-RING 60X2 FPM 75SH
0770600200
Unavailable
5
Combustion chamber insert
A42030060000
Unavailable
6
Cylinder head
A42030006100
Unavailable
7
CU-SEAL RING DIN7603-6X10X1
0603061001
Unavailable
8
HH collar screw M6x10 TX30
0025060106
Unavailable
9
O-ring 23.00X2.5 NBR 70 SH
07702300251
Unavailable
10
CU-SEAL RING DIN7603- 7,3X12X1
0603070121
Unavailable
11
CYLINDER HEAD SCREW
50430079000
Unavailable
12
HH COLLAR NUT M 8 WS=12
50330045000
Unavailable
13
STUD DIN 835 M8X32
0835080326
Unavailable
14
Cylinder base gasket
A42030035020
Unavailable
14
Cylinder base gasket
A42030035025
Unavailable
14
Cylinder base gasket
A42030035030
Unavailable
14
Cylinder base gasket
A42030035040
Unavailable
14
Cylinder base gasket
A42030035040
Unavailable
14
Cylinder base gasket
A42030035050
Unavailable
15
Needle roll.DIN5402 NRB 4X9.8
0402040980
Unavailable
18
RETAINING PLATE
51005074000
Unavailable
19
HH collar screw M6x25 TX30
0025060256
Unavailable
23
exhaust regulation cover rh
A42037007000
Unavailable
24
Gasket, control lid left
A42037006000
Unavailable
25
X-ring 21.89x2.62 FKM 70
0770002226200
Unavailable
26
exhaust regulation cover lh
A42037005000
Unavailable
22
HH COLLAR SCREW M5X25 ISA30
0025050256
Unavailable
28
Engine vent hose
A42030087000
Unavailable
99
Sealkit Cylinder MX 125
A42030097000
Unavailable
29
water temperature sensor
79435047000
Unavailable
30
crank case pressure sensor
A45041075000
Unavailable
31
Pressure sensor flange
A44041087000
Unavailable
32
SCREW F. PLASTIC K60X20AL SW6
0017060206
Unavailable
33
VARIABLE ONE-EAR CLAMP 21,0MM
00050210706
Unavailable
34
Pressure sensor EPDM plate
A45041075050
Unavailable
