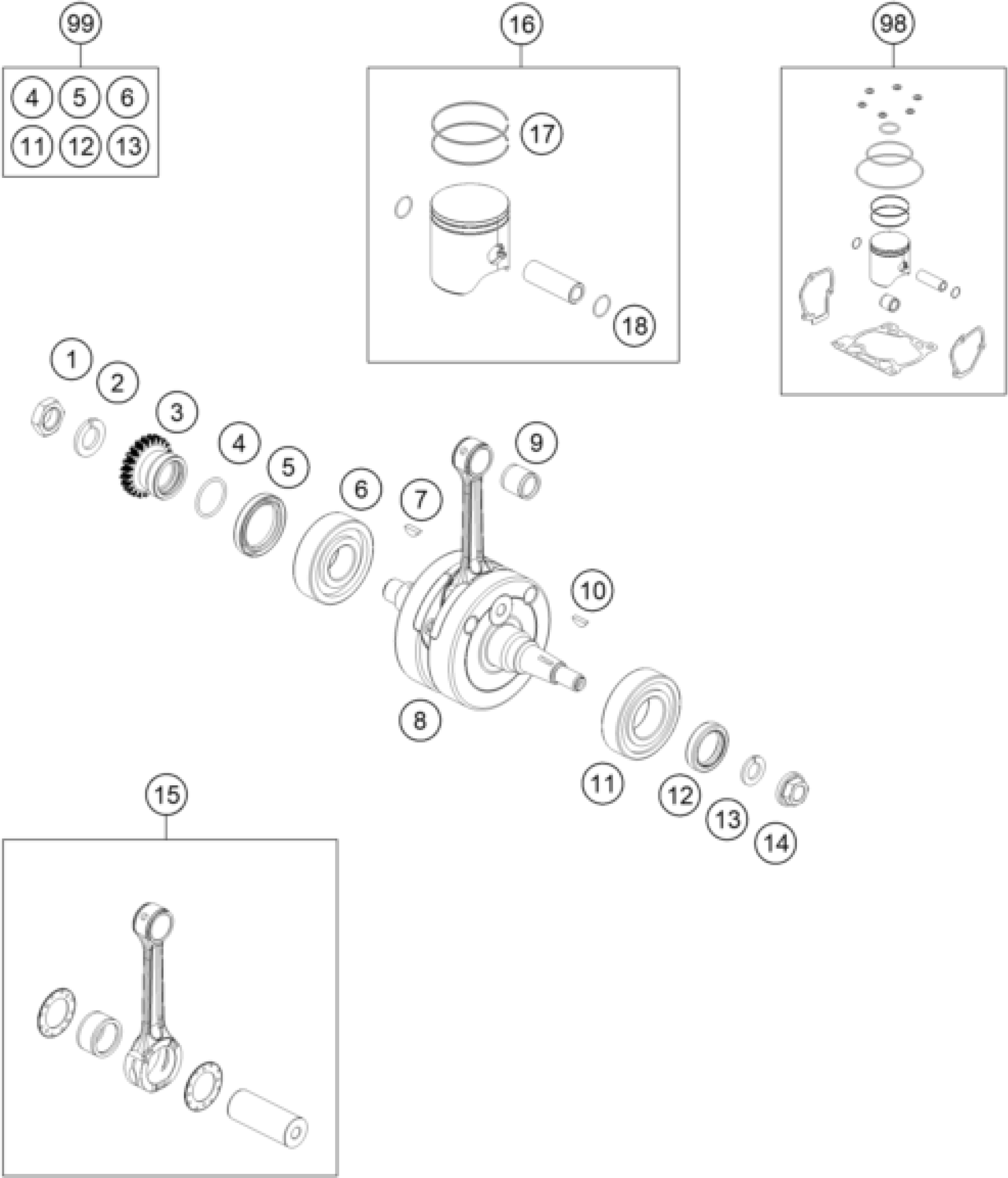

KTM 125 XC 2022 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

HEXAGON NUT M 16 X 1,5 - L/S

50330029000

Unavailable

2

LOCKING RING VSK 16

50230029016

Unavailable

3

gear primary drive

50532023023

Unavailable

4

O-RING 25,00X2,00 NBR 70

0770250020

Unavailable

5

SHAFT SEAL RING 32X45X6,5 BT

0760324564

Unavailable

6

BALL BEARING 6305 JR2 CS36

0625063055

Unavailable

7

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

8

CRANKSHAFT

50430018000

Unavailable

9

NEEDLE BEARING KBK 15X19X20

51030034000

Unavailable

10

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

11

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

Unavailable

12

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

13

LOCKING RING VSK 12

50230029012

Unavailable

14

COLLAR NUT M12X1 R/S

49030021000

Unavailable

15

CON-ROD REPAIR KIT

50430015044

Unavailable

16

Piston I cpl. 125 MX

50530007000 I

Unavailable

16

Piston II cpl. 125 MX

50530007000 II

Unavailable

17

TRAPEZOID RING 125 2008

50330032600

Unavailable

18

WIRE LOCK RING 15X1

50330074500

Unavailable

98

PISTON KIT GR.I 125 MX

00050000245

Unavailable

98

PISTON KIT GR.II 125 MX

00050000246

Unavailable

99

CRANKSHAFT REP. KIT 125-200

00050002300

Unavailable
