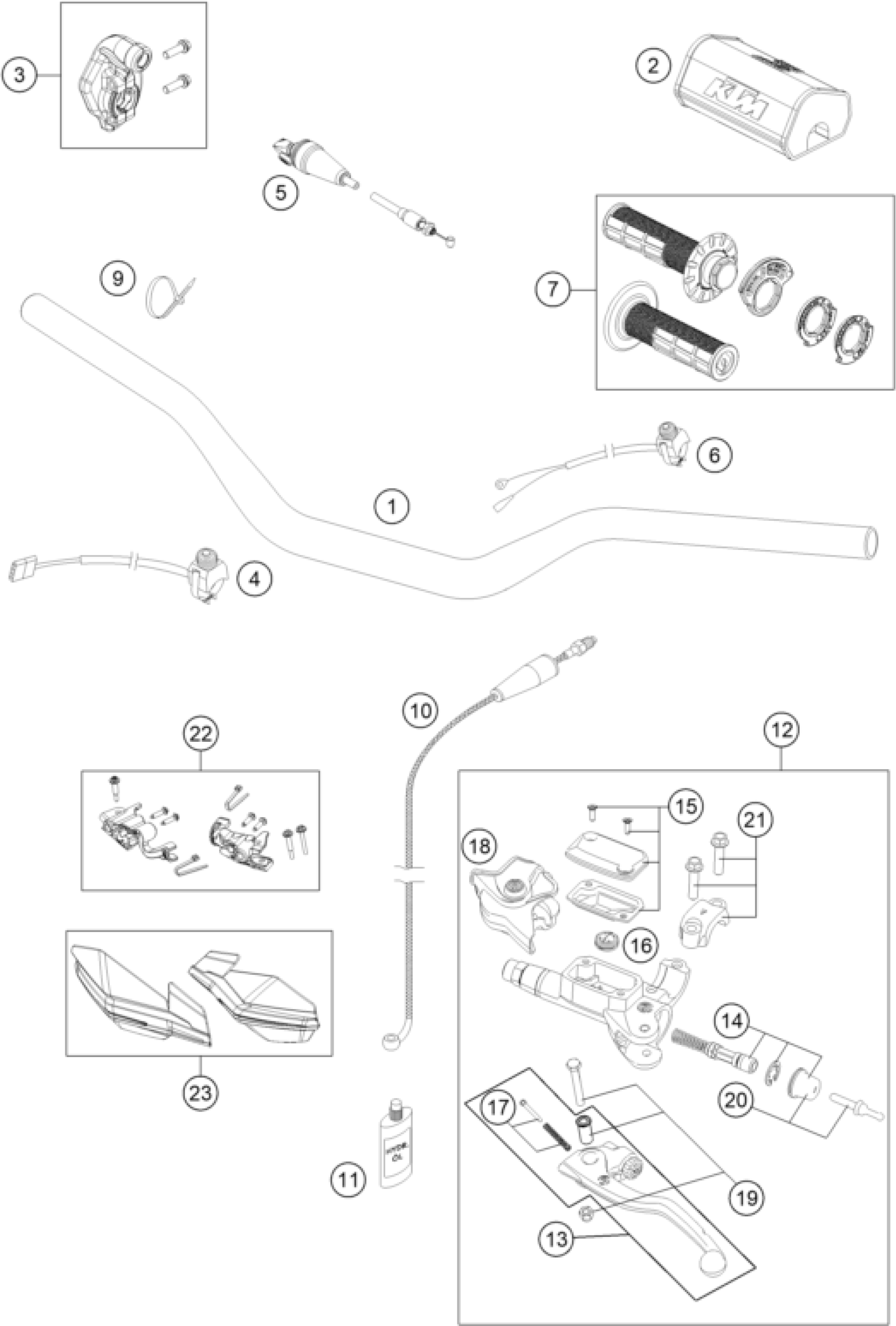

KTM 125 XC 2021 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM

7900200100030

Unavailable

2

Handlebar pad cmpl.

79102002044

Unavailable

3

Housing throttle twist grip cm

51702010044

Unavailable

5

Throttle cable cmpl. 2 stroke

51702091000

Unavailable

6

Kill switch

50311089200

Unavailable

7

GRIP SET

79002021100

Unavailable

9

Cable tie 200/4.6mm black

44011076200

Unavailable

10

CLUTCH PIPE

79232063000

Unavailable

11

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

12

MASTER CYLINDER CPL.

79202030044

Unavailable

13

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

14

REP. KIT PISTON 9MM

79202032044

Unavailable

15

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

16

VALVE

54802051000

Unavailable

17

BOLT KPL.

54802052000

Unavailable

18

PROTECTION CAP 06

54802037000

Unavailable

19

Lever screw cmpl. 06

54802038100

Unavailable

20

Push rod cmpl.

54802046000

Unavailable

21

CLAMP CPL. 06

54802005100

Unavailable

4

STARTER BUTTON GREY 13

78111074000

Unavailable

22

Handguard assembly kit

79602084044

Unavailable

23

Handguard

79602182044EB

Unavailable
