CARBURETOR

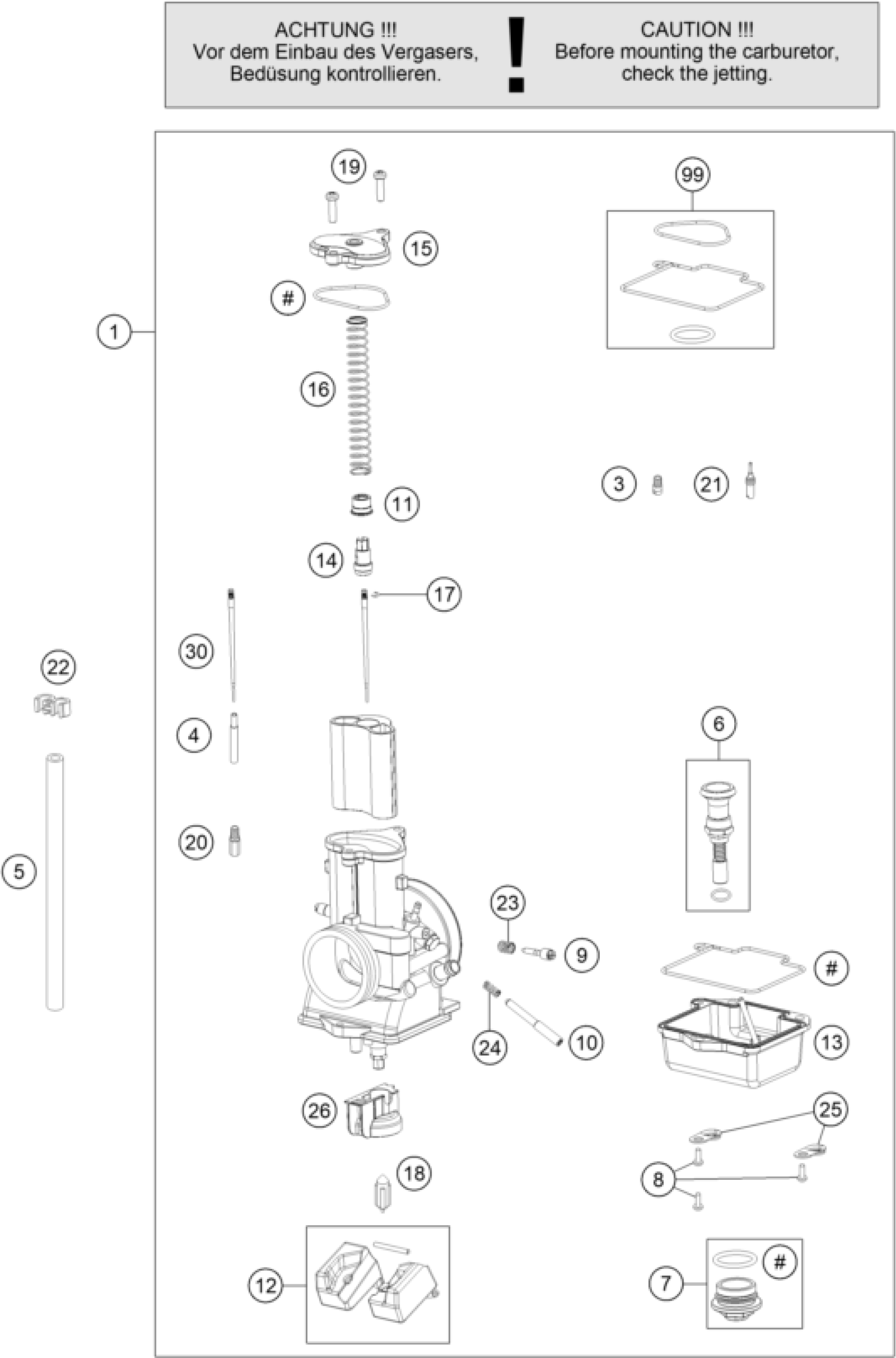

KTM 125 XC 2021 CARBURETOR Diagram
#
1
CARBURETOR TMX38
55431001244
Unavailable
3
STARTING JET ''50''
55431051050
Unavailable
3
STARTING JET ''80''
55431051080
Unavailable
4
NEEDLE JET ''S-1''
55431021100
Unavailable
4
Needle jet S-4
55431021400
Unavailable
5
PVC-HOSE 4X6MM
31007007101
Unavailable
5
PVC-HOSE 3X5MM
52031137001
Unavailable
6
start piston
55431245000
Unavailable
7
SCREW PLUG CPL.
55431699000
Unavailable
8
HH COLLAR SCREW M 5X16 WS=6
0014050163
Unavailable
9
Adjuster
55431017000
Unavailable
10
Adjuster
55431019000
Unavailable
11
RING
55431034050
Unavailable
12
FLOAT & PIN
55431009000
Unavailable
13
FLOAT CHAMBER CPL.
55431011000
Unavailable
14
GUIDE HOLDER
55431030050
Unavailable
15
CARBURETTOR COVER
55431027000
Unavailable
16
SLIDING SPRING MIKUNI
55431030000
Unavailable
17
LOCK RING
55431034060
Unavailable
18
FLOAT NEEDLE CPL.
55431020000
Unavailable
19
screw carburator cover
55431025000
Unavailable
20
MAIN JET ''100''
55431029100
Unavailable
20
MAIN JET ''155''
55431029155
Unavailable
20
MAIN JET ''400''
55431029400
Unavailable
20
MAIN JET ''410''
55431029410
Unavailable
20
MAIN JET ''420''
55431029420
Unavailable
20
MAIN JET ''430''
55431029430
Unavailable
20
MAIN JET ''440''
55431029440
Unavailable
20
MAIN JET ''450''
55431029450
Unavailable
20
MAIN JET ''460''
55431029460
Unavailable
20
MAIN JET ''470''
55431029470
Unavailable
20
MAIN JET ''480''
55431029480
Unavailable
20
MAIN JET ''490''
55431029490
Unavailable
20
MAIN JET ''500''
55431029500
Unavailable
20
MAIN JET ''520''
55431029520
Unavailable
20
MAIN JET ''540''
55431029540
Unavailable
20
MAIN JET ''560''
55431029560
Unavailable
20
MAIN JET ''580''
55431029580
Unavailable
20
MAIN JET ''600''
55431029600
Unavailable
21
IDLING JET ''15''
55431007150
Unavailable
21
IDLING JET ''17.5''
55431007175
Unavailable
21
Idle jet "22.5"
55431007225
Unavailable
21
Idle jet "25"
55431007250
Unavailable
21
Idle jet "27.5"
55431007275
Unavailable
21
IDLING JET ''30''
55431007300
Unavailable
21
IDLING JET ''32.5''
55431007325
Unavailable
21
IDLING JET ''35''
55431007350
Unavailable
21
IDLING JET ''37.5''
55431007375
Unavailable
21
IDLING JET ''40''
55431007400
Unavailable
21
IDLING JET ''42.5''
55431007425
Unavailable
21
IDLING JET ''45''
55431007450
Unavailable
21
IDLING JET ''47.5''
55431007475
Unavailable
21
IDLING JET ''50''
55431007500
Unavailable
21
IDLING JET ''52.5''
55431007525
Unavailable
22
distance holder
55431073000
Unavailable
23
COMPRESSION SPRING ADJUSTER
55431017010
Unavailable
24
compressing spring
55431019010
Unavailable
25
plate
55431012000
Unavailable
30
JET NEEDLE ''6GAY69-74''
55431934000
Unavailable
30
JET NEEDLE ''6BFY42-71''
55431034000
Unavailable
30
JET NEEDLE ''6BFY42-72''
55431034100
Unavailable
30
JET NEEDLE ''6BFY42-73''
55431034200
Unavailable
30
JET NEEDLE ''6BFY42-74''
55431034300
Unavailable
30
JET NEEDLE ''6BFY42-75''
55431034400
Unavailable
30
JET NEEDLE ''6BFY42-76''
55431034500
Unavailable
30
JET NEEDLE ''6BFY43-71''
55431134000
Unavailable
30
JET NEEDLE ''6BFY43-72''
55431134100
Unavailable
30
JET NEEDLE ''6BFY43-73''
55431134200
Unavailable
30
JET NEEDLE ''6BFY43-74''
55431134300
Unavailable
30
JET NEEDLE ''6BFY43-75''
55431134400
Unavailable
30
JET NEEDLE ''6BFY43-76''
55431134500
Unavailable
30
JET NEEDLE ''6BFY44-71''
55431234000
Unavailable
30
JET NEEDLE ''6BFY44-72''
55431234100
Unavailable
30
JET NEEDLE ''6BFY44-73''
55431234200
Unavailable
30
JET NEEDLE ''6BFY44-74''
55431234300
Unavailable
30
JET NEEDLE ''6BFY44-75''
55431234400
Unavailable
30
JET NEEDLE ''6BFY44-76''
55431234500
Unavailable
99
Gasket set Mikuni
55431099000
Unavailable
4
Needle jet S-7
55431021700
Unavailable
4
NEEDLE JET ''R-8''
55431021000
Unavailable
26
Holder
55431010000
Unavailable
