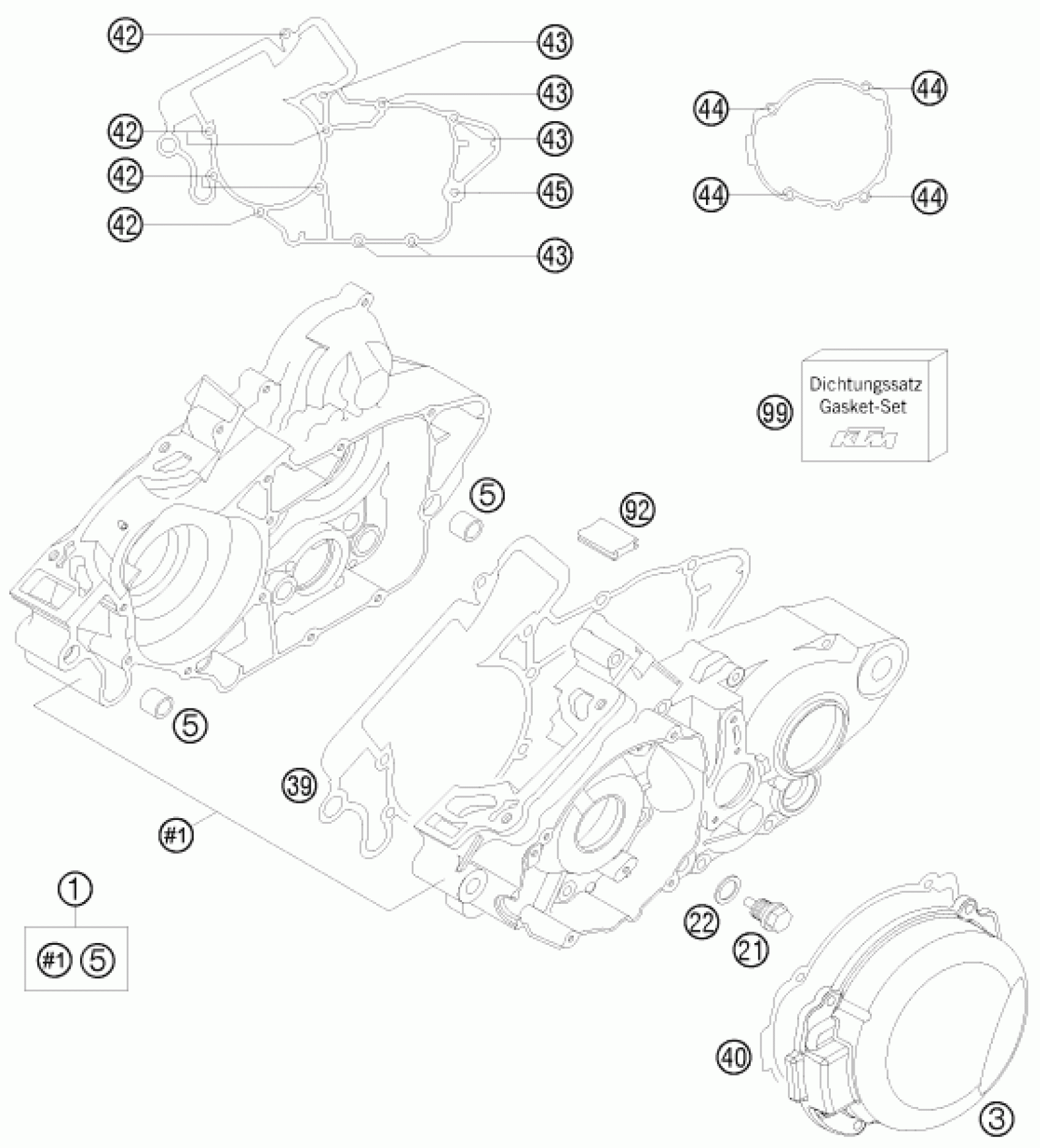

KTM 125 SXS 2008 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL W.TRAN.BEAR.07

51530000044

Unavailable

3

IGN COVER CARBON 125 06

SXS06125025

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

21

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

22

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

39

ENGINE CASE GASKET 0,5MM '98

50330039000

Unavailable

40

IGNITION COVER GASKET 2001

50330040100

Unavailable

42

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

43

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

44

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

45

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

92

OIL GUARD GROMMET 25X31 '98

50330092000

Unavailable

99

GASKET KIT 125 07

50330099200

Unavailable
