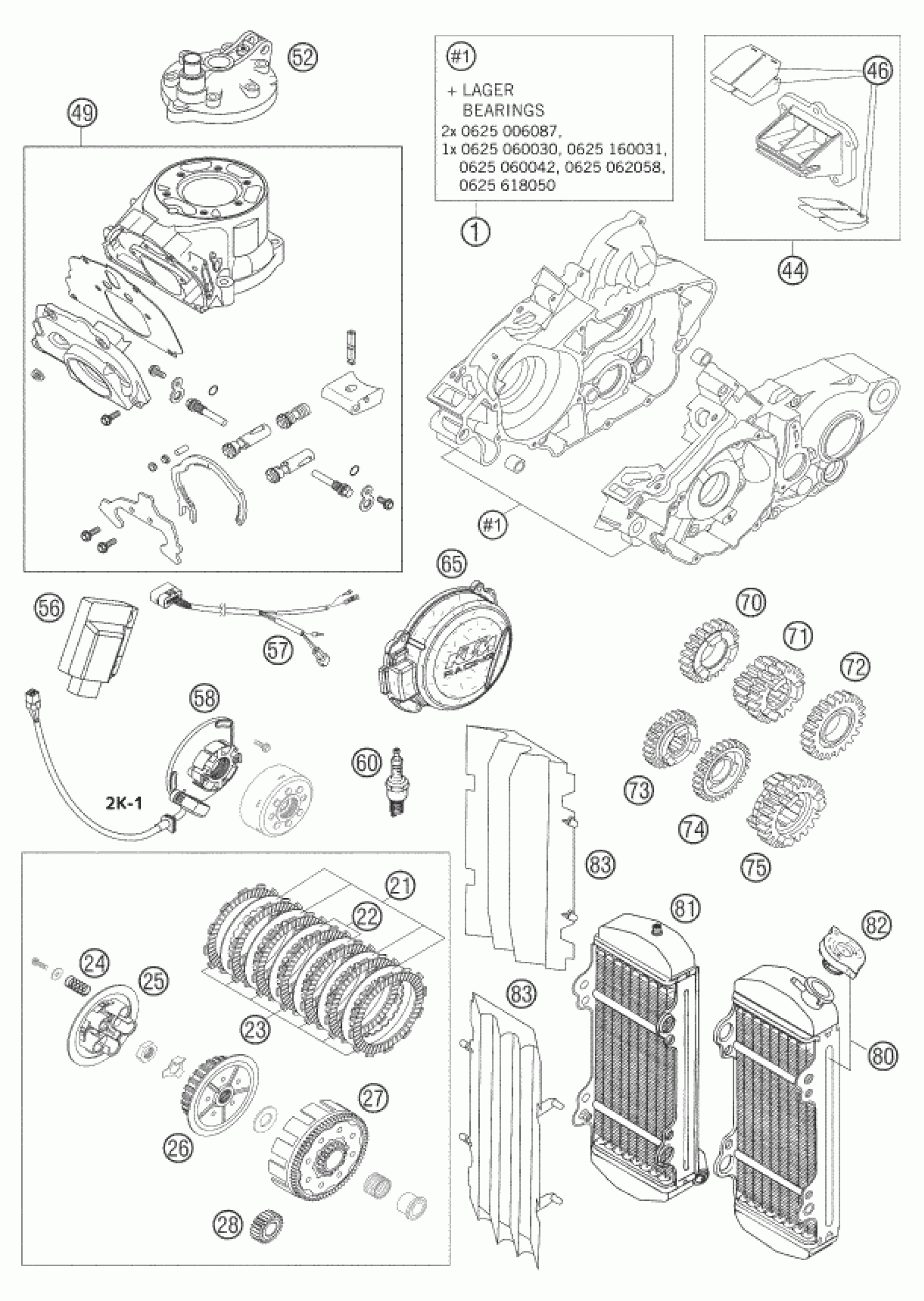

KTM 125 SXS 2005 Other Diagram
#
Description
Price
1
ENGINE CASE CPL M.TRAN.B 06
52330000644
Unavailable
21
INTERMEDI.DISC STEEL 1,5MM 06
50332010200
Unavailable
22
INTERMEDI. DISC STEEL 1,5MM'98
50332010100
Unavailable
23
ORGANIC DISK 3MM '98
50332011000
Unavailable
24
CLUTCH SPRING 2,3x39,5 125 06
50332005100
Unavailable
25
PRESSURE PLATE 125/200'98
50332003000
Unavailable
26
INNER CLUTCH HUB 125/200'98
50332002000
Unavailable
27
OUTER CLUTCH H.73-T 125/200
50332000073
Unavailable
28
PRIMARY PINION 23-T 125/200 06
50332023123
Unavailable
44
REED VALVE ASSY V-FORCE3 06
50330051444
Unavailable
46
RED VALVE-SET V-FORCE 3 06
50330052244
Unavailable
49
% CYLINDER 125 SXS 05
SXS05125001
Unavailable
52
CYLINDER HEAD 125 SXS 05
SXS05125003
Unavailable
56
CDI UNIT 125 SX 2005
50339031500
Unavailable
57
WIRING HARNESS FOR CDI 2-ST05
54839032000
Unavailable
58
STATOR KOKUSAN 2K-1 2006
54839004000
Unavailable
60
SPARK PLUG SXS 125 02
SXS02125071
Unavailable
65
*IGNITION COVER CARBON 125 03
SXS03125025
Unavailable
70
IDLE GEAR 5.G. 5S19H SX 06
50333007100
Unavailable
71
SLIDING GEAR 3./4. G. SX 06
50333008200
Unavailable
72
IDLE GEAR 6TH G. 6S22H SX 06
50333009500
Unavailable
73
SLIDING GEAR 5TH G.5S23H SX 06
50333012100
Unavailable
74
IDLE GEAR 4TH G. 4S28 SX 06
50333004100
Unavailable
75
SLIDING GEAR 6TH G. 6S24 SX 06
50333005600
Unavailable
80
FACTORY WIDE RADIATOR LEFT
SXS00125600
Unavailable
81
FACTORY WIDE RADIATOR RT
SXS00125601
Unavailable
82
RADIATOR CAP SMALL 20,3 PSI
58035016000
Unavailable
83
RADIATOR PROTECTION ORANGE 03
5903504000004
Unavailable
