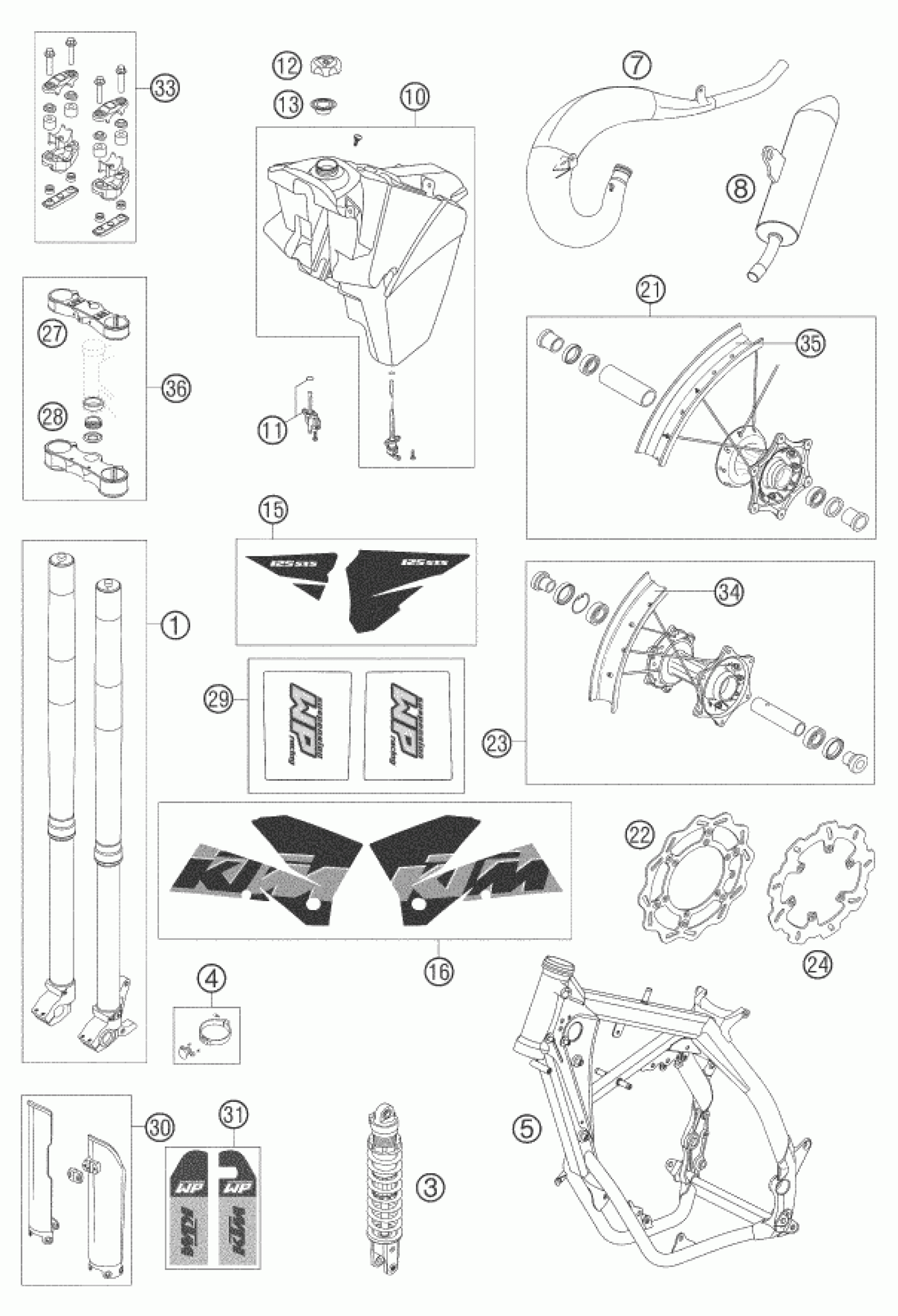

KTM 125 SXS 2005 NEW PARTS Diagram

#

Description
Price

4

FACTORY START 05

SXS05540100

Unavailable

5

FRAME 125 SXS ''BD05''

SXS05125550

Unavailable

7

SILENCER 125 SXS

SXS05125501

Unavailable

8

SILENCER 125 SXS 04

SXS04125551

Unavailable

10

FUEL TANK CPL. 9L 03

5030711320044

Unavailable

11

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

12

SXS FUEL TANK CAP

SXS03540700

Unavailable

13

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

15

DISPLACEME. STICKER 125 SXS 05

50308191700

Unavailable

16

SPOILER DECAL SXS 05

SXS05125950

Unavailable

21

FRONT WHEEL CPL. 1,6X21''EXCEL

5480900134430

Unavailable

22

FRONT WAVE BRAKE DISC D=260MM

54809060300

Unavailable

23

REAR WHEEL CPL.2,15X19 EXCEL

5481000154430

Unavailable

24

WAVE BRAKE DISC REAR D=220 MM

54810060200

Unavailable

27

TOP TRIPLE CLAMP 54MM 05

5940103401988

Unavailable

28

BOTTOM TRIPLE CLAMP D=60MM 05

5940103101988

Unavailable

29

STICKER FR.FORK WP TRANSP.

52000026

Unavailable

30

FORK PROT. L/S +R/S ORG 02

5900109400004

Unavailable

31

FORK PROT. STICKER-SET WP/KTM

59001094050

Unavailable

33

% PHDS HANDLEBAR SUPPORT

SXS05125200

Unavailable

34

REAR RIM 2,15X19''EXCELAL4BLK

5461007010030

Unavailable

35

FRONTRIM 1,60X21''EXCELAL4 BLK

5460907010030

Unavailable

36

TRIPLE CLAMP 18-20MM OFFSET

5940109901988

Unavailable
