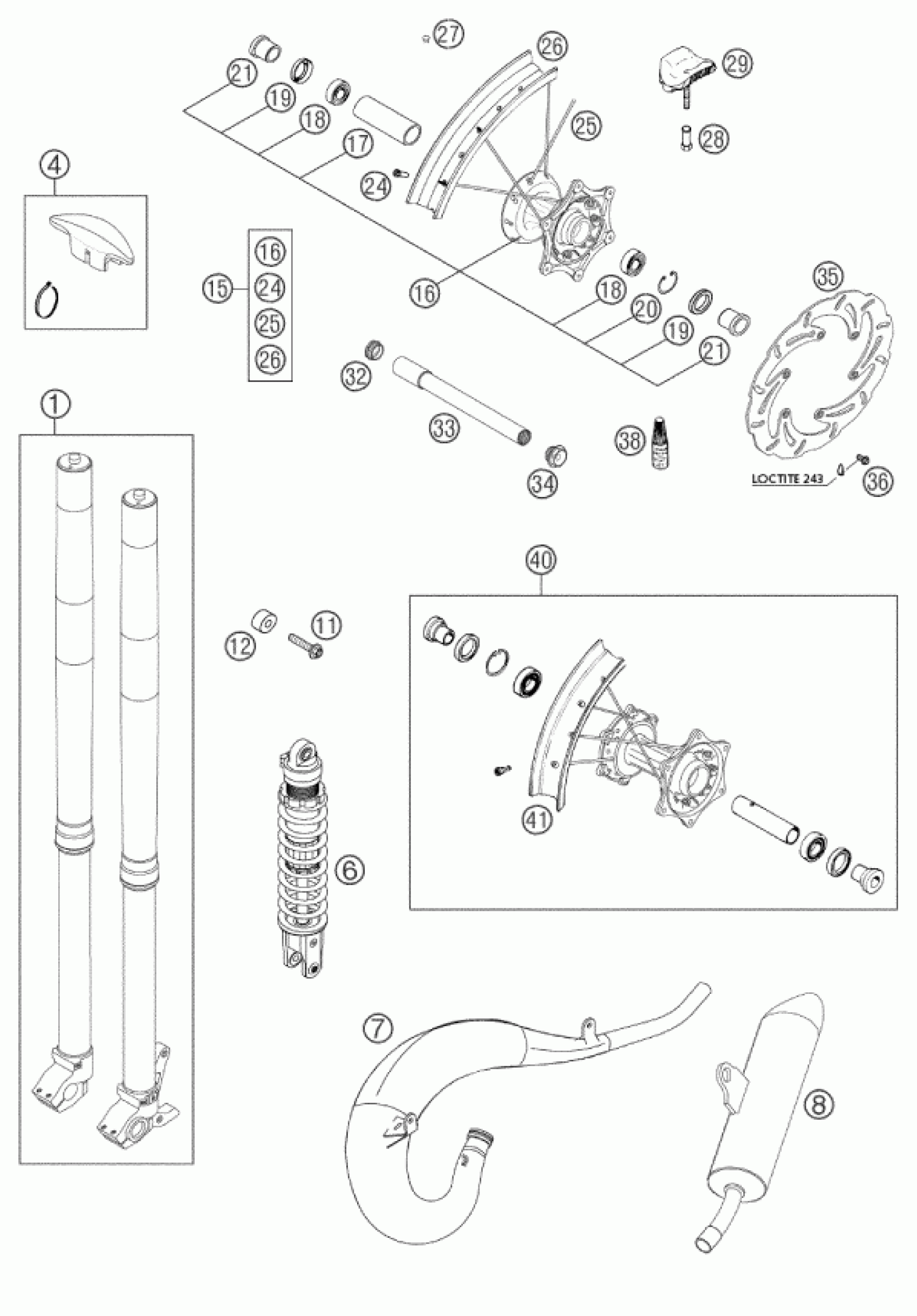

KTM 125 SXS 2002 NEW PARTS Diagram

#

Description
Price

1

* FRONT FORK WP D=48MM MA/PA

1418W720

Unavailable

4

HANDLEBAR PAD 05

59002002000

Unavailable

6

* SHOCK ABSORBER PDS 125 SXS

1218W749

Unavailable

7

EXHAUST PIPE 125 SXS 2001

SXS00125501

Unavailable

8

* SILENCER 125 SXS 2001

SXS00125551

Unavailable

11

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

12

SPACER ALU 6,3X16X10 01

50307113150

Unavailable

15

* FRONT WHEEL 1,6X21"DID SCHW.

5480900104430

Unavailable

16

FRONT HUB CPL. SX SILVER 03

5480901004491

Unavailable

17

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

18

Grooved ball bearing 6906

0625069068

Unavailable

19

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

20

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

21

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

24

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

25

SPOKE M4,5X230-15G 21'' DDE

50309072230

Unavailable

26

FRONT RIM U-SHAPE 1,6X21"DID

5900907000030

Unavailable

27

PLUG FOR RIM

55003135000

Unavailable

28

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

29

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

32

PLUG BUSHING WS=27 03

54809081050

Unavailable

33

WH SPIN.FR. D=26 M24X1,5 03

54809081000

Unavailable

34

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

35

BRAKE DISC FRONT D=260MM 03

54809060000

Unavailable

36

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

38

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

40

* REAR WHEEL 2,15X19" DID BLAC

59010001144

Unavailable

41

* RIM REAR U-SHAPE 2,15X19"DID

5901007010030

Unavailable
