Partiron

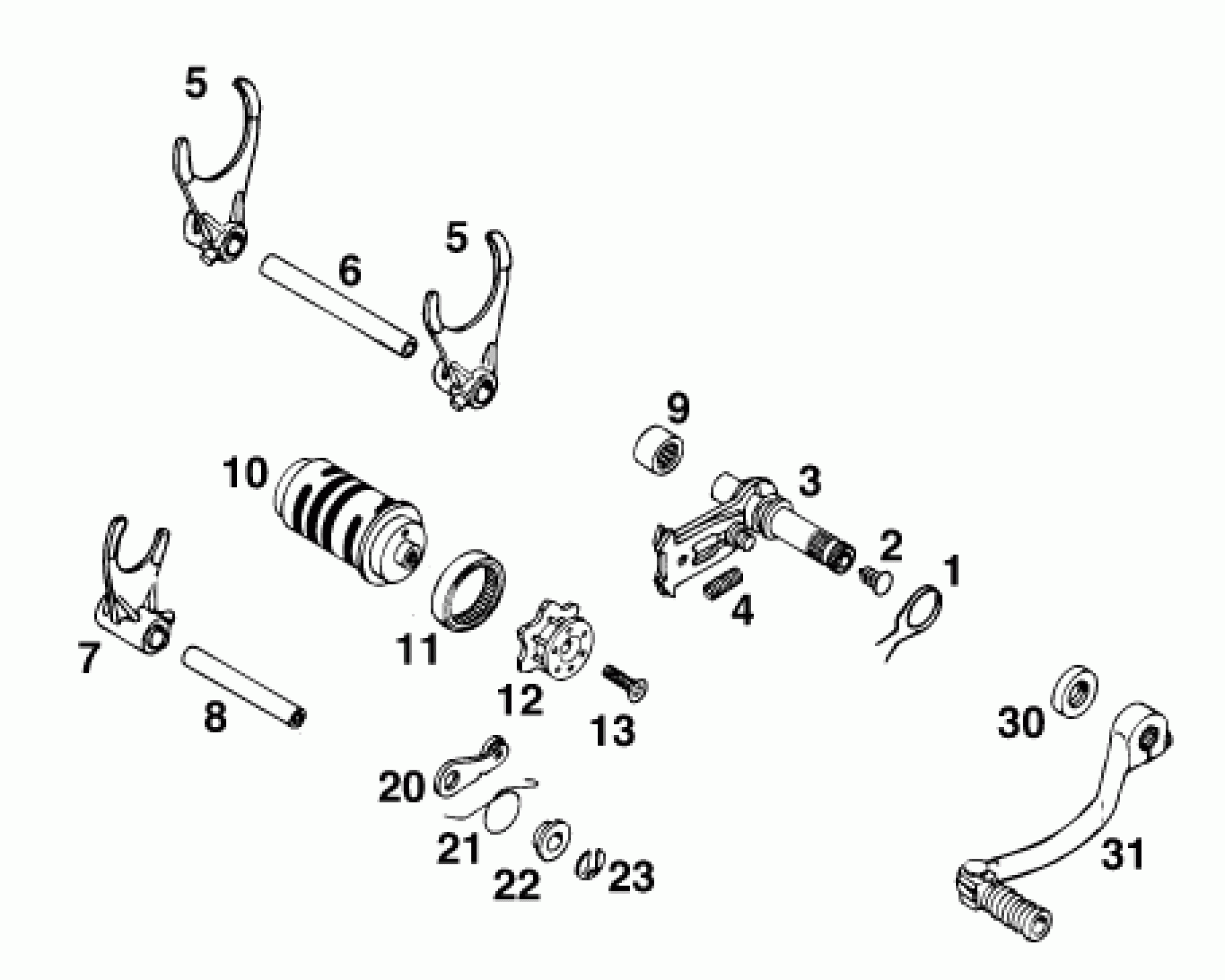

KTM 125 SX MARZ/ÖHL <1995> SHIFTING MECHANISM Diagram

#

Description
Price

1

RETURN SPRING

50134014000

Unavailable

2

PLASTIC CAP SFL10

54403135000

Unavailable

3

SHIFT SHAFT CPL

50234006000

Unavailable

4

PRESSURE SPRING

49034009000

Unavailable

5

SHIFTING FORK FORGED 1/3,2/4

50234002000

Unavailable

6

SHIFTING RAIL1/3,2/4 5X10X88,2

50234004000

Unavailable

7

SHIFTING FORK FORGED 5/6

50234001000

Unavailable

8

SHIFTING RAIL 5/6 5X10X72,3

50234003000

Unavailable

9

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

10

SHIFT ROLLER '88

50234012500

Unavailable

11

NEEDLE BEARING 30X37X7,5

50134026100

Unavailable

12

LOCKING PIECE

50234015000

Unavailable

13

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

20

LOCKING LEVER 125/IV

50234024044

Unavailable

21

LOCKING LEVER SPRING

50234023000

Unavailable

22

SPRING BUSHING

50234020000

Unavailable

23

retaining washer DIN 6799 - 8

0799080000

Unavailable

30

radial shaft seal 14x24x6 B

0760142460

Unavailable

31

SHIFT LEVER CPL 125 '92

50234022200

Unavailable
