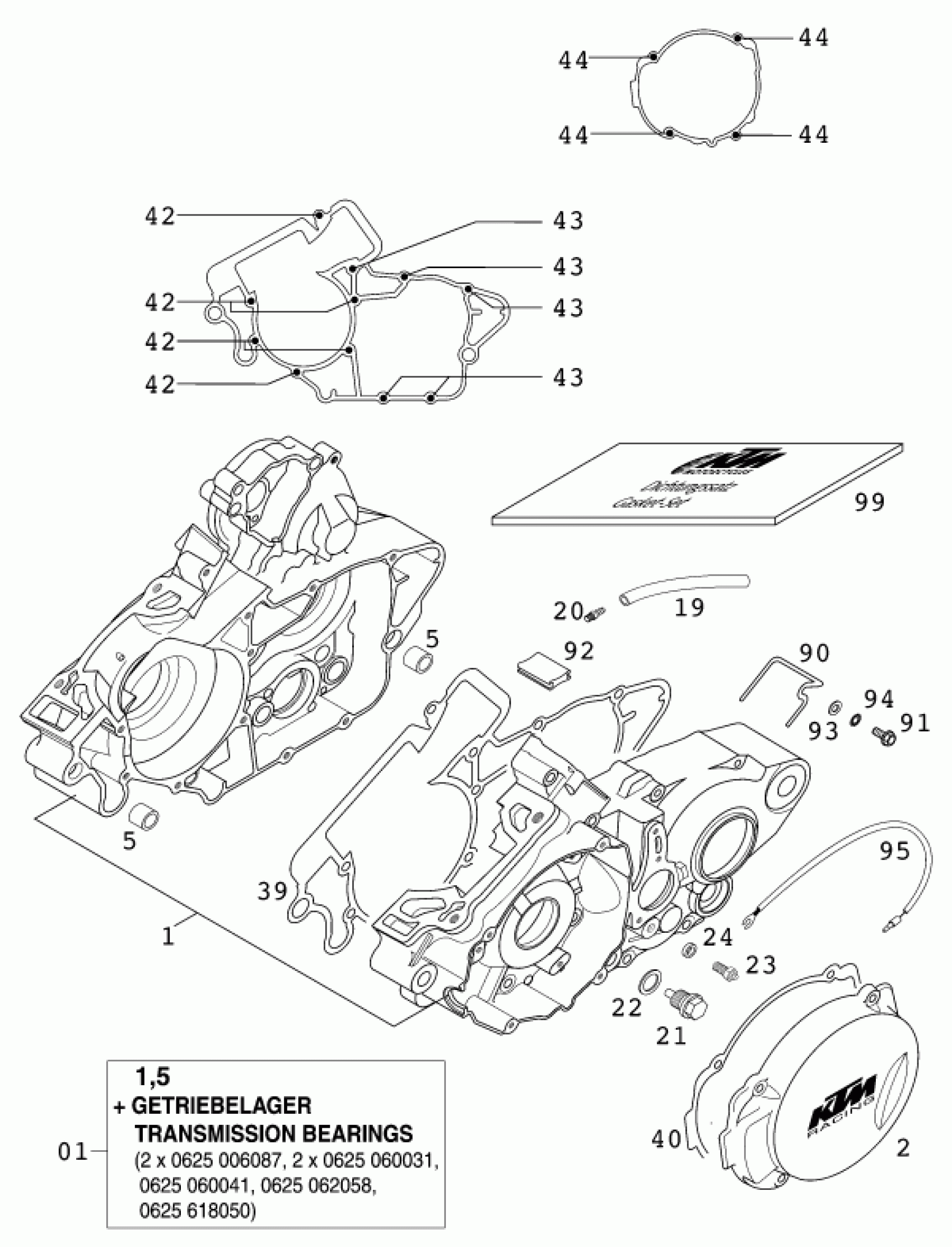

KTM 125 SUPERMOTO 100 2001 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TR.BEAR.2000

51230000044

Unavailable

2

IGNITION COVER 125/200 '98

50330002000

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

20

VACUUM CONNECTION M 6X1

58336020090

Unavailable

21

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

22

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

23

CONTACT SCREW M10 STEEL '98

58011081100

Unavailable

24

SEAL RING 10,2X16X5

51211081100

Unavailable

39

ENGINE CASE GASKET 0,5MM '98

50330039000

Unavailable

40

IGNITION COVER GASKET 1MM'98

50330040000

Unavailable

42

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

43

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

44

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

90

BRACKET FOR BREATHERTUBE

50330090000

Unavailable

91

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

92

OIL GUARD GROMMET 25X31 '98

50330092000

Unavailable

93

WASHER DIN0125-A 5,3

0125050003

Unavailable

94

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

95

TRANSMITTER CABLE 3RD GEAR EXE

51211080000

Unavailable

99

GASKET SET 125-200 '98-'05

50330099000

Unavailable
