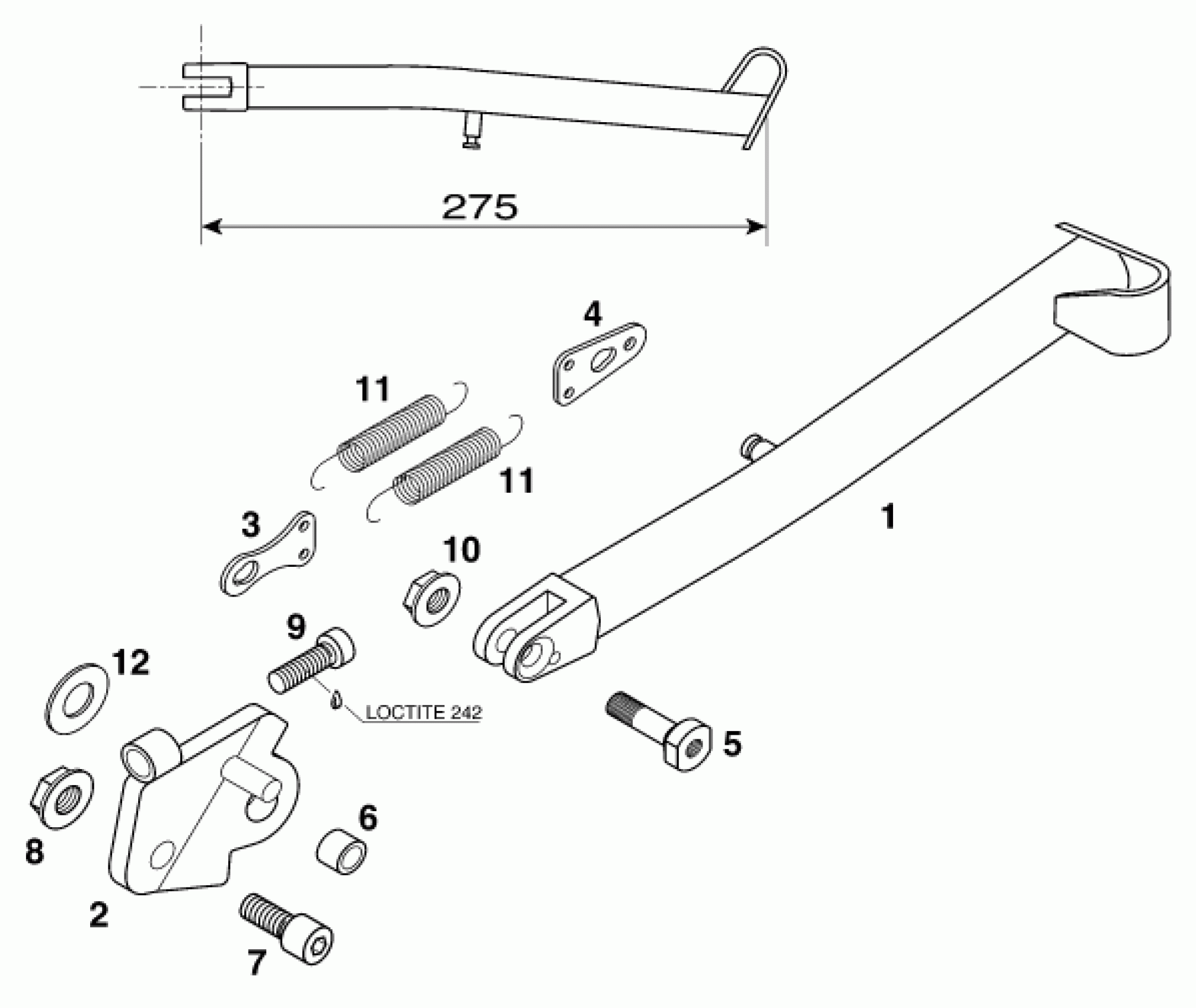

KTM 125 STING '98 <1998> SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDE STAND CPL. 125 STING '97

51103023100

Unavailable

2

SIDE STAND BRACKET STING'97

51103026150

Unavailable

3

*SPRING SHACKLE TOP FOR SIDEST

51103023054

Unavailable

4

SPRING SHACKLE BELOW F.SIDEST.

51103023055

Unavailable

5

SPECIAL SCREW M8 FOR SIDESTAND

51103027000

Unavailable

6

BUSHING 8,2 X 12 X 10

57103225000

$4.24

7

AH SCREW DIN0912-M10X22

0912100223

Unavailable

8

flanged hex nut DIN 6927 M10 W

49009082000

$3.39

9

0984080253

Unavailable

10

54310086000

Unavailable

11

STAND SPRING SHORT

10003021000

$9.44

12

WASHER 12,5 X 25 X 1,5

54603025000

Unavailable
