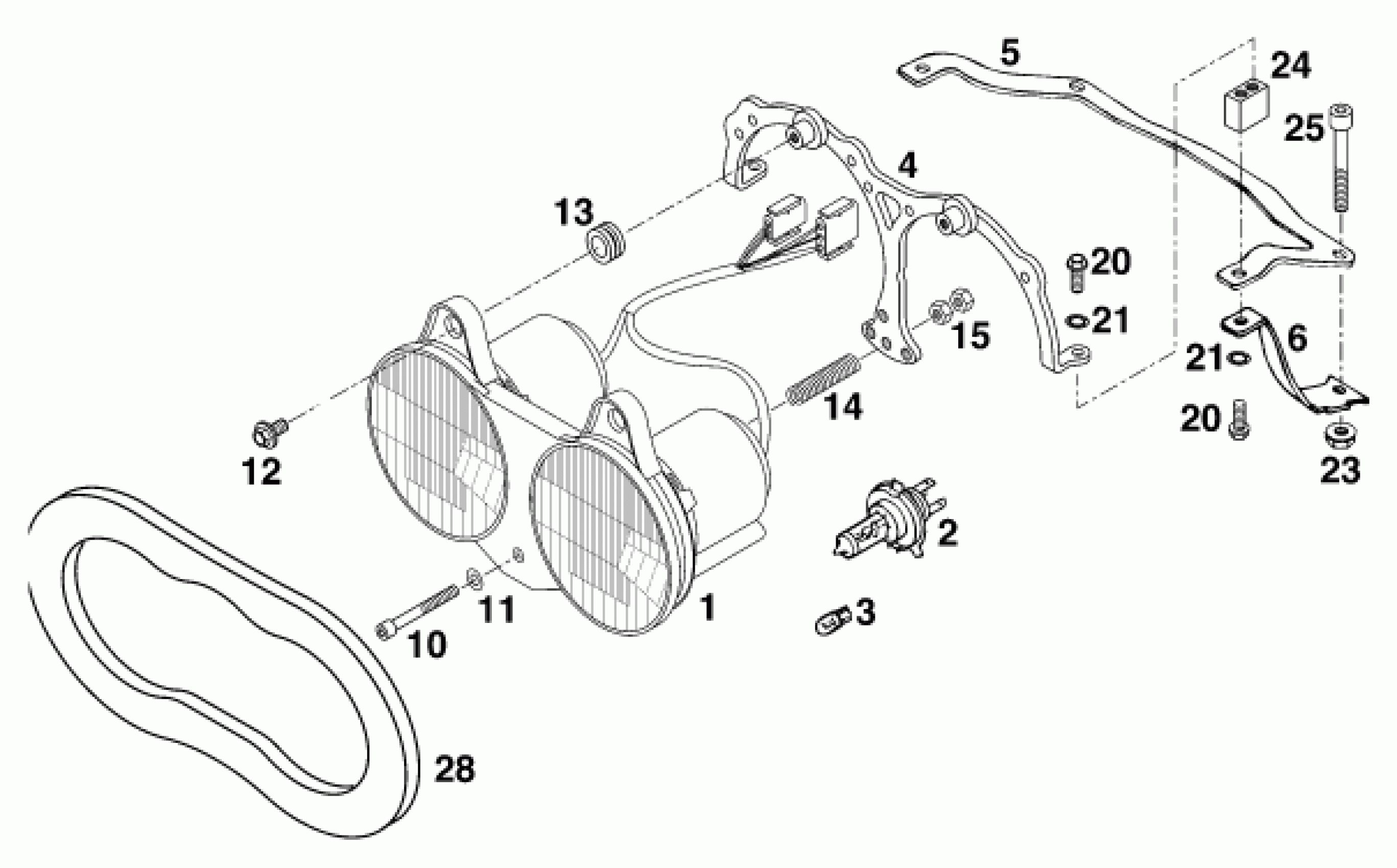

KTM 125 STING '98 <1998> LIGHTING SYSTEM Diagram

#

Description

Price

0

HEADLIGHT SUPPORT R/S BOTTOM

58311147001

Unavailable

1

HEAD LIGHT TRIOM CPL. '96

58414001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

3

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

4

HEADLIGHT CARRIER TRIOM '96

58311045100

Unavailable

5

HEADLIGHT SUPPORT TOP

58311047000

Unavailable

6

HEADLIGHT SUPPORT L/S BOTTOM

58311147000

Unavailable

10

* AH SCREW DIN0912-M 5X45

0912050453

Unavailable

11

WASHER DIN0125-A 5,3

0125050003

$1.69

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

13

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

$1.69

14

SPRING 9 X 11 X 39 FOR TRIOM

58414020000

Unavailable

15

HEXAGON NUT DIN0934-M 5

0934050003

$2.54

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

21

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.69

23

SELF LOCKING NUT M6

56509064000

Unavailable

24

SPACER TUBE M6X15 FOR TRIOM

58311015000

Unavailable

25

AH SCREW DIN0912-M 6X50

0912060503

Unavailable

28

HEAD LIGHT COVER 10MM TRIOM

58311014000

Unavailable
