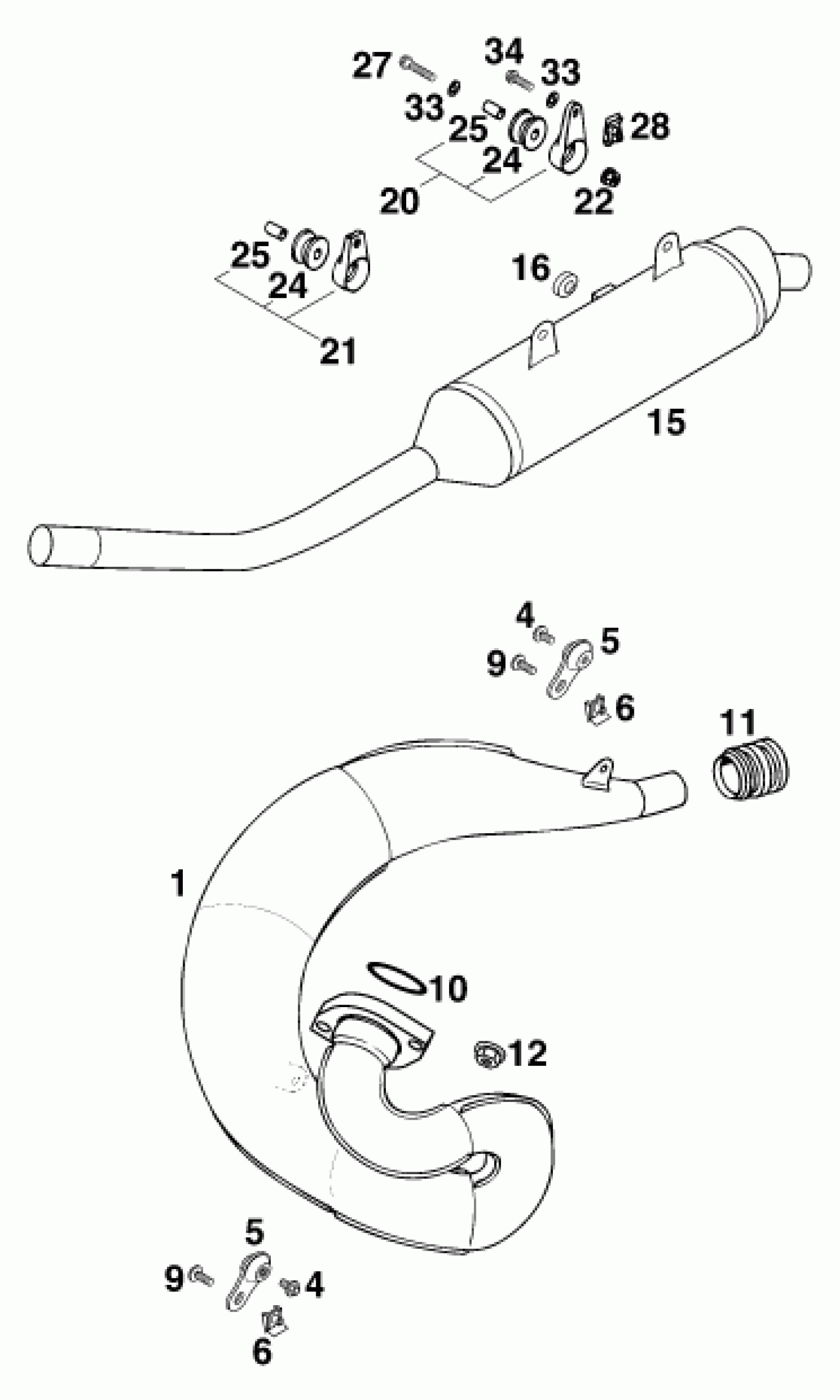

KTM 125 STING '98 <1998> EXHAUST SYSTEM Diagram

#

Description

Price

1

EXH.PIPE "KTM 511 8" WITH CAT.

51105009400

Unavailable

1

EXH.PIPE"KTM 511 0"WITHOUT CAT

51105009500

Unavailable

1

EXH.PIPE "KTM 511 1" WITH CAT.

51105009600

Unavailable

4

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

5

Silent block for exhaust pipe

50305012000

$19.91

6

clip nut M6

54603048100

$4.24

9

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

GASKET EXHAUST FLANGE

51105005000

Unavailable

11

SILICON SLEEVE D=25/27MM

54605157000

$32.53

12

54310086000

Unavailable

15

SILENCER "KTM 511 E"

51105080100

Unavailable

16

RUBBER BUFFER

54308042000

$3.39

20

SIL. BRACKET CPL. LONG SILICON

54305065244

Unavailable

21

SIL. BRACKET CPL.SHORT SILICON

54305065344

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

24

damp. component silicone grey

54305068100

$8.31

25

BUSHING 7X12X15,4

54305069000

$4.24

27

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

28

clip nut M6

54603048100

$4.24

33

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

34

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable
