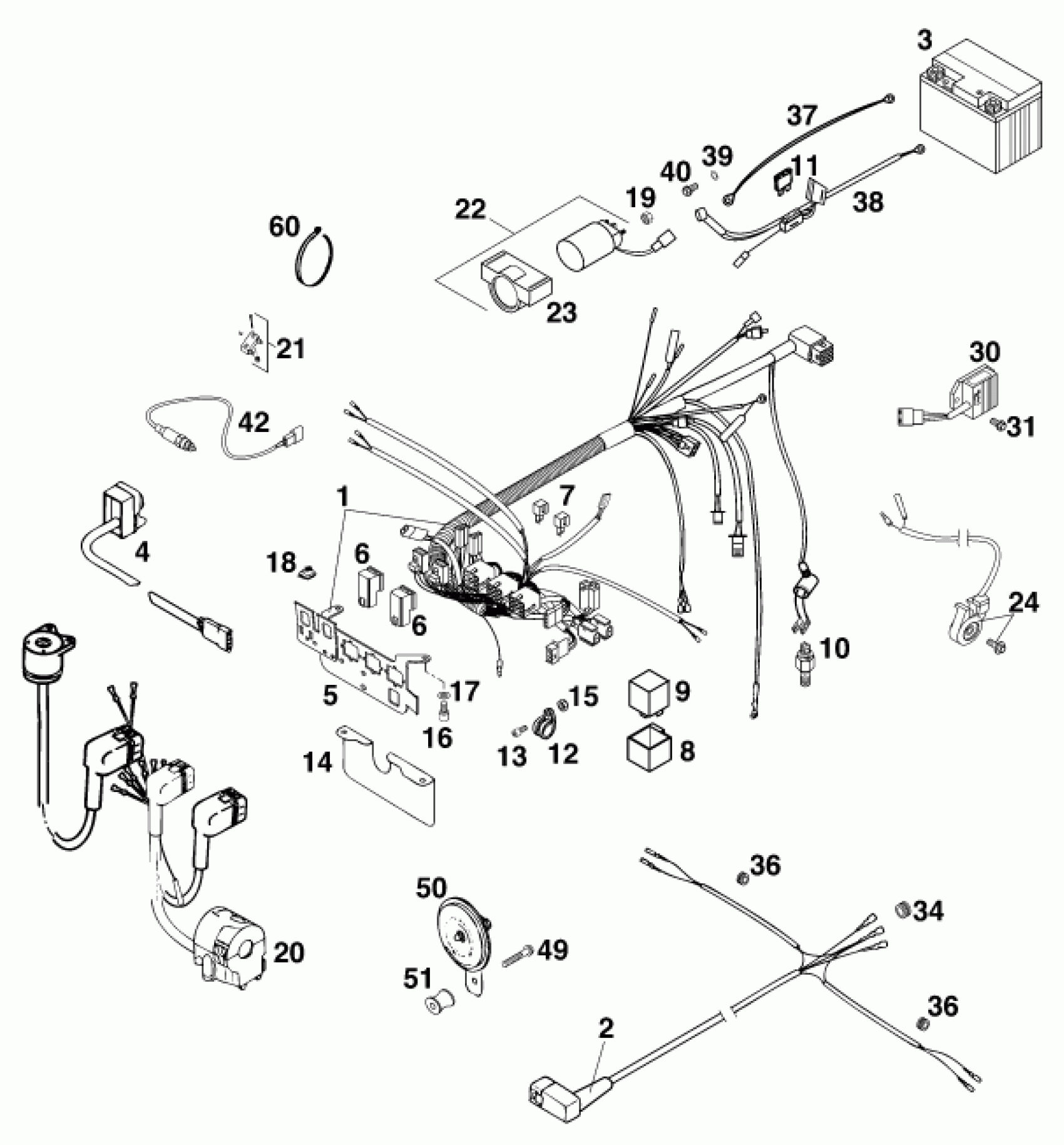

KTM 125 STING/80 '98 <1998> WIRING HARNESS Diagram

#

Description

Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

WIRING HARNESS FRONT STING'97

51111075300

Unavailable

2

WIRING HARNESS REAR 125 LC2'96

51111076000

Unavailable

3

BATTERY 12V 3AH YUASA

51111008000

Unavailable

4

START-STOP SWITCH

58411074000

Unavailable

5

BRACKET KPL. E-START '97

58411083000

Unavailable

6

STARTER RELAY '96

58411057000

Unavailable

7

DIODE S3H-15 97

58411096100

Unavailable

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

9

FLASHER UNIT HELLA BRK '96

44611207100

Unavailable

10

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

11

FUSE 10 A

58011109010

Unavailable

12

CLAMP RSGU 15/12

49007439000

Unavailable

13

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

14

COVER CONNECTOR SUPPORT '93

58311083051

Unavailable

15

Self locking nut DIN 985 M5

0985050003

Unavailable

16

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

17

WASHER DIN0125-A 6,4

0125060003

Unavailable

18

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

LIGHT SWITCH KPL. CEV '94

58311570000

Unavailable

21

BRAKE LIGHT SWITCH CPL. FRONT

58313021100

Unavailable

22

STARTER RELAY WITH HOLD.RUBBER

58411058000

Unavailable

23

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

24

SIDE STAND SWITCH CPL. '97

58411045000

Unavailable

30

REGULATOR-RECTIFIER 12V '96

51111034000

Unavailable

31

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

34

rubber grommet D=8mm open

31008060000

Unavailable

36

RUBBER SLEEVE D=6MM OPEN

57511027000

Unavailable

37

BATTERY CABLE (GROUNDCONNECT.)

51111097000

Unavailable

38

BATTERY CABLE WITH FUSE

51111059000

Unavailable

39

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

40

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

42

CLUTCH SWITCH '96

58411049000

Unavailable

49

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

50

DC HORN 12V NIKKO

54511060100

Unavailable

51

SPACER BUSHING 22X18X12

51111061000

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
