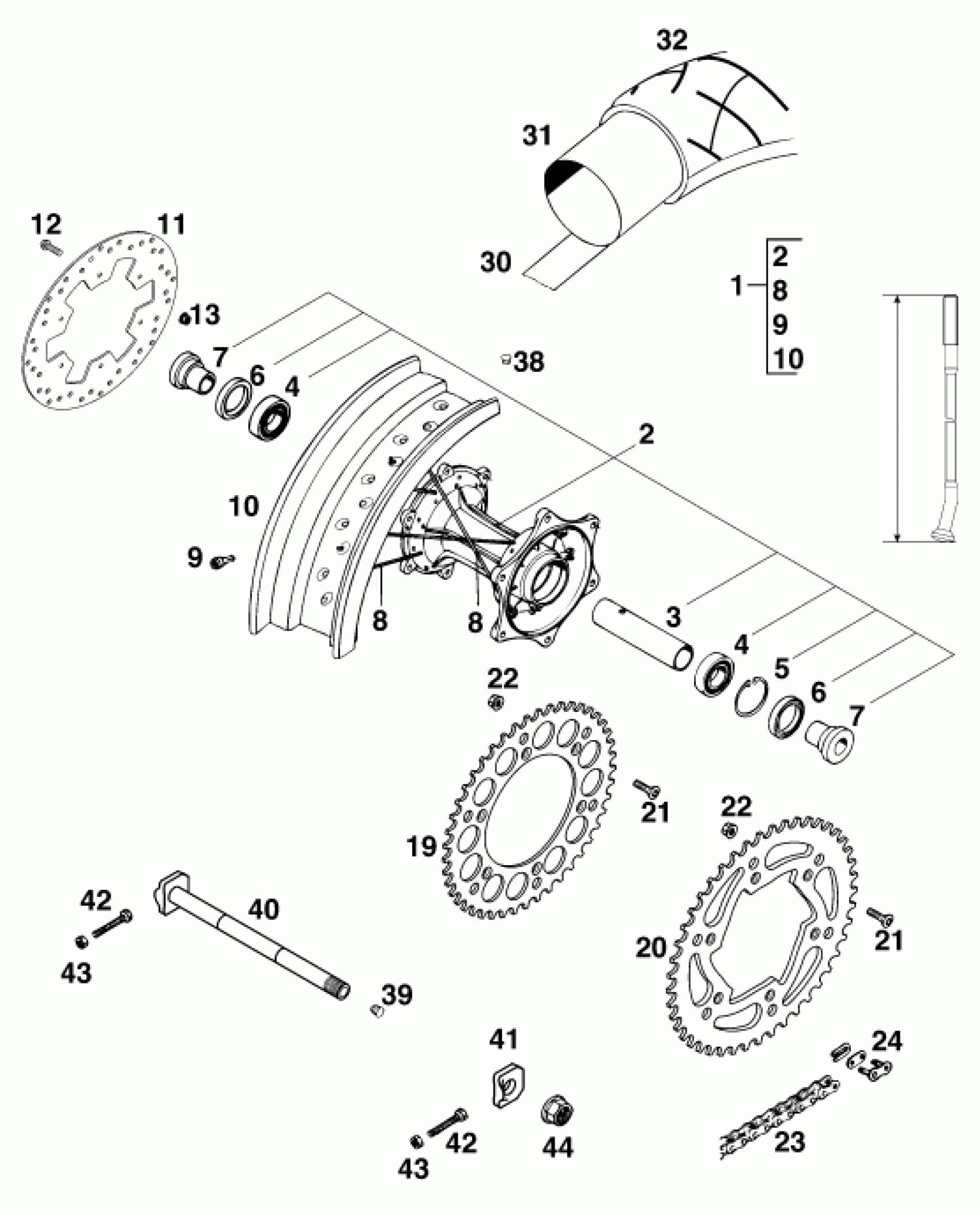

KTM 125 STING/80 '98 <1998> REAR WHEEL Diagram

#

Description

Price

1

51110001144

Unavailable

2

5461001004490

Unavailable

3

BUSHING SPACER TUBE 121,5 MM

56510011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

BUSHING FOR HUB

54610016000

Unavailable

8

SPOKE M5X177-13,5G 17''

58309171100

Unavailable

9

STEEL NIPPLE M5

56509072000

Unavailable

10

REAR RIM 3,50X17'' STING'9

51110070100

Unavailable

11

REAR BRAKE DISC 220MM '96

51110060000

Unavailable

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

13

SELF LOCKING NUT M6

56509064000

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

51110065000

Unavailable

24

MASTER LINK CZ O-RING CHAIN

51110066000

Unavailable

30

51110073200

Unavailable

31

TUBE 17" STING'97

51110075200

Unavailable

32

51110074100

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

Unavailable

41

CHAIN TENSIONER '95

56510084100

Unavailable

42

HH SCREW M8X40 WS=10

50203030090

Unavailable

43

Hexagon nut DIN934 M8

0934080003

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable
