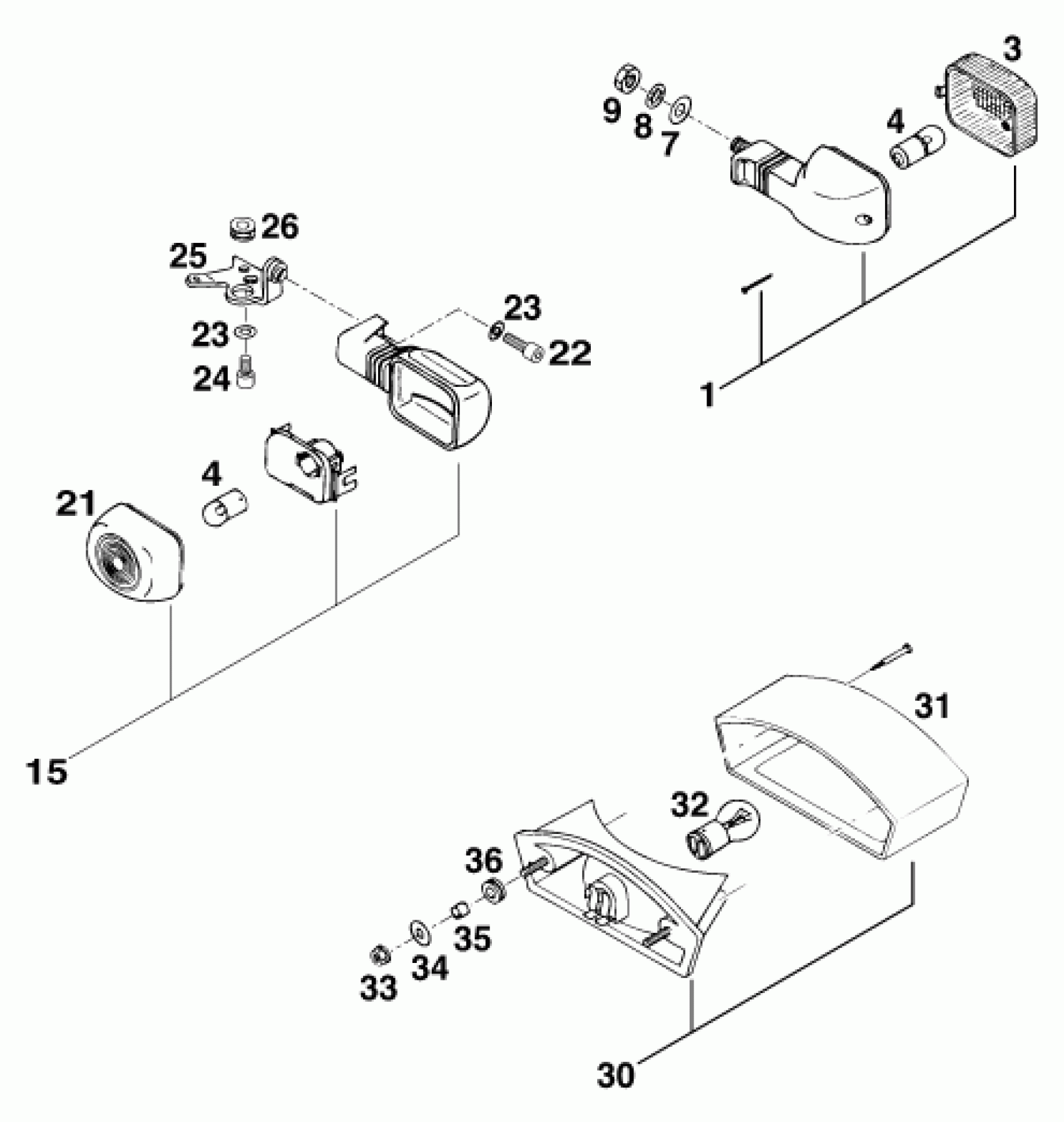

KTM 125 STING/100 '97 <1997> LIGHTING SYSTEM Diagram

#

Description

Price

0

FLASHER REAR L/S / FRONT R/S

58311112000

Unavailable

0

FLASHER SUPPORT R/S DUKE'94

58311121100

Unavailable

1

FLASHER FRONT L/S / REAR R/S

58311012000

Unavailable

3

FLASHER LENS L/S AND R/S

58311013000

Unavailable

4

BULB 12V 10W (BA15S)

44111015100

$3.39

7

washer DIN 125 A 10.5

0125100003

$2.54

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.69

9

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

15

FLASHER FRONT L/S - FRONT R/S

50211412000

Unavailable

21

LENS FOR FLASHER '93

50211413000

Unavailable

22

AH SCREW DIN0912-M 6X20

0912060203

$2.54

23

WASHER DIN0125-A 6,4

0125060003

$1.69

24

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

25

FLASHER SUPPORT L/S DUKE'94

58311021100

Unavailable

26

rubber grommet D=8mm open

31008060000

$2.54

30

REAR LIGHT CPL. CEV 358 '93

58311040000

Unavailable

31

LENS '93

58311041000

Unavailable

32

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

$2.54

34

Washer DIN9021-A 6.4

0021060003

$2.54

35

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.54

36

rubber grommet D=8mm open

31008060000

$2.54
