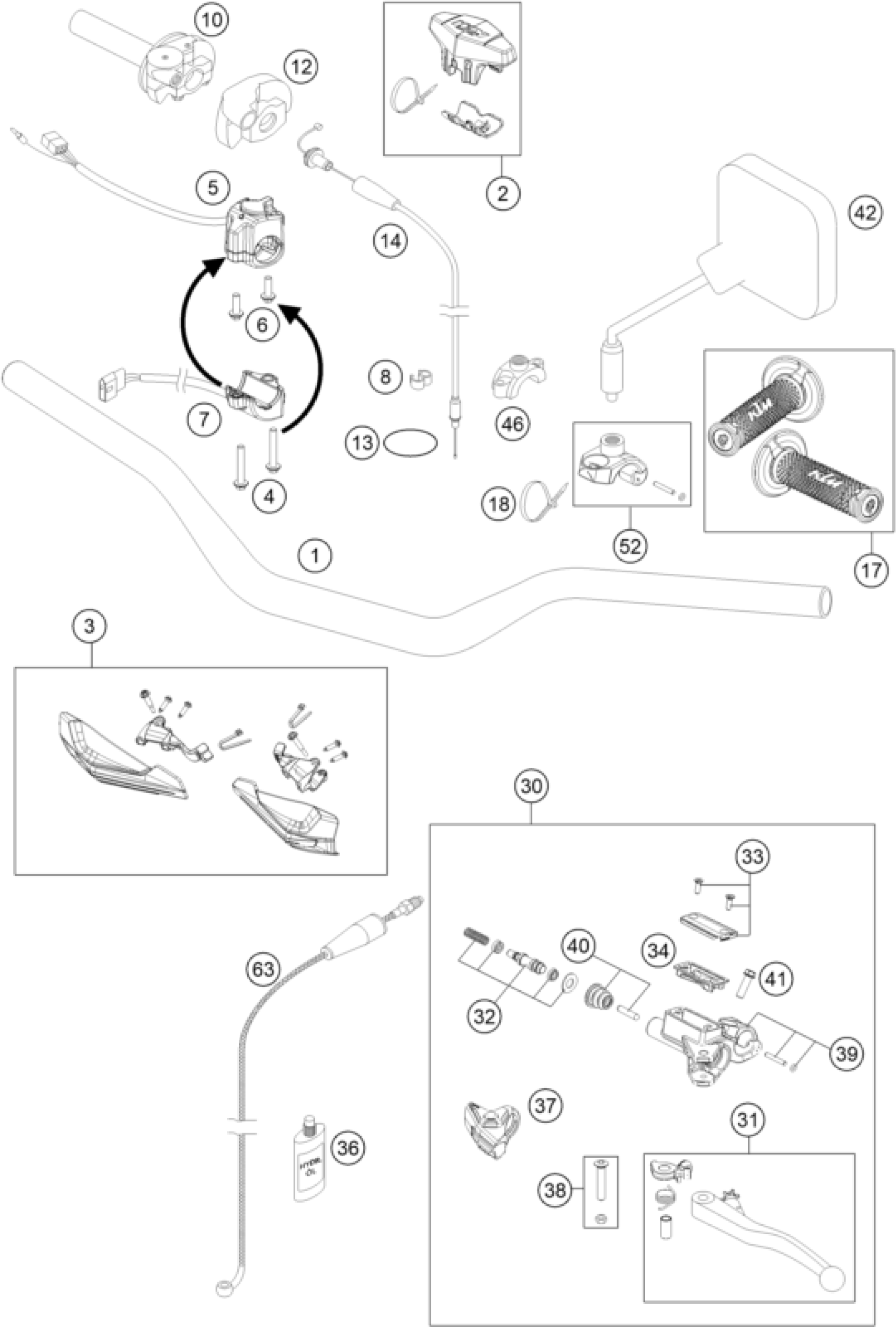

KTM 125 EXC SIX-DAYS 2016 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM SX/EXC BLACK

5480200130030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

HAND GUARDS CPL. L/S+R/S WHITE

7770217900028

Unavailable

4

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

5

LIGHT SWITCH

78111070000

Unavailable

6

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

7

FLASHER SWITCH

78111029000

Unavailable

8

CLIP 5/7 MM 06

60111094000

Unavailable

10

THROTTLE GRIP CPL. 2ST. 13

51502010200

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

13

O-RING 49,00X2,50 NBR

0770049025

Unavailable

14

THROTTLE CABLE 2-ST. 2014

51502091200

Unavailable

17

GRIP SET

78102021000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

30

MASTER CYLINDER CPL. 9,5MM 09

50302030300

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

Unavailable

32

REP.KIT PISTON 9,5MM 09

50302032100

Unavailable

33

COVER HYDR. CLUTCH CPL. 09

50302033200

Unavailable

34

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH 13

76502037000

Unavailable

38

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

39

CLAMP, CYL. PIN, O-RING

83013005000

Unavailable

40

PUSH ROD CPL. 09

50302046000

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

42

Rear view mirror left

58012040000

Unavailable

42

Rear view mirror right

58012140000

Unavailable

46

Clamp for mirror

58012040150

Unavailable

52

CLAMP FOR MIRROR CPL. 09

50302044000

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

Unavailable
