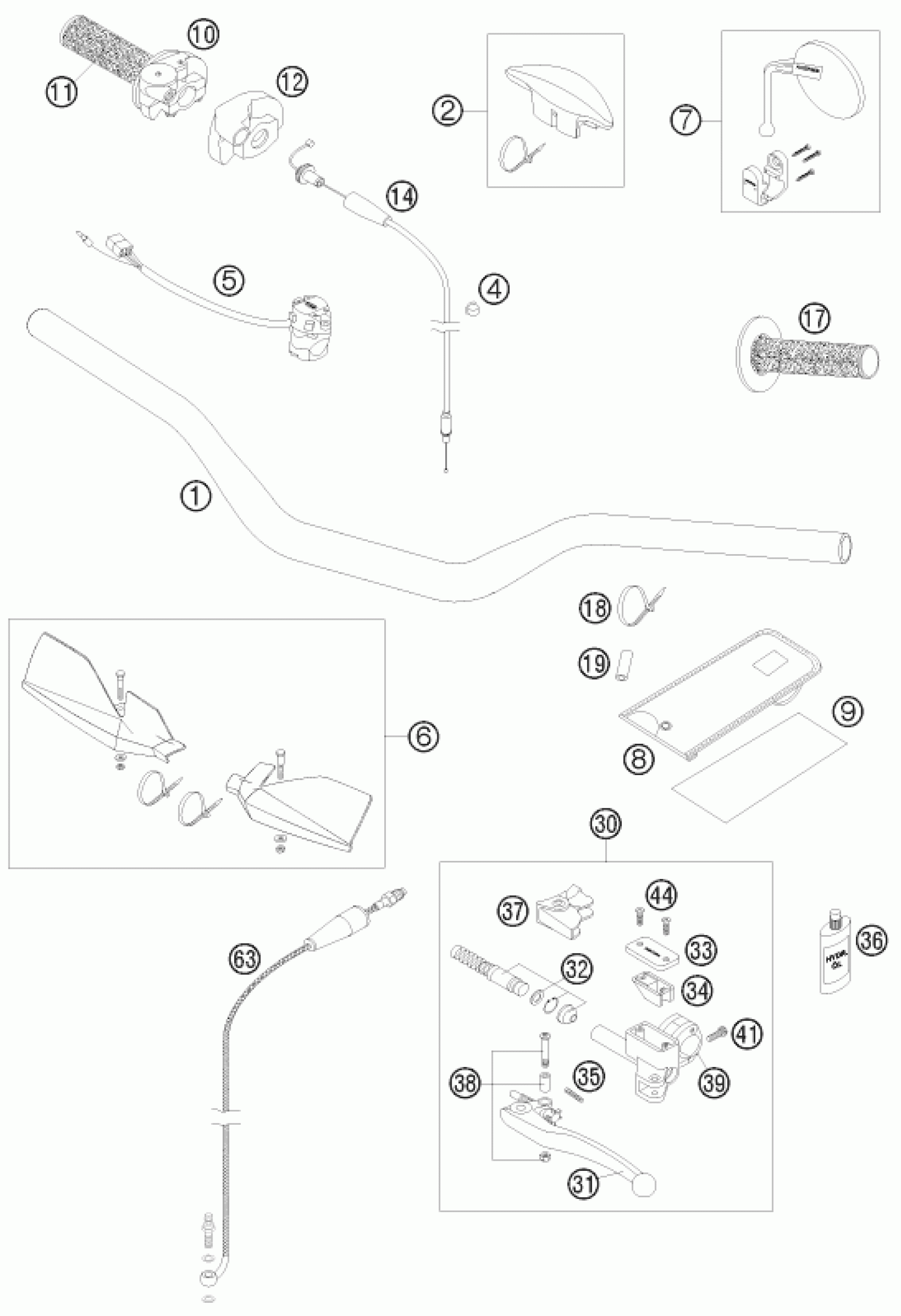

KTM 125 EXC SIX-DAYS 2008 HANDLEBAR, CONTROLS Diagram

#

Description
Price

5

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

8

TIMECARD HOLDER

54802001050

Unavailable

9

TIMECARD 100 PAGES

54802001051

Unavailable

1

HANDLEBAR NEKEN D=28MM EXC 07

5480200130017

Unavailable

4

WIRING HOLDER 16MM

57013072100

Unavailable

10

TH.TWIST CRIP CPL. W.O.CA. 04

54802010000

Unavailable

11

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

19

HOSE 7X11,5X15

78011016015

Unavailable

30

MASTER CYLINDER CPL. 9,5MM 04

50302030200

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

Unavailable

33

COVER HYD.CLUTCH 2T 2000

50302033100

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

Unavailable

2

HANDLEBAR PAD 05

59002002000

Unavailable

6

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

Unavailable

7

MIRROR L/S BLACK ACERBIS '97

5021204000030

Unavailable
